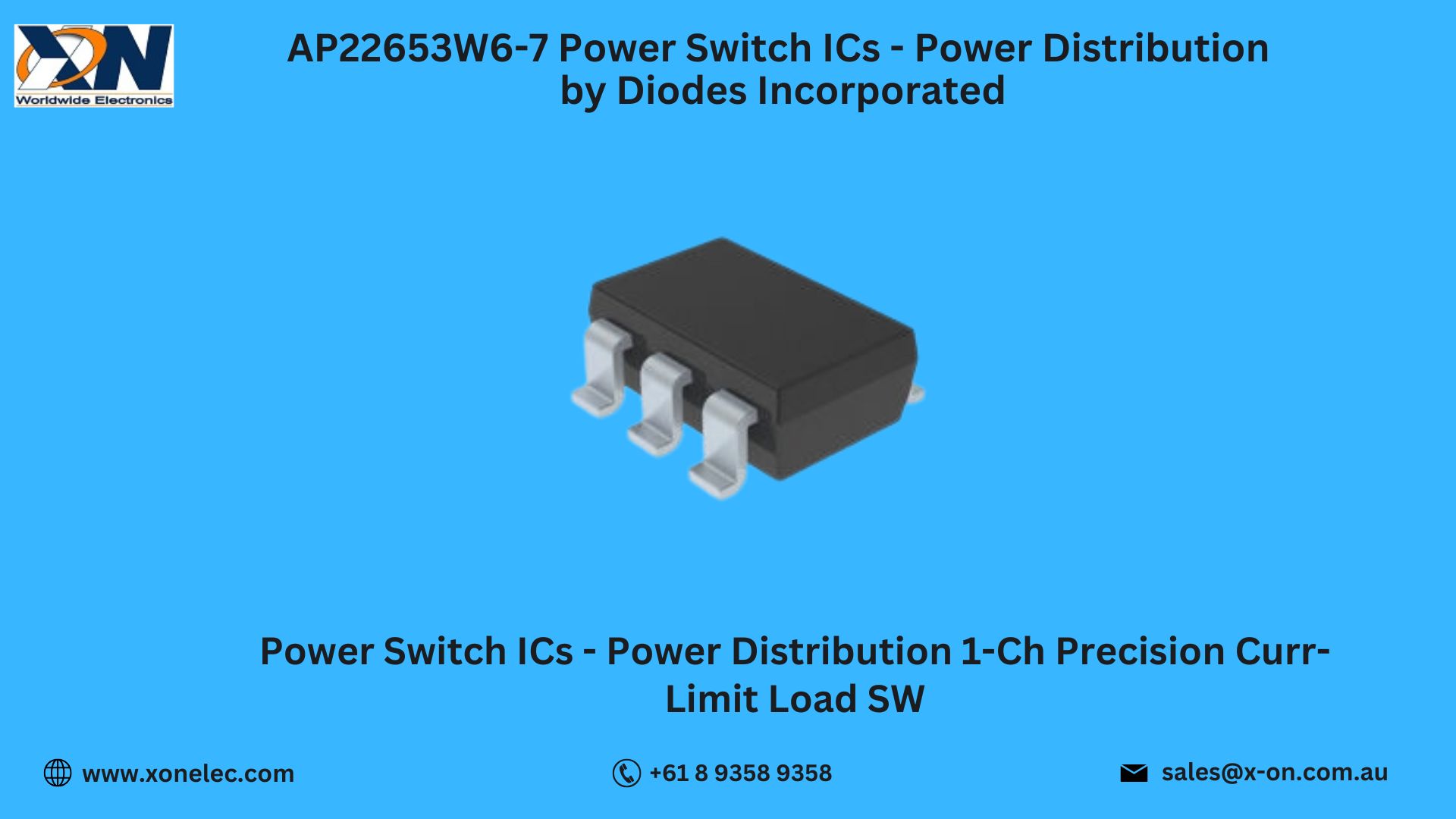

AP22653W6-7 – Smart Power Distribution Switch IC by Diodes Incorporated
The Power Switch ICs - Power Distribution AP22653W6-7 by Diodes Incorporated deliver robust protection and high-efficiency load switching for USB ports, embedded power systems, and general DC distribution. Designed for current-limited applications, this device protects downstream circuitry while maintaining fast and controlled switch performance.
In this blog, we’ll explore key technical specs, features, real-world applications, usage tips, and how to download the datasheet or purchase from Xon Electronics.
Technical Specifications of AP22653W6-7
-
Manufacturer: Diodes Incorporated
-
Part Number: AP22653W6-7
-
Type: Current-Limited Power Distribution Switch
-
Operating Voltage: 2.7V to 5.5V
-
Continuous Load Current: 2.5A
-
On-Resistance (Rds(on)): 70 mO (typ.)
-
Overcurrent Protection: Active
-
Fault Flag Output: Yes
-
Enable Pin: Active-High
-
Package: SOT-23-6
-
Category: ICs, Power Switch ICs - Power Distribution by Diodes Incorporated
The AP22653W6-7 Power Switch ICs - Power Distribution by Diodes Incorporated combine current limiting, thermal protection, and fast switching in a compact footprint ideal for space-constrained boards.
Key Features of AP22653W6-7
-
2.5A Current Load Capability – Supports high USB and peripheral demands
-
Low Rds(on) of 70 mO – Reduces power loss and thermal buildup
-
Thermal Shutdown & Short-Circuit Protection – Increases system reliability
-
Fault Flag (Open-Drain) – Provides immediate fault diagnostics
-
SOT-23-6 Compact Package – Fits tight PCB layouts
Because of these advanced protections and high efficiency, Power Switch ICs - Power Distribution by Diodes Incorporated are trusted across computing, mobile, and industrial applications.
Applications of AP22653W6-7 Power Switch IC
-
USB Port Power Management
-
Battery-Powered Devices
-
Set-Top Boxes and Smart TVs
-
Embedded Controllers and IoT Nodes
-
Industrial Control and Sensor Hubs
The AP22653W6-7 Power Switch ICs - Power Distribution by Diodes Incorporated are an ideal solution for controlled power delivery and current monitoring in modern electronics.
Usage and Integration Tips
To use the AP22653W6-7 effectively:
[Step 1] Connect VIN to a 5V supply, and VOUT to the downstream load
[Step 2] Pull the EN pin high to activate the switch
[Step 3] Use the FLAG pin to monitor overload or thermal fault status
[Step 4] Add recommended input/output capacitors (typically 1µF–10µF)
[Step 5] Ensure PCB layout accommodates heat dissipation under full load
Thanks to these integration-friendly features, Power Switch ICs - Power Distribution by Diodes Incorporated are simple to deploy yet powerful in performance.
Use Case Scenario – USB Charging Port Protection
Scenario: A consumer electronics brand needed robust power control and fault reporting in a compact USB charging system.
Problem: Voltage spikes and short circuits caused damage to previous designs.
Solution: The AP22653W6-7 Power Switch ICs - Power Distribution by Diodes Incorporated provided current limiting, thermal protection, and a fault indication flag.
Result: Safer USB ports, longer product life, and improved customer satisfaction.
This highlights the reliability and efficiency of Power Switch ICs - Power Distribution by Diodes Incorporated in real-world conditions.
Download Datasheet for AP22653W6-7
Need more detailed specs, pinouts, or thermal ratings?
[Download AP22653W6-7 Datasheet from Xon Electronics]
Why Buy from Xon Electronics?
Xon Electronics offers 100% authentic Power Switch ICs - Power Distribution by Diodes Incorporated, including the AP22653W6-7:
- Genuine Diodes Inc. Components
- Worldwide Shipping – USA, India, Australia, Europe & more
- Ready Stock & Fast Dispatch
- Engineering Support Available
- Safe & Simple Checkout Process
Order now at www.xonelec.com and power your designs reliably with Power Switch ICs - Power Distribution by Diodes Incorporated.
Conclusion
The AP22653W6-7 Power Switch ICs - Power Distribution by Diodes Incorporated offer a compact, efficient, and intelligent solution for current-limited power delivery and port protection. With thermal shutdown, short-circuit protection, and diagnostic flag output, Power Switch ICs - Power Distribution by Diodes Incorporated are ideal for any application requiring smart load control—now available globally from Xon Electronics.
FAQs – AP22653W6-7 Power Switch IC
Q1. What is the max continuous current?
2.5A.
Q2. Does it support fault indication?
Yes, it has an open-drain FLAG pin for fault output.
Q3. What’s the ideal application?
USB ports, power distribution, and low-voltage DC switching.
Q4. What is the package type?
SOT-23-6.
Q5. Where can I buy it?
At www.xonelec.com with delivery to USA, India, Australia, Europe, and more.
