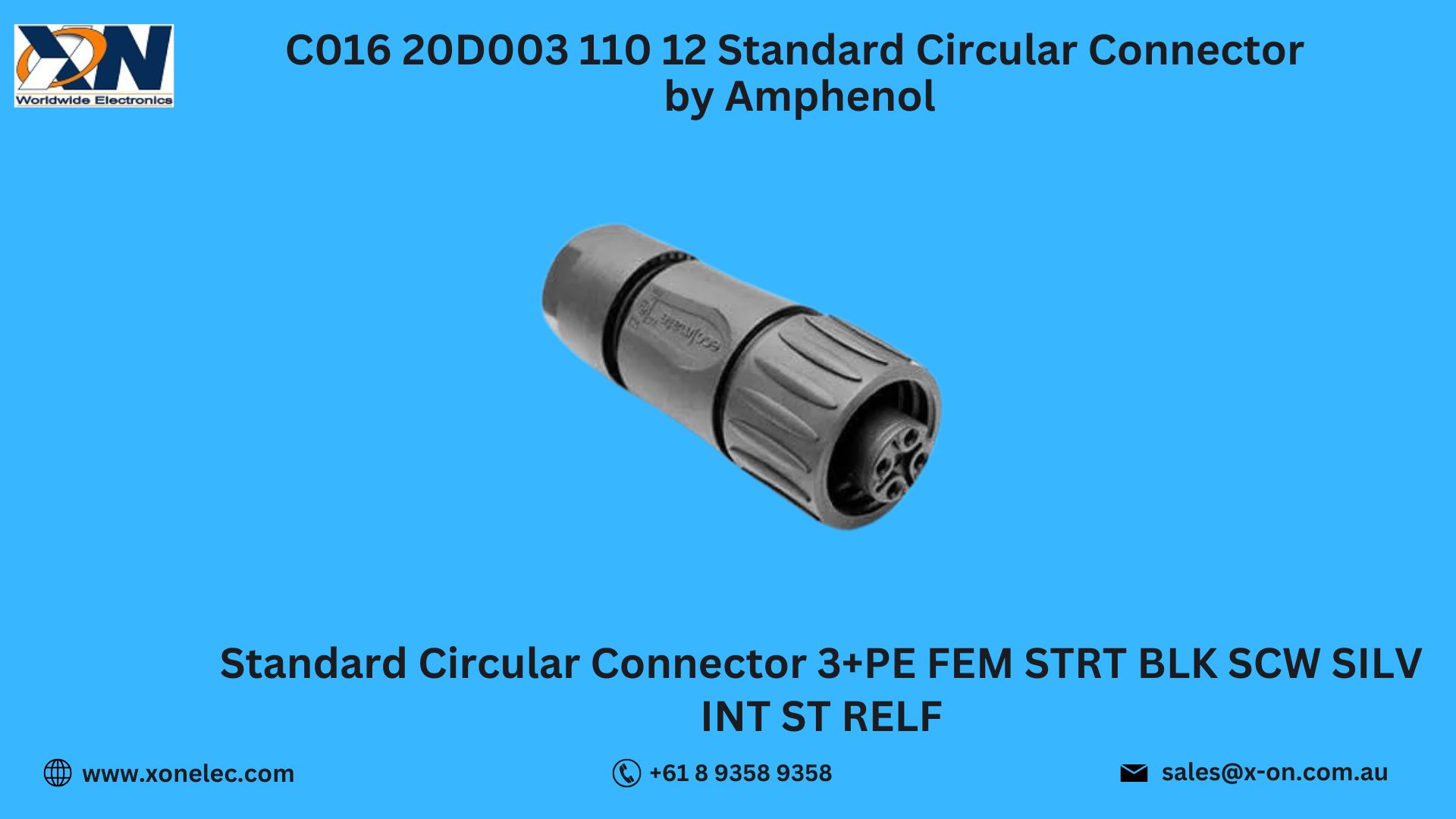

C016 20D003 110 12 – Rugged Circular Connector by Amphenol
The Standard Circular Connector C016 20D003 110 12 by Amphenol is a robust and reliable 3-position cable connector designed for industrial and automation applications. Part of the widely used C016 series, this connector offers quick locking, secure mating, and weather-resistant performance in demanding environments.
In this blog, we’ll review its technical specs, key features, wiring details, applications, and how to download its datasheet or buy from Xon Electronics.
Technical Specifications of C016 20D003 110 12
-
Manufacturer: Amphenol
-
Part Number: C016 20D003 110 12
-
Type: Standard Circular Connector
-
Connector Style: Plug
-
Number of Positions: 3
-
Termination Style: Solder
-
Shell Material: Thermoplastic
-
Rated Current: 16A
-
Rated Voltage: 400V
-
Mounting Type: Cable
-
Ingress Protection: IP67 (mated)
-
Category: Interconnects, Circular Connectors
The C016 20D003 110 12 Standard Circular Connector by Amphenol is a top choice for rugged environments requiring durable, secure, and weather-sealed electrical connections.
Key Features of C016 20D003 110 12
-
3-Pin Configuration – Ideal for power or signal transfer
-
Quick Lock Mechanism – Fast, secure mating/unmating
-
IP67 Rated – Excellent resistance to dust and moisture
-
High Current/Voltage Capacity – Supports 16A @ 400V
-
Durable Thermoplastic Shell – Lightweight yet impact-resistant
These features make this Standard Circular Connector by Amphenol reliable in both indoor and outdoor applications.
Applications of C016 20D003 110 12
Engineers worldwide prefer Standard Circular Connectors by Amphenol for their ease of use, longevity, and excellent environmental sealing.
Wiring and Connection Overview
The C016 20D003 110 12 connector supports the following wiring:
[Cable Input] Insert conductors into the 3-position solder contacts
[Mating] Push to connect and twist to lock with mating receptacle
Its ergonomic design allows for quick assembly and disconnection, even in field installations.
Use Case Scenario – Outdoor Motion Sensor Installation
Scenario: An automation contractor needed a secure and weather-resistant connector for outdoor motion sensor systems.
Problem: Previous connectors corroded over time and were difficult to replace on-site.
Solution: The IP67-rated C016 20D003 110 12 provided easy field installation with quick-locking and resistance to moisture.
Result: Reduced maintenance, improved system uptime, and better long-term reliability.
Another success story powered by a Standard Circular Connector by Amphenol.
Download Datasheet for C016 20D003 110 12
Need full specs, mounting instructions, or part drawings?
[Download C016 20D003 110 12 Datasheet from Xon Electronics]
Why Buy from Xon Electronics?
Xon Electronics stocks the most trusted Standard Circular Connectors by Amphenol, including C016 20D003 110 12:
- 100% Genuine Amphenol Products
- Global Shipping – USA, India, Australia, Europe & more
- OEM & Bulk Purchase Discounts
- Fast Delivery & Stock Availability
- Secure and Convenient Ordering
Order now from www.xonelec.com to get the connector that meets your industrial reliability standards.
Conclusion
The C016 20D003 110 12 Standard Circular Connector by Amphenol is built for engineers who need rugged, secure, and weatherproof connections. With its IP67 rating, quick-locking design, and high electrical performance, it’s one of the most dependable circular connectors available. Get your Standard Circular Connector by Amphenol today at Xon Electronics—ready to ship worldwide.
FAQs – C016 20D003 110 12 Circular Connector
Q1. How many positions does this connector support?
It has 3 positions for power or signal connections.
Q2. What is its ingress protection rating?
It is IP67 rated when mated—dust-tight and waterproof.
Q3. Is it suitable for outdoor applications?
Yes, it’s ideal for outdoor and rugged industrial use.
Q4. How is it terminated?
It uses solder terminals for secure, low-resistance connections.
Q5. Where can I buy it globally?
You can buy it at www.xonelec.com with shipping to USA, India, Australia, Europe, and other regions.
