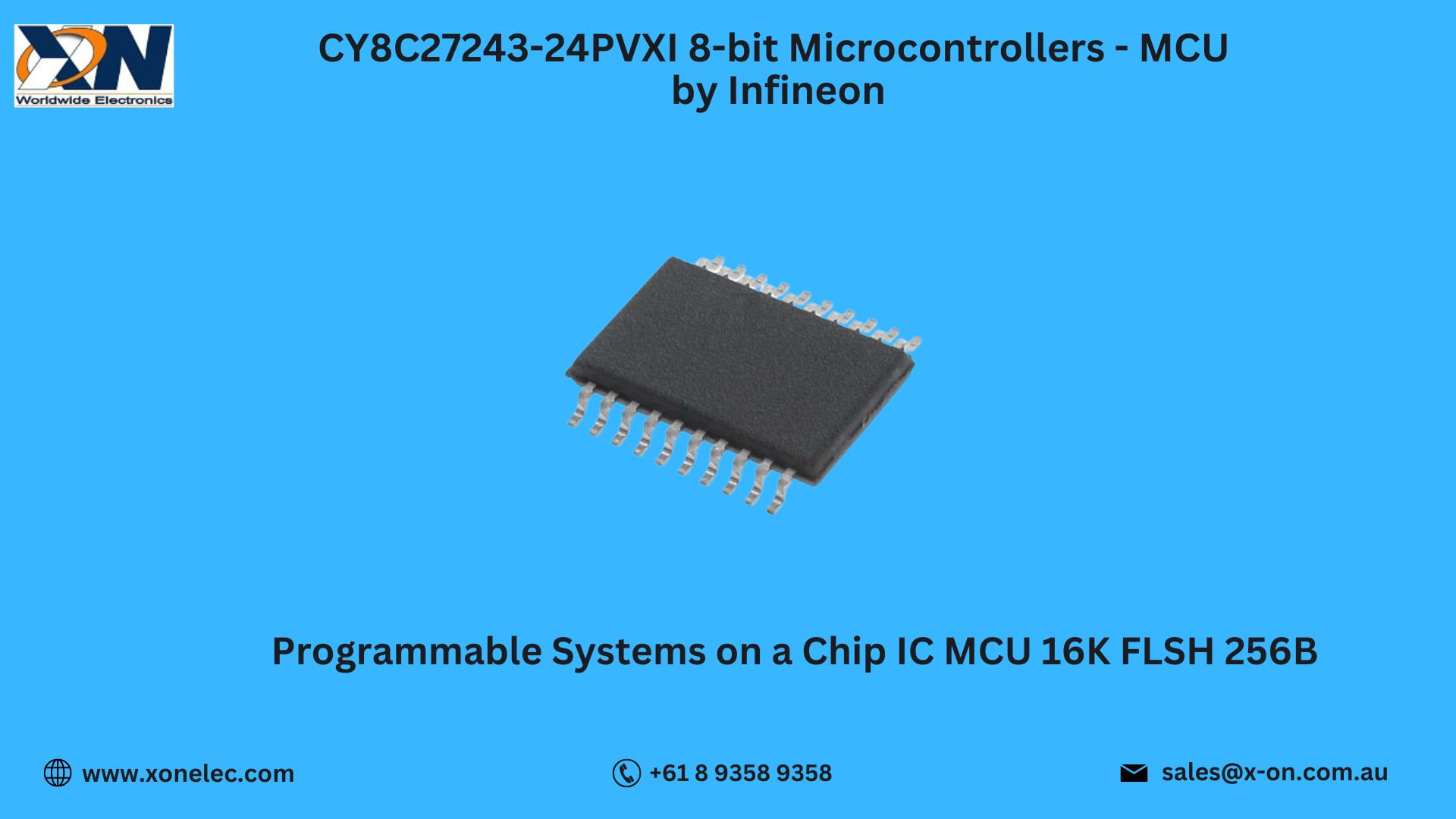

CY8C27243-24PVXI – Programmable 8-bit MCU by Infineon for Embedded Control
The 8-bit Microcontrollers - MCU CY8C27243-24PVXI by Infineon offer a cost-effective, programmable solution for embedded control applications. Designed around the powerful PSoC® architecture, this microcontroller provides a flexible combination of digital blocks, analog peripherals, and a reconfigurable interconnect matrix—enabling engineers to create complex designs without needing external components.
In this blog, we’ll explore the technical specs, top features, application insights, integration tips, and where to buy or download the datasheet from Xon Electronics.
Technical Specifications of CY8C27243-24PVXI
-
Manufacturer: Infineon
-
Part Number: CY8C27243-24PVXI
-
Core: 8-bit proprietary M8C CPU
-
Operating Voltage: 3V to 5.25V
-
Program Memory: 16KB Flash
-
RAM: 256 Bytes
-
Digital Blocks: 4
-
Analog Blocks: 6 (12-bit ADC, DAC, comparators)
-
Clock Speed: Up to 24 MHz
-
Package: 28-Pin SSOP
-
Category: Microcontrollers, 8-bit Microcontrollers - MCU by Infineon
With a combination of digital programmability and embedded analog capability, the CY8C27243-24PVXI 8-bit Microcontrollers - MCU by Infineon reduce component count and speed up product development.
Key Features of CY8C27243-24PVXI
-
Programmable Digital and Analog Blocks – Customize timers, PWMs, filters, or ADCs easily
-
In-System Reprogrammable Flash – Enables firmware updates in the field
-
CapSense® Touch Interface Support – Integrates capacitive touch sensing
-
Flexible I/O Routing – Assign peripheral functions to almost any I/O pin
-
Low Power Modes – Designed for battery-efficient systems
Thanks to its versatility and compact form factor, the 8-bit Microcontrollers - MCU by Infineon are widely used in both consumer and industrial applications.
Applications of CY8C27243-24PVXI
-
Home Appliance Controllers
-
Battery-Powered Consumer Devices
-
Touch Sensing Interfaces
-
Signal Conditioning Modules
-
Industrial Automation and Monitoring Systems
The CY8C27243-24PVXI 8-bit Microcontrollers - MCU by Infineon are a go-to choice for developers who need a flexible microcontroller with analog and digital integration.
Integration Tips for Developers
To get the most from the CY8C27243-24PVXI:
[Step 1] Use PSoC Designer™ IDE to visually configure the analog/digital blocks
[Step 2] Assign pins using the Global Interconnect (GI) matrix
[Step 3] Optimize power usage with sleep and standby modes
[Step 4] Utilize CapSense® for touch buttons or sliders
[Step 5] Perform firmware updates using the in-system programming capability
The 8-bit Microcontrollers - MCU by Infineon make embedded control design faster, more compact, and easier to modify without PCB changes.
Use Case Scenario – Smart Water Purifier Control
Scenario: A manufacturer needed a compact MCU to manage sensors, buttons, and display logic in a digital water purifier.
Problem: Their previous design required multiple external components for ADCs and interface logic.
Solution: The CY8C27243-24PVXI 8-bit Microcontrollers - MCU by Infineon consolidated analog input, touch sensing, and digital logic in one chip.
Result: Smaller PCB, lower BOM cost, and enhanced user interface.
This shows why 8-bit Microcontrollers - MCU by Infineon are ideal for feature-rich, compact applications.
Download Datasheet for CY8C27243-24PVXI
Need pin configuration, memory maps, or electrical specs?
[Download CY8C27243-24PVXI Datasheet from Xon Electronics]
Why Buy from Xon Electronics?
Xon Electronics is your trusted source for 8-bit Microcontrollers - MCU by Infineon, including the CY8C27243-24PVXI:
- 100% Original Infineon (Cypress) Components
- Worldwide Shipping – USA, India, Australia, Europe & more
- In-Stock Inventory with Quick Dispatch
- Support for PSoC-based Designs
- Simple, Secure Checkout Process
Order today at www.xonelec.com and streamline your embedded designs with 8-bit Microcontrollers - MCU by Infineon.
Conclusion
The CY8C27243-24PVXI 8-bit Microcontrollers - MCU by Infineon combine flash programmability, analog-digital configurability, and compact packaging—making them a perfect fit for modern embedded applications. Power your next innovation with 8-bit Microcontrollers - MCU by Infineon, now available from Xon Electronics.
FAQs – CY8C27243-24PVXI Microcontroller
Q1. What programming tools are compatible?
PSoC Designer™ from Infineon/Cypress.
Q2. Can this MCU handle analog signal inputs?
Yes, it features 6 analog blocks including ADCs and comparators.
Q3. What’s the flash size?
16KB.
Q4. Is it suitable for touch sensing?
Yes, it supports CapSense® technology.
Q5. Can I buy it globally?
Yes, at www.xonelec.com with shipping to USA, India, Australia, Europe, and more.
