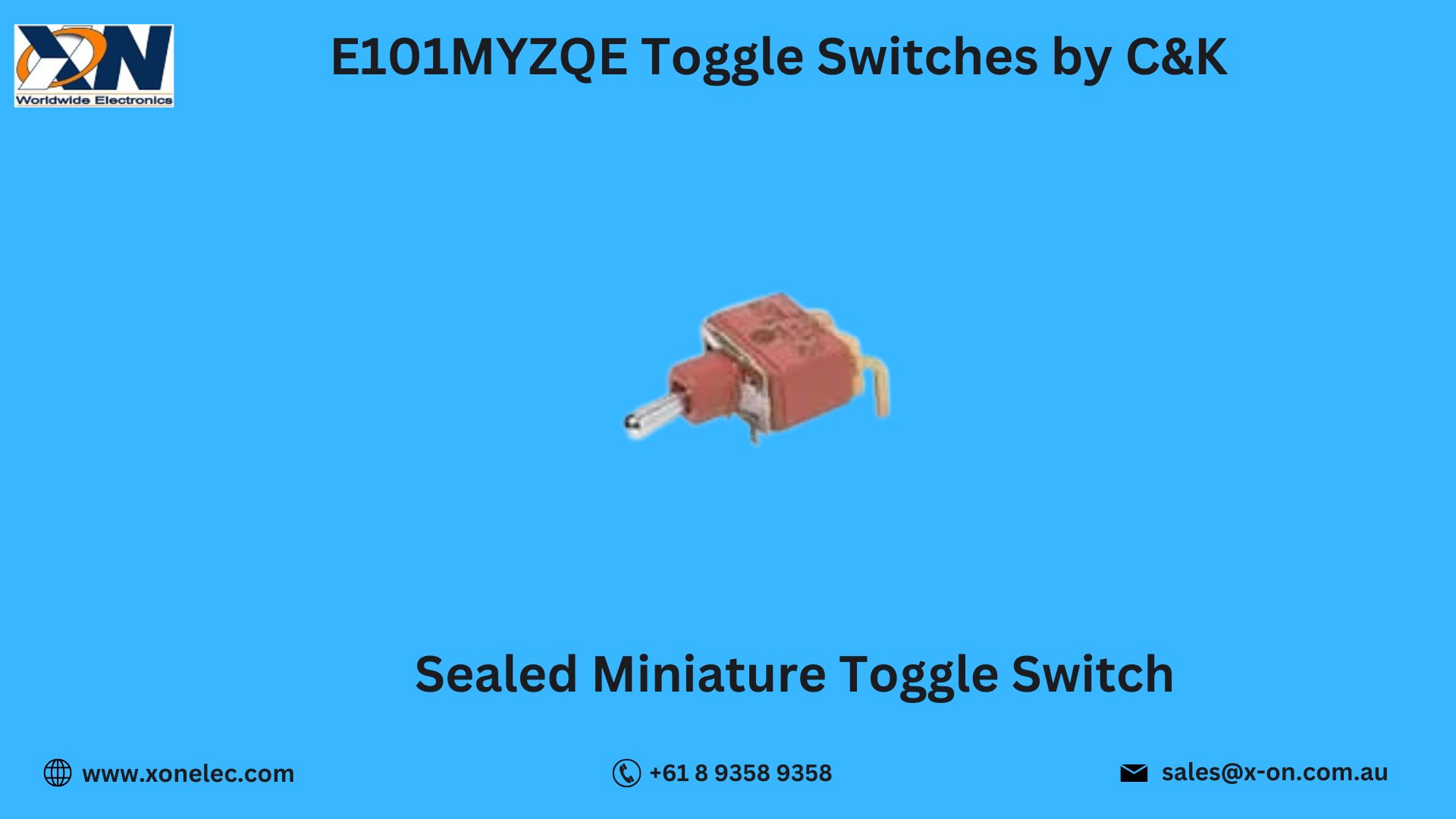

Versatile Control: E101MYZQE Toggle Switches by C&K
The Toggle Switches E101MYZQE by C&K are high-performance electromechanical components engineered for reliability and precision in demanding electronic and industrial applications. With a compact design and durable build, this switch is ideal for toggling control in various environments including aerospace, automotive, medical, and test equipment.
In this blog, we’ll explore the technical specs, standout features, application areas, wiring configuration, and where to buy it at Xon Electronics. If you’re seeking reliable Electromechanical, Switches, Toggle Switches by C&K, the E101MYZQE model is a trusted, field-proven option.
Technical Specifications of E101MYZQE Toggle Switch
-
Manufacturer: C&K
-
Part Number: E101MYZQE
-
Type: Toggle Switch
-
Contact Configuration: SPDT (Single Pole Double Throw)
-
Actuator Type: Toggle
-
Switch Function: ON-ON
-
Current Rating: 5A at 120VAC / 28VDC
-
Mounting Style: Panel Mount
-
Terminal Type: Solder Lug
-
Sealing: Process sealed
-
Category: Electromechanical, Switches, Toggle Switches by C&K
This toggle switch combines long mechanical life with reliable electrical performance in a rugged enclosure.
Key Features of E101MYZQE Toggle Switches by C&K
-
ON-ON Switching – Simple two-position control with fast actuation
-
High Contact Rating – Supports both AC and DC loads up to 5A
-
Panel Mount Design – Easy to install in control panels and instruments
-
Process Sealed – Allows wave soldering and cleaning
-
Durable Build – Extended mechanical life for mission-critical applications
With these features, the E101MYZQE Toggle Switches by C&K stand out as a preferred solution in Electromechanical, Switches, Toggle Switches by C&K categories.
Applications of E101MYZQE Toggle Switches by C&K
The E101MYZQE Toggle Switches by C&K are suitable for a wide variety of control and signal switching applications such as:
-
Aerospace and Military Control Panels
-
Test and Measurement Equipment
-
Industrial Automation Interfaces
-
Medical Devices and Diagnostic Tools
-
Consumer Electronics Control Boards
-
Automotive and Marine Dashboards
Engineers trust these Electromechanical, Switches, Toggle Switches by C&K for their reliability, compactness, and long operating life.
Wiring & Installation Overview
[Panel Cutout] ? Insert Toggle Switch from Front Panel
-
[Solder Lug Terminals] ? Connect wires to COM, NO, and NC
-
[Toggle Actuation] ? Switches between ON-ON positions
This SPDT configuration allows flexible circuit control for switching, routing, or logic selection.
Use Case Scenario: Industrial Test Bench Selector
Scenario: A test engineer required a durable toggle switch for switching control lines on an industrial test bench.
Problem: Previous toggle switches failed during repetitive use and were not sealed for soldering.
Solution: The E101MYZQE Toggle Switches by C&K offered process sealing and long-lasting mechanical durability.
Result: Enhanced equipment uptime, easier soldering, and reduced replacement frequency.
This real-world scenario confirms why engineers rely on Electromechanical, Switches, Toggle Switches by C&K for high-usage control systems.
Download Datasheet for E101MYZQE Toggle Switch
Download E101MYZQE Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics provides certified Electromechanical, Switches, Toggle Switches by C&K, including E101MYZQE, with:
- 100% Genuine C&K Components
- Fast Worldwide Shipping – USA, India, Australia, Europe & more
- Bulk Ordering Options for OEMs
- Datasheets and Expert Technical Support
- Secure Checkout and Fast Dispatch
Order now at www.xonelec.com and upgrade your control systems with trusted toggle switches.
Conclusion
The E101MYZQE Toggle Switches by C&K are compact, reliable, and rugged switches built for consistent control and long life. Whether you need them for industrial panels, aerospace consoles, or diagnostic tools, these Electromechanical, Switches, Toggle Switches by C&K ensure secure, repeatable switching. Available now at Xon Electronics with global shipping to the USA, India, Australia, Europe, and more.
FAQs – E101MYZQE Toggle Switch by C&K
Q1. What is the contact configuration of E101MYZQE?
It is a Single Pole Double Throw (SPDT) toggle switch.
Q2. Is it suitable for AC and DC loads?
Yes, it supports 5A at 120VAC or 28VDC.
Q3. Is the switch sealed for soldering?
Yes, it is process sealed for wave soldering and cleaning.
Q4. What mounting method does it use?
It uses panel mounting with solder lug terminals.
Q5. Where can I buy it globally?
You can purchase the E101MYZQE Toggle Switches by C&K from www.xonelec.com, shipping to USA, India, Australia, Europe, and more.
