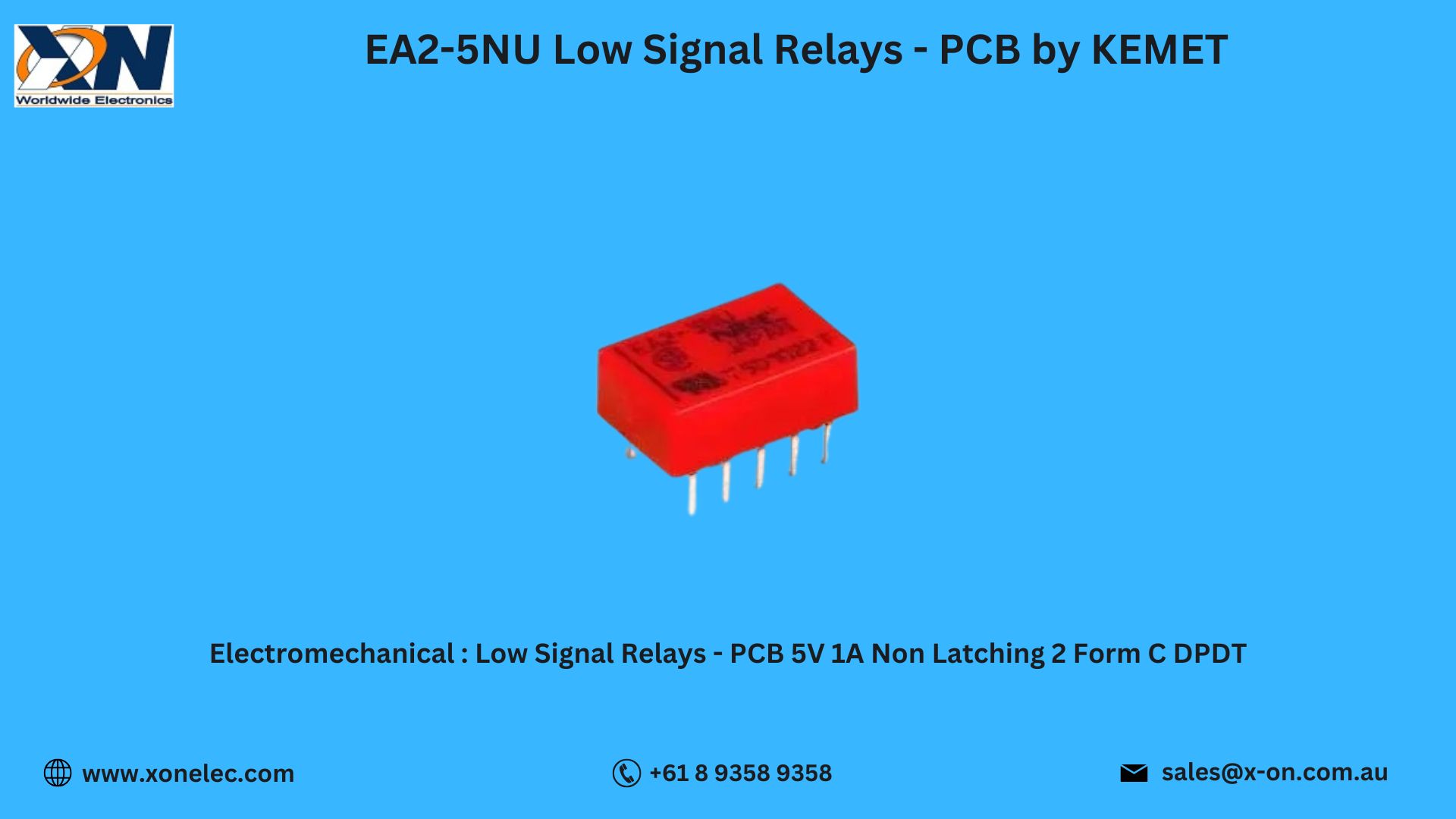

EA2-5NU Low Signal Relays - PCB by KEMET – Compact and Reliable Switching Solutions
The Low Signal Relays - PCB EA2-5NU by KEMET are high-quality Electromechanical components designed for precise and efficient signal switching in compact electronic circuits. As part of KEMET’s advanced Relays portfolio, these Low Signal Relays - PCB provide exceptional performance in low voltage and low current applications, making them ideal for industrial, communication, and consumer electronics.
In this blog, we’ll cover technical specifications, key features, applications, and purchasing details for engineers seeking compact and reliable relay solutions.
Technical Specifications of EA2-5NU
-
Manufacturer: KEMET
-
Model: EA2-5NU
-
Type: Low Signal Relays - PCB
-
Coil Voltage: 5V DC
-
Contact Form: DPDT (Double Pole Double Throw)
-
Contact Rating: 2A at 30V DC / 1A at 125V AC
-
Mounting Type: Through Hole
-
Operating Temperature: -40°C to +85°C
-
Category: Electromechanical, Relays, Low Signal Relays - PCB
These Relays are engineered to deliver precise signal routing and long operational life in high-density PCB layouts.
Key Features of EA2-5NU Low Signal Relays
-
Compact DPDT relay for signal switching
-
High insulation resistance for reliable operation
-
Low power consumption coil design
-
Excellent vibration and shock resistance
-
Part of KEMET’s premium Electromechanical Relays lineup
The EA2-5NU Low Signal Relays - PCB by KEMET ensure reliable signal transmission in sensitive circuits.
Applications of EA2-5NU Low Signal Relays
-
Communication equipment
-
Measurement and test instruments
-
Consumer electronics and home automation
-
Industrial control systems
-
Medical devices requiring precise Low Signal Relays - PCB
These Relays are an excellent choice for applications where precision and compact design are critical.
Installation and Handling Overview
To integrate the EA2-5NU relay:
-
Solder securely onto the PCB using through-hole mounting.
-
Ensure coil voltage matches 5V DC requirements.
-
Follow proper relay handling precautions to avoid ESD damage.
-
Test for correct switching in target applications.
This Electromechanical component simplifies signal routing in compact devices.
Use Case Scenario: Precision Test Equipment
Scenario: A test equipment manufacturer needed compact Low Signal Relays - PCB for routing low-voltage signals without interference.
Problem: Previously used relays caused signal degradation and had limited lifespan.
Solution: The EA2-5NU Relays by KEMET provided reliable switching with excellent isolation and longevity.
Result: Improved test accuracy and reduced maintenance requirements.
Download Datasheet for EA2-5NU
Download EA2-5NU Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics supplies genuine KEMET Low Signal Relays - PCB with:
-
100% Authentic Products for Sensitive Applications
-
Global Shipping to USA, India, Australia, Europe & more
-
Bulk Order Discounts and OEM Support
-
Expert Technical Assistance for Seamless Integration
-
Secure Online Ordering at www.xonelec.com
FAQs – EA2-5NU Low Signal Relays by KEMET
Q1. What coil voltage does EA2-5NU support?
It supports a coil voltage of 5V DC.
Q2. Is this relay suitable for high-density PCBs?
Yes, its compact design is ideal for space-constrained layouts.
Q3. Can I use it in medical devices?
Yes, it’s suitable for precision applications like medical electronics.
Q4. Does Xon Electronics ship globally?
Yes, shipping is available to USA, India, Australia, Europe & more.
Conclusion
The EA2-5NU Low Signal Relays - PCB by KEMET offer compact design, reliable switching, and superior performance in sensitive circuits. As premium Electromechanical components in the Relays category, they are trusted worldwide for industrial and consumer applications. Order now from Xon Electronics for global delivery and technical support.
