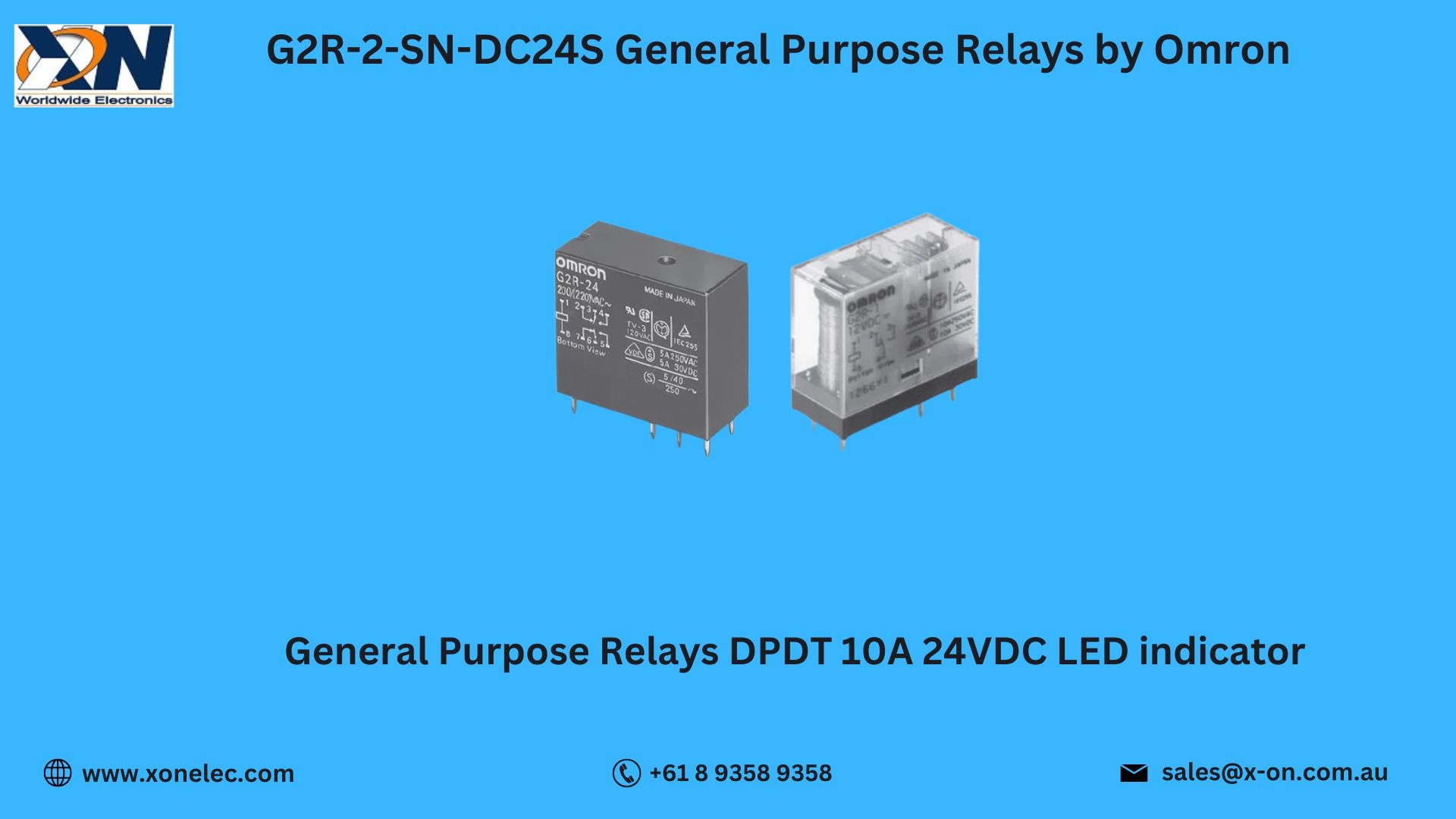

G2R-2-SN-DC24S – Dual-Pole Relay by Omron for Versatile Load Switching
The General Purpose Relays G2R-2-SN-DC24S by Omron are reliable, high-performance electromagnetic relays designed for control panels, automation systems, and industrial equipment. With a transparent enclosure, plug-in mounting, and dual-pole switching, this 24V DC relay delivers dependable performance in a wide range of applications.
In this blog, we explore its technical specifications, features, usage scenarios, wiring tips, and how to download the datasheet or buy from Xon Electronics.
Technical Specifications of G2R-2-SN-DC24S
-
Manufacturer: Omron
-
Part Number: G2R-2-SN-DC24S
-
Type: Electromechanical General Purpose Relay
-
Coil Voltage: 24V DC
-
Contact Configuration: DPDT (2 Form C)
-
Contact Rating: 5A @ 250VAC / 30VDC
-
Mounting Style: Plug-In (Through-Socket)
-
Operating Time: Approx. 10 ms
-
Release Time: Approx. 5 ms
-
Dielectric Strength: 5,000V between coil and contacts
-
Category: Relays, General Purpose Relays by Omron
The G2R-2-SN-DC24S General Purpose Relays by Omron are built for durable, high-speed switching across control circuits, power systems, and automation interfaces.
Key Features of G2R-2-SN-DC24S
-
DPDT Contacts (2-Pole Switching) – Supports two independent circuits per relay
-
Plug-In Mounting Design – Easy installation and replacement
-
Clear Transparent Housing – Visual inspection of contacts and coil
-
Mechanical Indicator & Test Button – For manual testing and diagnostics
-
High Dielectric Strength – Ensures safe isolation between control and load circuits
Thanks to their robust construction and versatility, General Purpose Relays by Omron are widely used in industrial, commercial, and OEM applications.
Applications of G2R-2-SN-DC24S Relay
Whether for switching AC loads, controlling motors, or acting as interface relays, the G2R-2-SN-DC24S General Purpose Relays by Omron provide high reliability and ease of use.
Wiring & Installation Guide
To install the G2R-2-SN-DC24S:
[Step 1] Choose a compatible Omron P2R socket for plug-in mounting
[Step 2] Insert the relay securely into the socket
[Step 3] Connect load wires to the DPDT terminals per your circuit
[Step 4] Apply 24V DC to the coil terminals to activate switching
[Step 5] Test functionality using the mechanical push-button
This quick-swap format makes General Purpose Relays by Omron maintenance-friendly and perfect for high-cycle environments.
Use Case Scenario – Motor Start/Stop Control
Scenario: An industrial system integrator needed a durable relay to control start/stop logic for a dual-motor conveyor setup.
Problem: Previous relays suffered early failure due to low isolation and inconsistent contact performance.
Solution: The G2R-2-SN-DC24S General Purpose Relays by Omron offered DPDT contacts, high dielectric strength, and easy monitoring.
Result: Improved system uptime, better field diagnostics, and fewer service calls.
That’s why engineers trust General Purpose Relays by Omron for both AC and DC load switching.
Download Datasheet for G2R-2-SN-DC24S
Need contact specs, pinout diagram, or safety approvals?
[Download G2R-2-SN-DC24S Datasheet from Xon Electronics]
Why Buy from Xon Electronics?
Xon Electronics is a trusted source for General Purpose Relays by Omron, including the G2R-2-SN-DC24S model:
- 100% Authentic Omron Components
- Global Shipping – USA, India, Australia, Europe & more
- In-Stock and Ready to Ship
- Technical Assistance Available
- Secure Online Checkout
Order now at www.xonelec.com and power your systems with General Purpose Relays by Omron.
Conclusion
The G2R-2-SN-DC24S General Purpose Relays by Omron offer the perfect balance of functionality, reliability, and serviceability. With dual-pole switching, quick plug-in mounting, and high isolation ratings, General Purpose Relays by Omron are the trusted choice for automation, HVAC, and control systems—available globally from Xon Electronics.
FAQs – G2R-2-SN-DC24S Omron Relay
Q1. What coil voltage is required?
24V DC.
Q2. What is the contact rating?
5A @ 250VAC or 30VDC.
Q3. What type of mounting is used?
Plug-in through a compatible socket.
Q4. Is it visually inspectable?
Yes, it has a clear housing with indicator.
Q5. Can I buy it worldwide?
Yes, available at www.xonelec.com with shipping to USA, India, Australia, Europe, and more.
