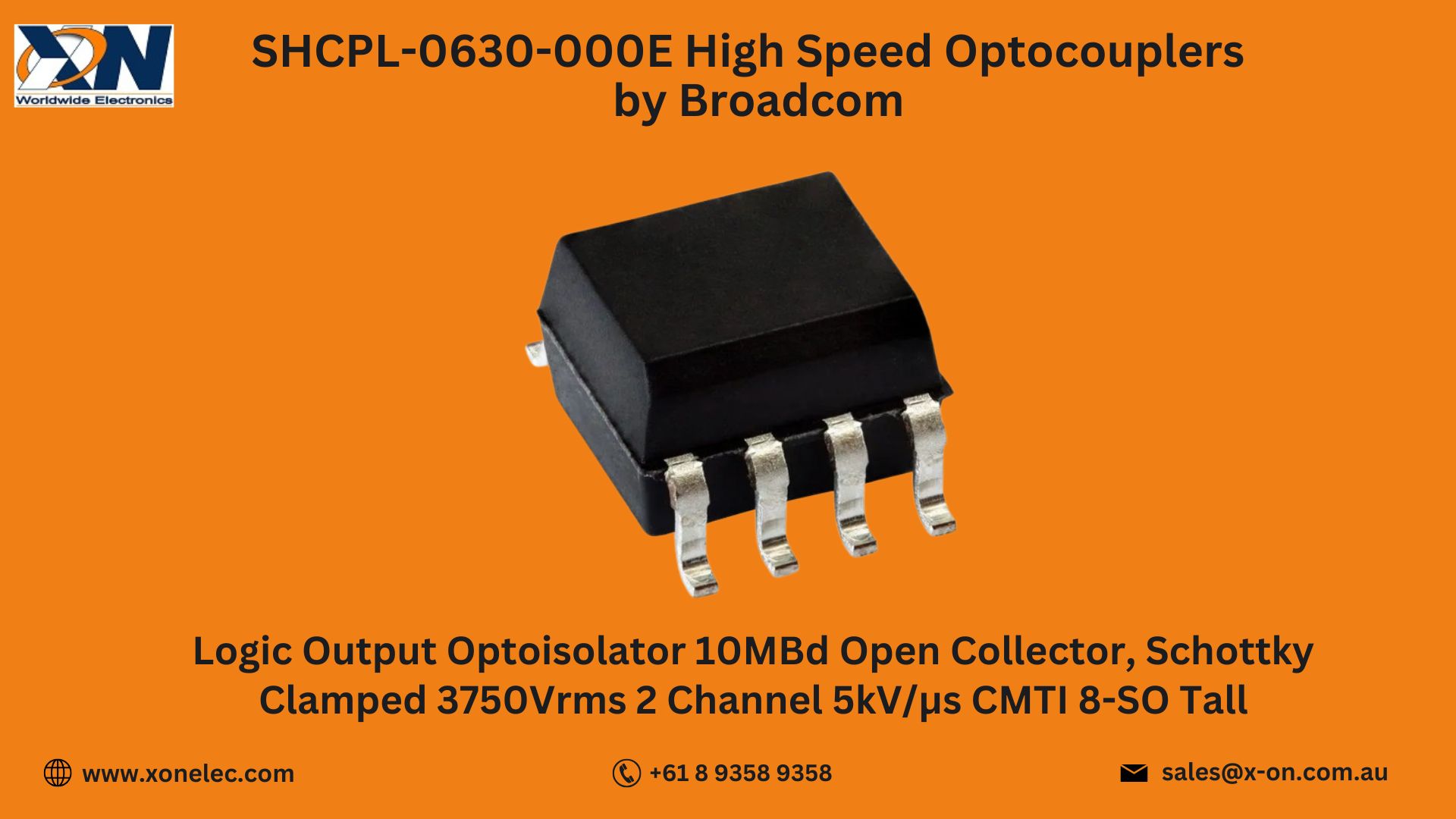

HCPL-0630-000E High Speed Optocoupler by Broadcom

HCPL-0630-000E High Speed Optocouplers by Broadcom in USA, India

The High Speed Optocouplers HCPL-0630-000E  by Broadcom are industry-leading optoelectronic components designed for high-speed digital signal isolation. Engineered for demanding applications, these optocouplers ensure superior performance in industrial automation, power supply systems, and communication interfaces. Available at Xon Electronics, the High Speed Optocouplers by Broadcom can be delivered across the USA, India, Europe, Australia, and other global regions.

In this article, we provide a comprehensive overview of the HCPL-0630-000E, including its specifications, key features, practical applications, integration diagrams, real-world scenarios, and where to buy it.

HCPL-0630-000E High Speed Optocoupler Overview

The HCPL-0630-000E is a dual-channel, optically coupled logic gate that offers high isolation voltage and high-speed performance. Built for digital communication systems, it enables data transmission across isolated circuits while maintaining signal integrity.

Technical Specifications:

• Manufacturer: Broadcom

• Series: HCPL-0630

• Data Rate: 10 MBd (typical)

• Output Type: Open Collector

• Channels: Dual

• Isolation Voltage: 3750 Vrms

• Forward Current (If): 10 mA (typical)

• Input Type: High-speed LED

• Mounting Style: SMD (Surface-Mount Device)

• Compliance: UL, CSA, IEC/EN/DIN EN 60747-5-5

• Temperature Range: -40°C to +85°C

The HCPL-0630-000E is known for its fast switching speed, reliable signal isolation, and compact SMD packaging ideal for modern PCB layouts.

Key Features of HCPL-0630-000E

1. High-Speed Digital Signal Isolation
   The HCPL-0630-000E High Speed Optocouplers by Broadcom deliver up to 10 MBd data transfer rate, making them ideal for high-speed communication and control systems.

2. Dual-Channel Output for Efficiency
   The dual-channel configuration allows designers to transmit two isolated signals through a single device, optimizing board space and improving performance in space-constrained applications.

3. Excellent Electrical Isolation
   With 3750 Vrms isolation, these optocouplers protect sensitive circuitry from high voltages, surges, and ground loops.

4. Surface-Mount Package for Compact Design
   The SMD form factor ensures easy integration into high-density circuit boards, simplifying automated manufacturing and reducing component footprint.

5. Certified to Global Standards
   The High Speed Optocouplers by Broadcom are certified under major international safety standards, ensuring reliable performance in mission-critical systems.

Applications of HCPL-0630-000E Optocouplers

The HCPL-0630-000E finds applications in a wide range of industries:

1. Industrial Automation & Process Control
   These optocouplers are essential for isolating digital signals in programmable logic controllers (PLCs), human-machine interfaces (HMIs), and sensor input circuits.

2. Switch Mode Power Supplies (SMPS)
   Used to maintain safe signal transmission between high and low voltage sections, enabling efficient feedback and monitoring.

3. Data Communication Interfaces
   Ensures accurate data transfer between different systems while eliminating electrical noise and common-mode voltage issues.

4. Microcontroller Interfacing
   Provides galvanic isolation for microcontroller-based systems to prevent damage from voltage spikes or noisy environments.

5. Signal Isolation in Motor Drives
   These High Speed Optocouplers by Broadcom are used to isolate control logic from power devices in variable speed drives and inverter systems.

Circuit Diagram for HCPL-0630-000E

In a typical implementation, the HCPL-0630-000E is placed between a logic controller and an IGBT gate driver circuit. The input side (LED) is driven by a microcontroller, while the output transistor connects to a pull-up resistor and feeds into the driver IC. The isolation barrier between the two sides ensures protection and accurate signal transmission.

Use Case Scenario: Signal Isolation in Industrial Automation

Scenario: Isolated Signal Transmission in a PLC-controlled Assembly Line

A factory automation system requires isolated signal paths between multiple sensors and a central PLC. Engineers select the HCPL-0630-000E High Speed Optocouplers by Broadcom for their fast switching capability and robust isolation features.

Implementation:

• Each sensor output is connected to the input side of the HCPL-0630-000E.

• The optocoupler outputs are linked to digital input channels of the PLC.

• This configuration ensures noise immunity and system safety.

Benefits:

1. Reliable high-speed data capture from sensors

2. Electrical protection between modules

3. Enhanced system diagnostics and maintenance

Where to Buy HCPL-0630-000E?

The HCPL-0630-000E High Speed Optocouplers by Broadcom are available at Xon Electronics, a trusted distributor of electronic components. Customers across the USA, India, Europe, Australia, and beyond can order through the Xon Electronics website with fast global shipping.

Conclusion

The HCPL-0630-000E High Speed Optocouplers by Broadcom are a smart choice for engineers and system integrators seeking reliable signal isolation, high data rates, and compact design. Whether you're working on automation systems, power supplies, or digital communication networks, this component provides the speed and safety you need.

Visit Xon Electronics today to get your supply of High Speed Optocouplers by Broadcom and enhance the performance of your control systems.

FAQs: HCPL-0630-000E High Speed Optocoupler

1. What is the HCPL-0630-000E?
   It is a dual-channel high-speed optocoupler by Broadcom that isolates digital signals while providing up to 10 MBd data transfer speed.

2. Where is it commonly used?
   In industrial control systems, power supplies, motor drives, and communication interfaces requiring fast and isolated signal transmission.

3. What makes the HCPL-0630-000E unique?
   It combines high-speed performance with dual-channel output and compact surface-mount packaging.

4. Is it certified for global applications?
   Yes, it complies with UL, CSA, and IEC/EN standards for optical isolation components.

5. Can I use it with microcontrollers?
   Absolutely. It is often used for isolating microcontrollers from noisy or high-voltage systems.
