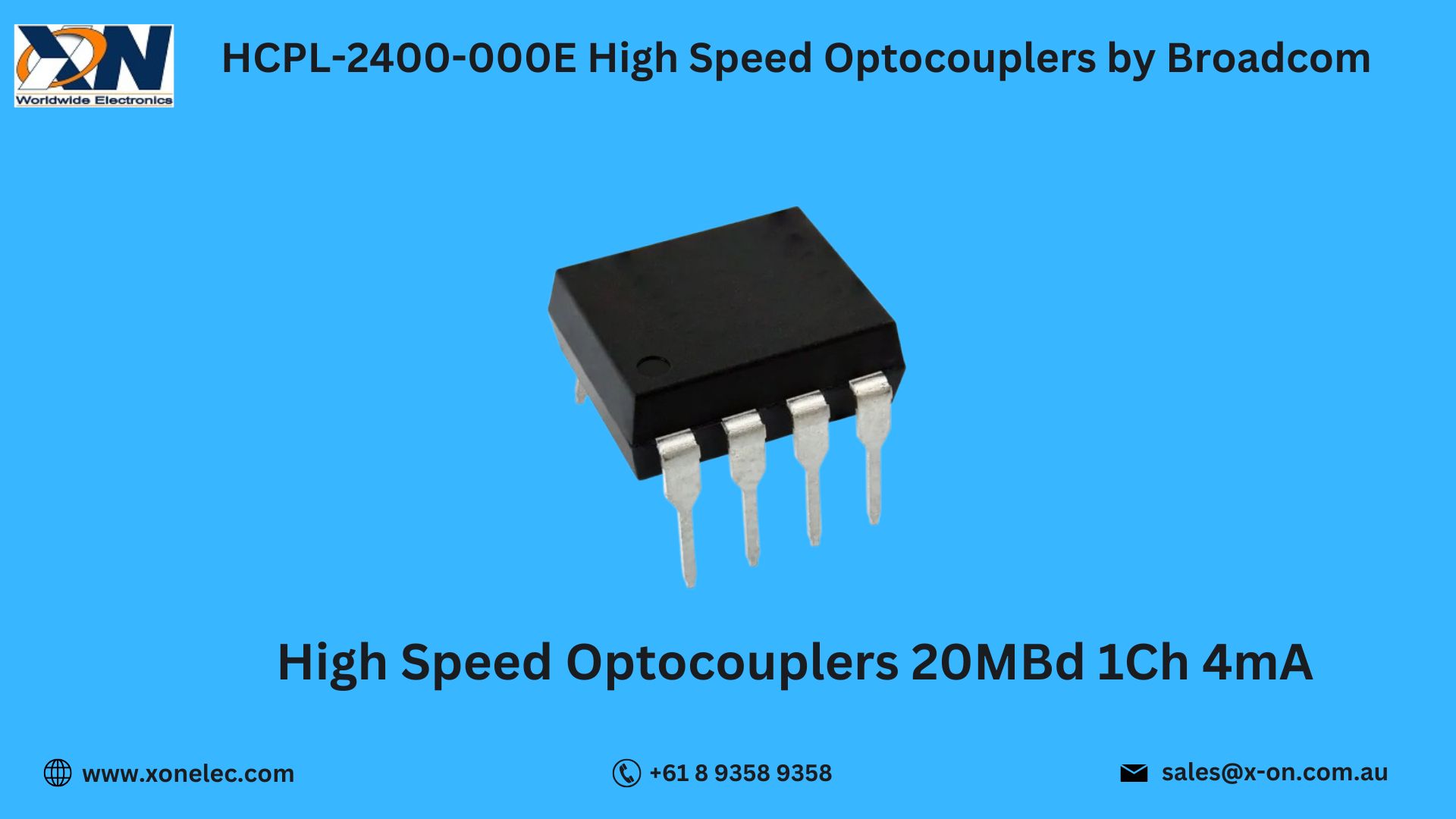

HCPL-2400-000E High Speed Optocouplers by Broadcom

HCPL-2400-000E High Speed Optocouplers by Broadcom – Precision Signal Isolation

The High Speed Optocouplers HCPL-2400-000E by Broadcom are advanced Optoelectronics components designed for high-performance digital isolation. These devices combine fast switching speeds with excellent noise immunity, making them ideal for use in data communication, industrial control, and power conversion applications. As one of the most reliable Optocouplers / Photocouplers, they provide robust isolation between input and output circuits without sacrificing performance.

In this blog, we’ll cover the technical specifications, key features, applications, wiring, and use case scenarios of the HCPL-2400-000E, along with how to get the datasheet and purchase from Xonelec.

Technical Specifications of HCPL-2400-000E

Manufacturer: Broadcom
Part Number: HCPL-2400-000E
Type: High Speed Optocoupler / Photocoupler
Data Rate: 1 MBd
Isolation Voltage: 3750 Vrms
Input Type: LED
Output Type: Open Collector
Propagation Delay: 0.5 µs (typical)
Operating Temperature Range: -40°C to +85°C
Package Type: DIP-8 / Surface Mount Options
Category: Optoelectronics, Optocouplers / Photocouplers, High Speed Optocouplers by Broadcom
Certifications: UL, CSA, IEC/EN standards

These specifications make the HCPL-2400-000E an excellent choice for high-speed data transmission with galvanic isolation.

Key Features of HCPL-2400-000E

High-Speed Switching – Up to 1 MBd for fast and reliable communication
High Isolation Voltage – 3750 Vrms for superior circuit protection
Wide Temperature Range – Operates reliably in harsh environments
Low Propagation Delay – Ensures minimal latency for real-time systems
Flexible Packaging – Available in DIP and SMT options

These features establish the HCPL-2400-000E High Speed Optocouplers by Broadcom as one of the best solutions for digital isolation in modern electronics.

Applications of HCPL-2400-000E

The HCPL-2400-000E is used in diverse applications where secure isolation and fast communication are essential:

Digital data communication systems
Industrial automation and process control
Switching power supplies and inverters
Microprocessor and logic interfacing
Telecom and networking equipment
Motor drive control systems

By leveraging Optoelectronics and Optocouplers / Photocouplers, engineers can ensure both safety and performance in their designs.

Wiring and Connection Overview

The HCPL-2400-000E uses a standard LED input and transistor output configuration.

Typical Wiring:

Input: LED side connected to logic-level signal
Output: Open collector transistor connected to receiving logic circuit
Isolation barrier between input and output ensures safety and noise immunity

This makes it easy to integrate into digital systems requiring isolation.

Use Case Scenario – Switching Power Supply

Scenario: A power electronics manufacturer required a reliable High Speed Optocoupler for isolating control signals in a switching power supply.
Problem: Conventional photocouplers introduced high latency, reducing system efficiency.
Solution: The HCPL-2400-000E High Speed Optocouplers by Broadcom delivered fast propagation delay and high isolation voltage.
Result: Improved efficiency, enhanced safety, and consistent high-speed operation.

Download Datasheet for HCPL-2400-000E

Download the HCPL-2400-000E Datasheet from Xonelec for complete specifications, package details, and compliance certifications.

Why Buy from Xonelec?

Xonelec offers genuine High Speed Optocouplers by Broadcom including the HCPL-2400-000E, with:

100% Authentic Broadcom Products
Worldwide Shipping – USA, India, Australia, Europe & more
Bulk Pricing for OEMs and Distributors
Technical Assistance for System Integration
Secure Online Ordering

Order today from www.xonelec.com and enhance your project with trusted Optoelectronics solutions.

Conclusion

The HCPL-2400-000E High Speed Optocouplers by Broadcom are cutting-edge Optocouplers / Photocouplers offering fast response times, strong electrical isolation, and proven reliability. Suitable for industrial, telecom, and power electronics, they ensure optimal safety and performance. Available now at Xonelec with global shipping to USA, India, Australia, Europe, and other countries.
