IRFBG20PBF Vishay MOSFET – 600V Power Transistor

IRFBG20PBF MOSFETs by Vishay in USA, India

The MOSFETs IRFBG20PBF by Vishay are robust, high-performance power transistors designed for switching and amplification applications in power electronics. Built with rugged planar technology, these N-channel MOSFETs offer excellent efficiency and thermal performance, making them a trusted choice in industrial, automotive, and power management systems.

Available at Xon Electronics, the MOSFETs by Vishay are shipped globally, including to the USA, India, Australia, Europe, and other countries—ensuring engineers and OEMs have access to reliable discrete semiconductors worldwide.

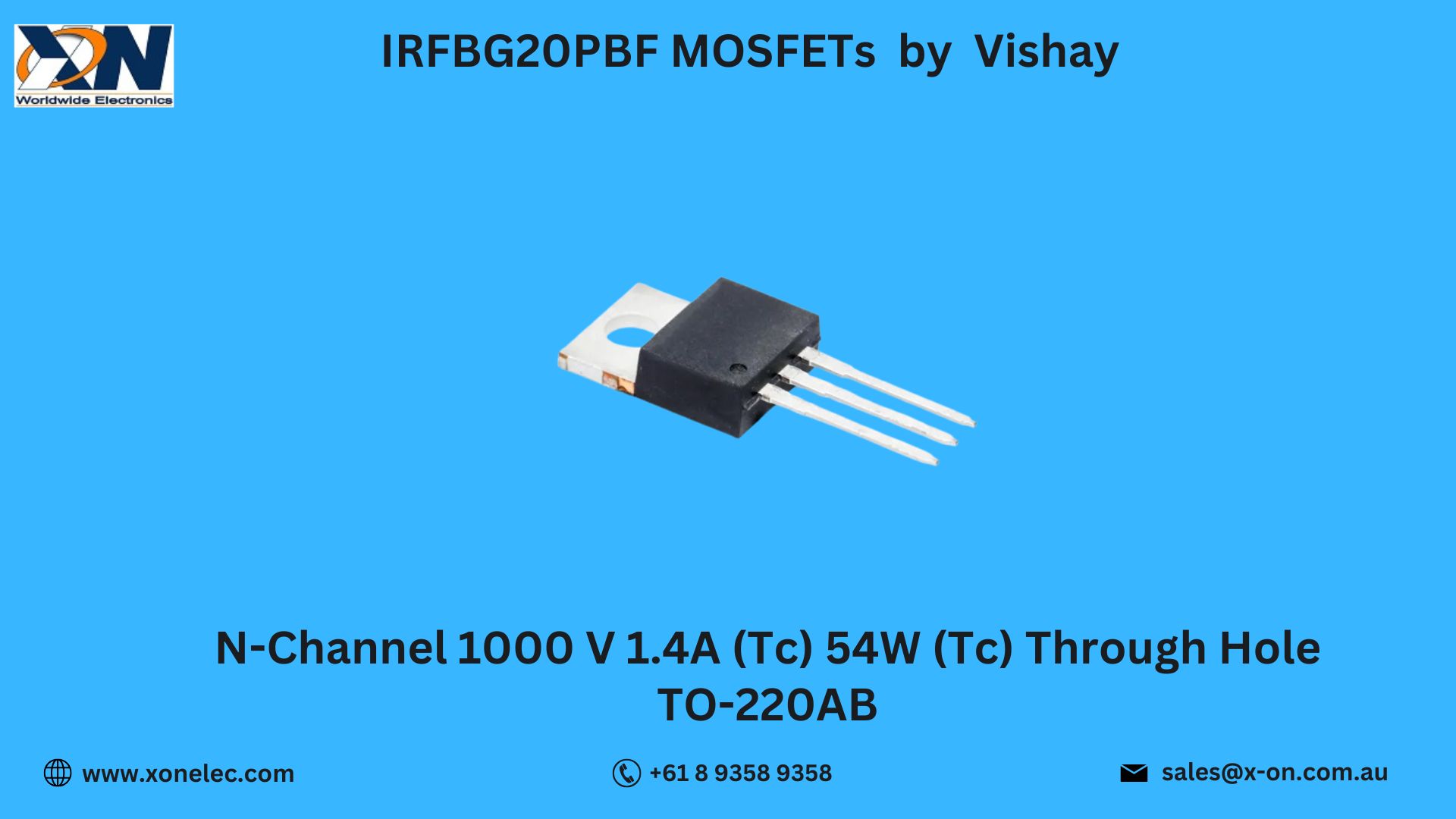

Product Overview – IRFBG20PBF N-Channel MOSFET

The Vishay IRFBG20PBF is an N-channel power MOSFET featuring fast switching capability, low gate charge, and low RDS(on). It is designed for applications where high-speed switching and efficient power conversion are critical. Packaged in a TO-220AB format, this device offers ease of mounting and excellent thermal dissipation.

Technical Specifications

• Part Number: IRFBG20PBF

• Manufacturer: Vishay

• Transistor Type: N-Channel MOSFET

• Drain-Source Voltage (VDS): 600V

• Continuous Drain Current (ID): 10.8A

• RDS(on) (max): 0.65?

• Gate Charge (Qg): 58nC

• Total Power Dissipation (PD): 125W

• Mounting Style: Through Hole (TO-220AB)

• Operating Temperature Range: -55°C to +150°C

• Compliance: RoHS

Key Features of IRFBG20PBF

1. High Voltage and Current Capability
   With a VDS rating of 600V and current rating up to 10.8A, the IRFBG20PBF MOSFETs by Vishay are suited for demanding power conversion systems.

2. Low RDS(on) for Reduced Losses
   Features a maximum RDS(on) of just 0.65 ohms, ensuring low conduction losses and efficient operation.

3. Fast Switching Performance
   Low gate charge and high-speed switching characteristics make this device ideal for high-frequency applications.

4. Rugged TO-220AB Package
   Ensures excellent heat dissipation and long operational life in high-power designs.

5. Environmentally Compliant
   These MOSFETs by Vishay are RoHS compliant and halogen-free, aligning with global environmental standards.

Applications of IRFBG20PBF MOSFETs

1. Switch Mode Power Supplies (SMPS)
   Used in primary side switching and synchronous rectification for high-efficiency designs.

2. Motor Drives and Inverters
   Provides fast and efficient power switching in variable frequency drives (VFDs) and servo controllers.

3. High-Efficiency Lighting Systems
   Applied in LED drivers and electronic ballast circuits for power-efficient operation.

4. DC-DC Converters
   Enables stable power regulation in portable electronics, telecom systems, and automotive modules.

5. Uninterruptible Power Supplies (UPS)
   Manages battery and line power switching for continuous power delivery.

Circuit Use & Integration Example

In a typical SMPS circuit, the IRFBG20PBF is used as a high-side or low-side switch, controlled by a PWM driver IC. It handles the conversion of AC to regulated DC by switching at high frequencies, enabling efficient energy conversion with minimal thermal losses.

Use Case Scenario – Industrial Motor Drive System

Scenario: A manufacturing plant is upgrading its motor drive systems for energy efficiency and reliability. The design team needs a high-voltage MOSFET with low conduction losses and excellent switching speed.

Implementation: The IRFBG20PBF MOSFETs by Vishay are chosen to power the high-frequency switching stage of the drive.

Benefits:

• Reduces energy loss and heat buildup

• Enables compact, high-efficiency designs

• Enhances long-term system reliability

Where to Buy Vishay IRFBG20PBF?

The IRFBG20PBF MOSFETs by Vishay are available at Xon Electronics, your trusted source for power semiconductors. We offer global delivery to the USA, India, Europe, Australia, and other countries, along with genuine parts, technical support, and fast order processing.

Conclusion

The IRFBG20PBF MOSFETs by Vishay combine high-voltage endurance, efficient switching, and durable construction to support today’s demanding power applications. Whether for SMPS, motor control, or industrial automation, these MOSFETs deliver outstanding performance.

Order now from Xon Electronics and power your next design with industry-leading MOSFETs by Vishay.

FAQs: Vishay IRFBG20PBF Power MOSFET

Q1. What is the voltage and current rating of IRFBG20PBF?
A: 600V and 10.8A respectively.

Q2. What is the typical application for this MOSFET?
A: SMPS, motor drives, LED drivers, and DC-DC converters.

Q3. What is the package type of this MOSFET?
A: TO-220AB, through-hole mounting.

Q4. Is it RoHS compliant?
A: Yes, it meets RoHS environmental standards.

Q5. Can it operate at high frequencies?
A: Yes, thanks to its low gate charge and fast switching characteristics.

Q6. Where can I purchase it globally?
A: From Xon Electronics, with shipping to the USA, India, Europe, Australia, and more.
