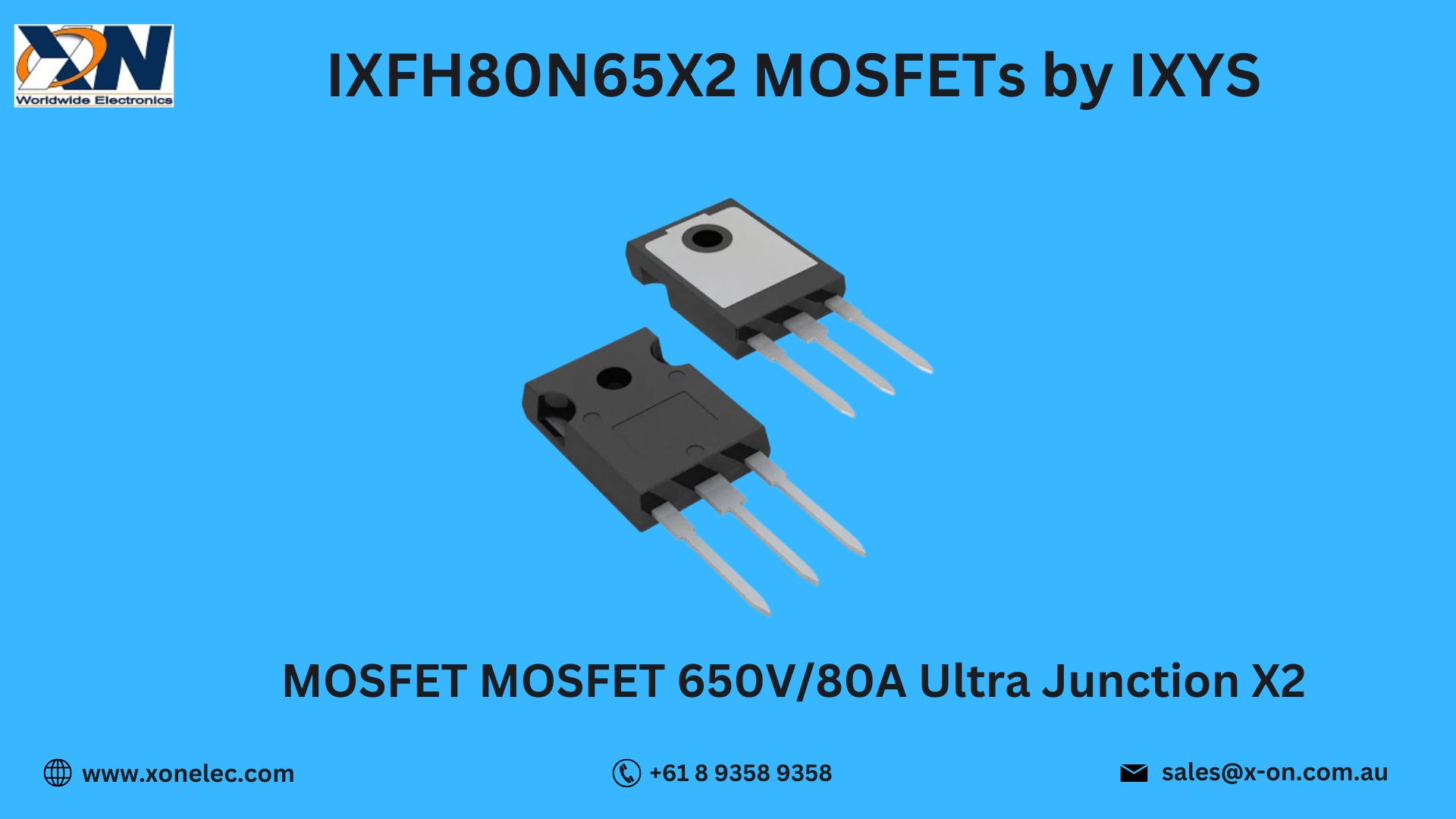

IXFH80N65X2 MOSFETs by IXYS – High-Performance Switching for Power Applications
The MOSFETs IXFH80N65X2 by IXYS are advanced power transistors designed to handle high voltage and current requirements with exceptional efficiency. These Semiconductors, Discrete Semiconductors, Transistors, MOSFETs by IXYS deliver superior switching performance, low conduction losses, and robust reliability—making them an excellent choice for demanding industrial, automotive, and renewable energy systems.
In this blog, we’ll explore the technical specifications, key features, applications, wiring configuration, and where to buy the IXFH80N65X2 from Xon Electronics. If you’re looking for dependable and high-performance MOSFET solutions, this is a top contender.
Technical Specifications of IXFH80N65X2
-
Manufacturer: IXYS
-
Part Number: IXFH80N65X2
-
Type: N-Channel Power MOSFET
-
Drain-Source Voltage (Vds): 650V
-
Continuous Drain Current (Id): 80A
-
Rds(on) Max: 39 mO
-
Gate Charge (Qg): Low for fast switching
-
Package: TO-264 (Fullpack)
-
Operating Temperature Range: -55°C to +150°C
-
Category: Semiconductors, Discrete Semiconductors, Transistors, MOSFETs by IXYS
-
Applications: High-power switching, motor drives, inverters, power supplies
This component is engineered to meet global safety and performance standards, ensuring reliable use in harsh operating environments.
Key Features of IXFH80N65X2
-
High Voltage Capability – 650V Vds rating for demanding applications
-
High Current Handling – Supports continuous drain current up to 80A
-
Low Rds(on) – Reduces conduction losses for greater efficiency
-
Fast Switching – Ideal for high-frequency power conversion
-
Rugged Design – Enhanced avalanche energy capability for reliability
-
Thermal Efficiency – TO-264 package for superior heat dissipation
These attributes make the IXFH80N65X2 a leader in Semiconductors, Discrete Semiconductors, Transistors, MOSFETs by IXYS for high-power switching.
Applications of IXFH80N65X2
The IXFH80N65X2 MOSFET is suited for applications that demand both high voltage and current handling:
-
Industrial motor drives and controllers
-
Renewable energy systems (solar inverters, wind power converters)
-
High-power SMPS (Switch Mode Power Supplies)
-
Uninterruptible Power Supplies (UPS)
-
Automotive power systems
-
Welding equipment and induction heating
Whether for renewable energy integration or industrial automation, these MOSFETs by IXYS ensure efficiency and stability.
Wiring and Connection Overview
Typical connection for the IXFH80N65X2 MOSFET:
-
Drain (D) – Connected to load or high-voltage bus
-
Source (S) – Connected to ground or return path
-
Gate (G) – Driven by a gate driver circuit for switching control
Proper heat sinking is recommended for optimal performance in continuous high-load applications.
Use Case Scenario: Solar Power Inverter Upgrade
Scenario: A renewable energy integrator needed a MOSFET capable of handling high voltages and currents with minimal heat loss.
Problem: Previous MOSFETs suffered from high conduction losses and thermal stress.
Solution: The IXFH80N65X2 offered low Rds(on), high efficiency, and robust avalanche capability.
Result: Improved inverter efficiency, reduced heat generation, and extended system life.
Download Datasheet for IXFH80N65X2
For complete specifications, thermal characteristics, and pin configuration:
Download IXFH80N65X2 Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics provides genuine IXYS MOSFETs including the IXFH80N65X2 with:
- 100% Authentic IXYS Products
- Global Shipping – USA, India, Australia, Europe & more
- Bulk Pricing for OEMs and Distributors
- Technical Support for Product Selection
- Secure Online Ordering
Conclusion
The IXFH80N65X2 MOSFETs by IXYS combine high voltage capability, fast switching, and low conduction losses, making them ideal for industrial, renewable, and high-power electronic systems. These Semiconductors, Discrete Semiconductors, Transistors, MOSFETs by IXYS are available now at Xon Electronics with worldwide shipping to the USA, India, Australia, Europe, and beyond.
FAQs – IXFH80N65X2 MOSFET
Q1. What is the Vds rating of the IXFH80N65X2?
A1. It has a drain-source voltage rating of 650V.
Q2. How much current can it handle?
A2. It supports continuous drain current up to 80A.
Q3. What package is it available in?
A3. It comes in a TO-264 (Fullpack) package.
Q4. Can it be used in high-frequency applications?
A4. Yes, it is designed for fast switching in high-frequency converters.
Q5. Where can I buy it globally?
A5. At www.xonelec.com with shipping to USA, India, Australia, Europe, and other countries.
