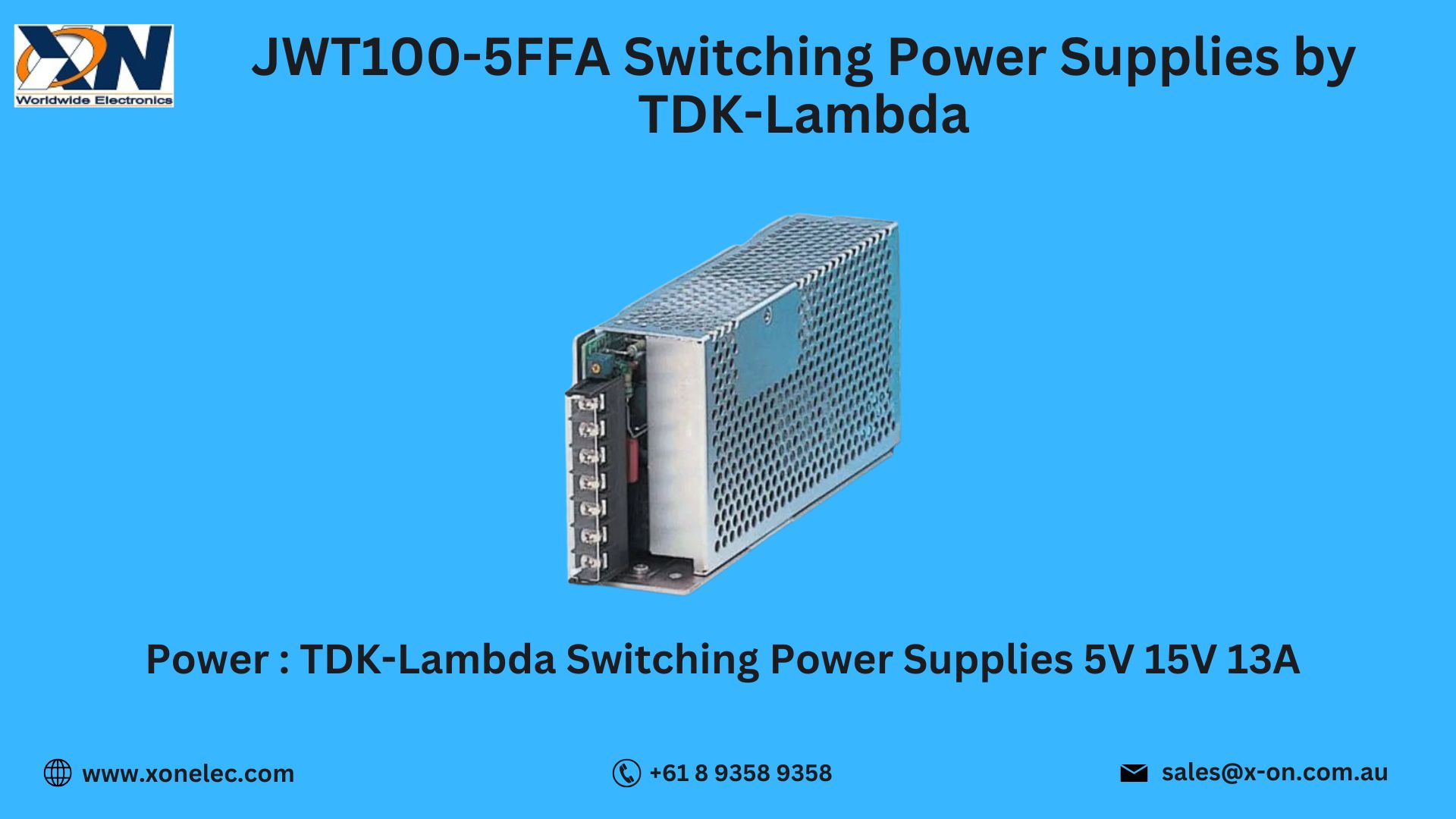

JWT100-5FFA Switching Power Supplies by TDK-Lambda – Reliable and Compact Power for Industrial Systems
The Switching Power Supplies JWT100-5FFA by TDK-Lambda are compact and high-performance AC-DC converters designed to provide stable Power in industrial, medical, and embedded applications. With 100W output power and robust protection features, these Switching Power Supplies ensure long-term reliability and safety in critical environments.
In this blog, we’ll explore technical details, key features, applications, wiring instructions, and how to download the datasheet or purchase from Xon Electronics. For engineers and system designers looking for dependable Power Supplies, this model is a smart choice.
Technical Specifications of JWT100-5FFA
-
Manufacturer: TDK-Lambda
-
Model: JWT100-5FFA
-
Type: Switching Power Supplies
-
Output Voltage: 5V DC
-
Output Current: 20A
-
Output Power: 100W
-
Input Voltage Range: 85–265V AC
-
Efficiency: Up to 80%
-
Form Factor: Open-frame
-
Safety Approvals: UL, CSA, EN certified
-
Operating Temperature: 0°C to +50°C
-
Category: Power, Power Supplies, Switching Power Supplies
This unit delivers reliable and efficient Power for sensitive electronic systems requiring regulated output.
Key Features of JWT100-5FFA
-
Compact open-frame design for flexible integration
-
Universal AC input (85–265V) for global applications
-
Overvoltage and overcurrent protection for safe operation
-
Natural convection cooling for noise-free performance
-
Suitable for medical and industrial-grade systems
The JWT100-5FFA Switching Power Supplies by TDK-Lambda are a trusted solution for applications requiring continuous and stable Power delivery.
Applications of JWT100-5FFA
-
Industrial control and automation systems
-
Medical diagnostic and imaging equipment
-
Telecommunications and networking hardware
-
Laboratory instruments and test systems
-
Embedded computing platforms requiring 5V rails
This model is widely adopted in industries where reliable Switching Power Supplies are critical for system uptime and performance.
Installation and Configuration Overview
Setting up the JWT100-5FFA is simple:
-
Connect AC mains to the input terminals with proper grounding
-
Wire the DC output to your load, ensuring correct polarity (5V, 20A)
-
Monitor startup voltages and currents for stability
-
Place in a ventilated enclosure to allow natural convection cooling
The open-frame design makes it easy to integrate into compact and modular Power Supplies architectures.
Use Case Scenario: Powering Embedded Medical Equipment
Scenario: A medical device manufacturer needed a compact, regulated Power Supply for embedded diagnostic hardware.
Problem: Larger enclosed units lacked airflow compatibility and were too noisy for hospital settings.
Solution: The JWT100-5FFA Switching Power Supplies by TDK-Lambda offered silent convection cooling, a compact footprint, and safety certifications for medical applications.
Result: Reduced design complexity, improved patient environment, and higher system reliability.
This showcases why Switching Power Supplies are essential for medical-grade and industrial Power systems.
Download Datasheet for JWT100-5FFA
Need output specs, dimensions, or compliance certificates?
Download JWT100-5FFA Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics supplies authentic TDK-Lambda Power Supplies, offering:
-
100% Genuine JWT100-5FFA Products
-
Shipping to USA, India, Australia, Europe & more
-
OEM and Bulk Order Pricing Available
-
Technical Support for Integration and Selection
-
Secure Ordering at www.xonelec.com
Choose Xon Electronics for reliable and certified Switching Power Supplies.
FAQs – JWT100-5FFA Switching Power Supplies by TDK-Lambda
Q1. What is the output voltage and current?
It provides 5V DC at 20A, totaling 100W.
Q2. Is this unit suitable for medical devices?
Yes, it meets key safety certifications for medical and industrial use.
Q3. Does it require forced cooling?
No, it uses natural convection cooling for silent operation.
Q4. Can I use it globally?
Yes, the universal AC input supports 85–265V.
Q5. Where can I purchase JWT100-5FFA worldwide?
At www.xonelec.com, with delivery to USA, India, Australia, Europe & more.
Conclusion
The JWT100-5FFA Switching Power Supplies by TDK-Lambda combine compact size, efficiency, and robust protection for reliable Power delivery in industrial and medical environments. Shop now from Xon Electronics for genuine products and global shipping to meet your project needs.
