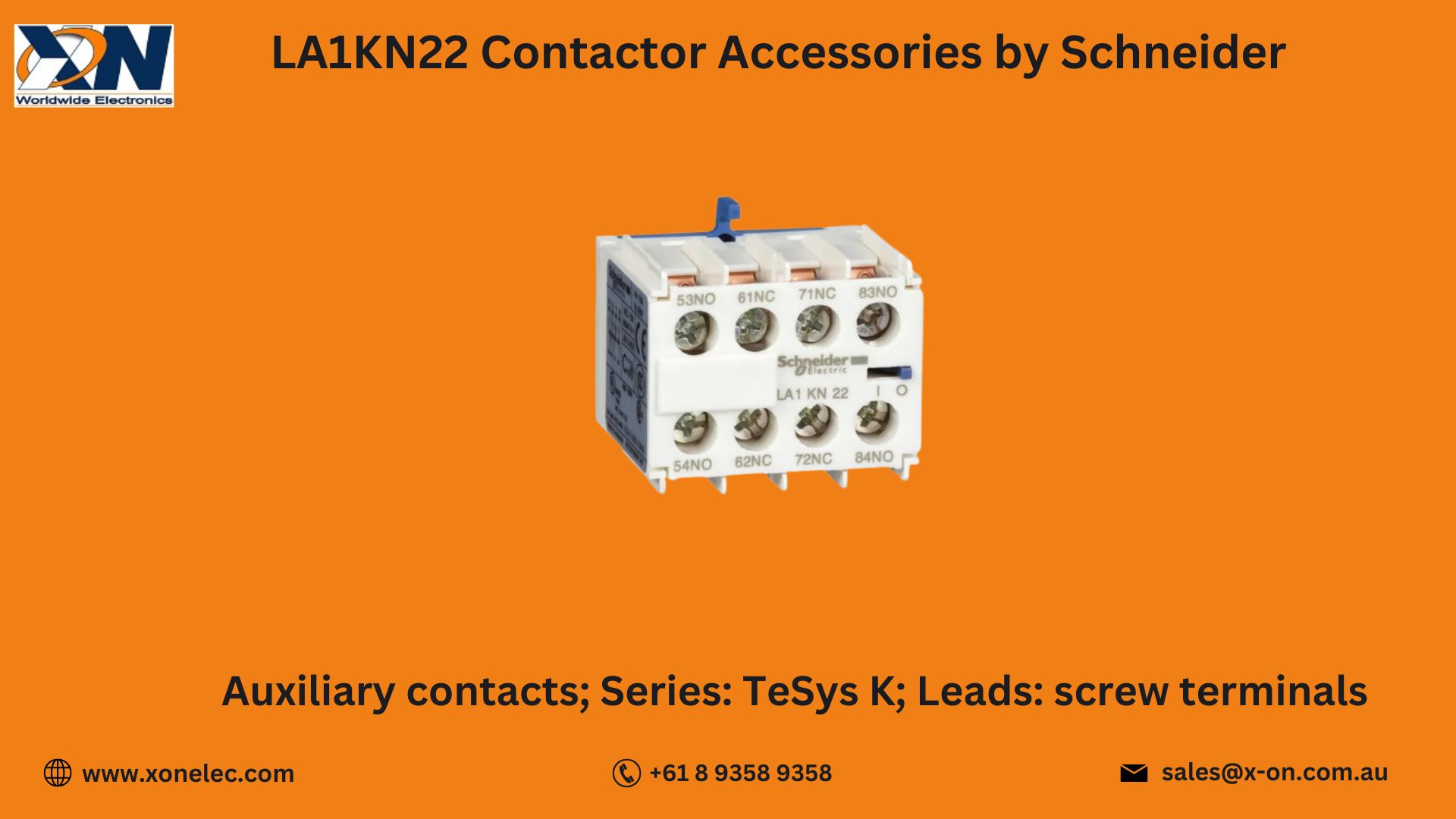

LA1KN22 Contactor Accessories by Schneider – Enhance Your Control Systems
The Contactor Accessories LA1KN22 by Schneider are trusted components that add functionality and flexibility to your contactor setups. Built for reliable integration in Electromechanical and Industrial Automation systems, these auxiliary contact blocks are essential in expanding the operational range of control panels and contactors.
This article outlines the features, specifications, and applications of Contactor Accessories by Schneider, making a strong case for their integration in professional automation environments.
Technical Specifications of LA1KN22
-
Manufacturer: Schneider Electric
-
Part Number: LA1KN22
-
Type: Auxiliary Contact Block
-
Contact Configuration: 2 NO + 2 NC (Normally Open + Normally Closed)
-
Mounting Type: Snap-on Front Mount
-
Compatibility: TeSys K and other Schneider contactors
-
Electrical Rating: AC-15 / DC-13, 6A @ 230V AC
-
Standards: IEC 60947, RoHS compliant
-
Category: Electromechanical, Industrial Automation, Contactors, Contactor Accessories by Schneider
This auxiliary block is designed for seamless integration with TeSys contactors, ensuring quick upgrades and efficient circuit extension.
Key Features of LA1KN22
-
Dual Contact Design (2NO+2NC) – Enables versatile signaling and interlocking
-
Easy Snap-On Mounting – Saves installation time with tool-less integration
-
High Mechanical Durability – Over 10 million operations
-
Compact & Lightweight – Fits easily into tight control cabinets
-
Global Standards Compliance – Ensures compatibility and safety
Whether used for status indication, control logic, or interlocks, LA1KN22 Contactor Accessories by Schneider deliver long-term reliability.
Applications of LA1KN22 Contactor Accessories
LA1KN22 Contactor Accessories by Schneider are essential in:
-
Motor Starters & Reversing Circuits
-
Lighting and Load Control Panels
-
HVAC and Building Automation
-
Assembly Line Controls
-
Emergency Stop and Safety Circuits
-
Industrial Automation Cabinets
These Contactor Accessories by Schneider ensure that your control systems remain adaptable, responsive, and compliant with industrial standards.
Installation Overview
Step 1: Ensure the main contactor is de-energized
Step 2: Align LA1KN22 with the front of the contactor
Step 3: Snap the accessory firmly into place
Step 4: Wire the auxiliary terminals to the control circuit
Step 5: Test function before energizing the system
Installation is intuitive, and the unit locks securely onto Schneider contactors without requiring additional tools.
Use Case Scenario: Status Feedback in Control Panels
Scenario: A building automation contractor needed reliable auxiliary contacts to signal motor states in a fire pump control system.
Problem: Limited panel space and unreliable feedback signals with existing contacts.
Solution: The compact LA1KN22 Contactor Accessories by Schneider offered 2NO+2NC contacts, quick installation, and robust performance.
Result: Improved monitoring, reduced installation time, and reliable alarm integration.
This proves how Electromechanical, Industrial Automation, Contactors, Contactor Accessories by Schneider offer practical solutions in critical automation tasks.
Download Datasheet for LA1KN22
Need more technical details or dimensions?
Download LA1KN22 Datasheet from Xon Electronics
Why Choose Xon Electronics?
Xon Electronics offers premium Contactor Accessories by Schneider, including LA1KN22, with:
- Verified Quality & Genuine Schneider Components
- Global Shipping – USA, India, Australia, Europe & more
- Bulk Order Support for OEMs & Integrators
- Tech Documentation & Expert Support
- Secure Checkout & Rapid Fulfillment
Visit www.xonelec.com and streamline your automation needs today.
?? Conclusion
The LA1KN22 Contactor Accessories by Schneider are a dependable, high-performance solution for extending the functionality of your control systems. With its robust dual contact configuration and tool-less snap-on design, it stands out among Electromechanical, Industrial Automation, Contactors, Contactor Accessories by Schneider as a must-have component for modern panel design.
FAQs – LA1KN22 by Schneider
Q1. How many contacts does the LA1KN22 have?
It offers 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts.
Q2. Is it compatible with all Schneider contactors?
It’s specifically designed for TeSys K and related Schneider Electric models.
Q3. Can it be mounted on a live contactor?
No, always disconnect power before installation.
Q4. What are its typical use cases?
Status signaling, interlocks, and command extensions in motor and automation control.
Q5. Where can I buy it globally?
Purchase LA1KN22 Contactor Accessories by Schneider from www.xonelec.com with shipping across USA, India, Australia, Europe, and other countries.
