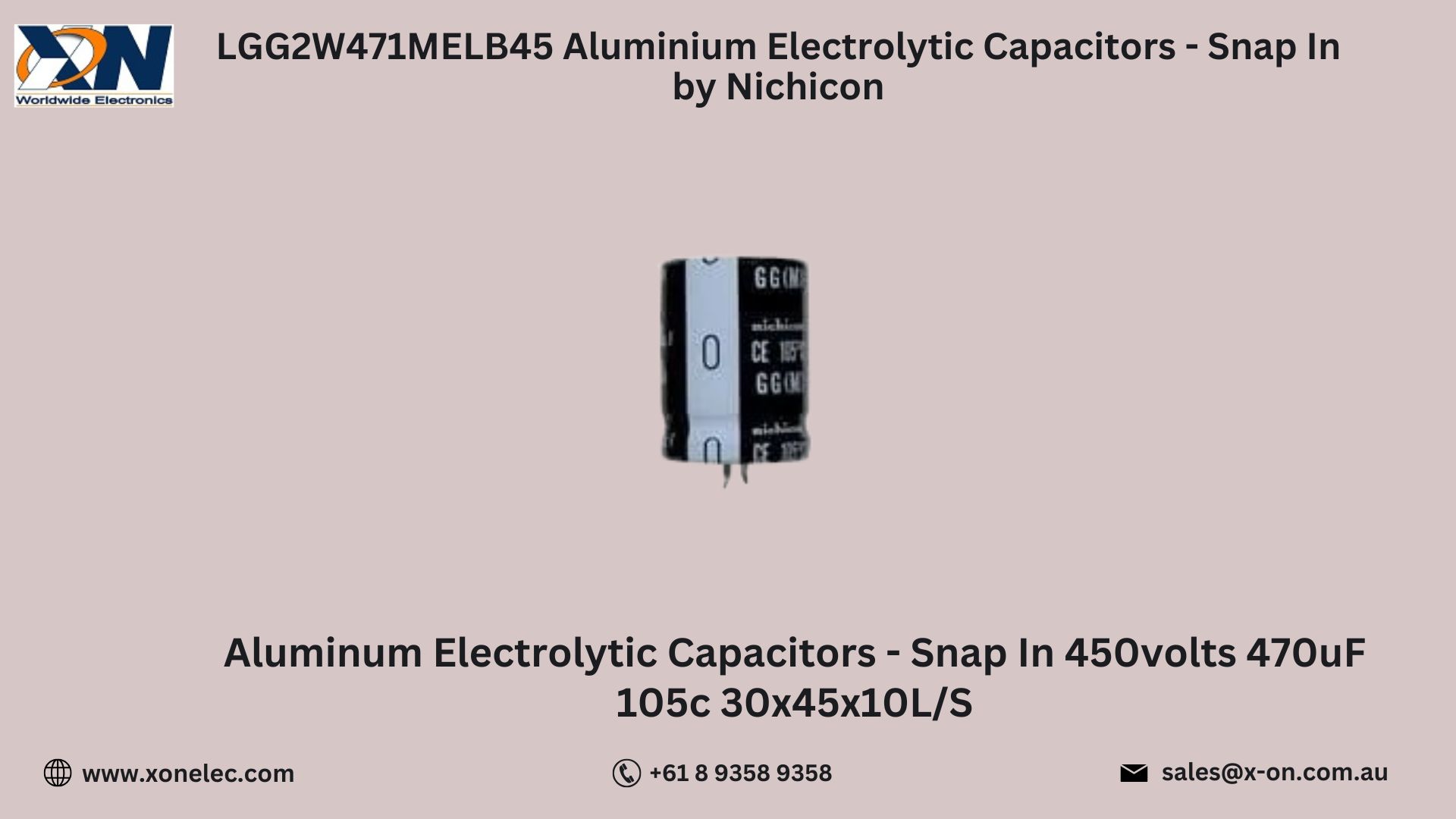

LGG2W471MELB45 Aluminium Electrolytic Capacitors - Snap In by Nichicon – High-Capacitance Solutions for Reliable Power
In demanding power applications, Aluminium Electrolytic Capacitors - Snap In LGG2W471MELB45 by Nichicon provide exceptional performance, long life, and stable operation. These Aluminium Electrolytic Capacitors - Snap In by Nichicon are designed for use in industrial power supplies, UPS systems, and high-voltage converters where performance and durability are key.
With Nichicon’s trusted quality, these Capacitors deliver optimized energy storage and filtering for today’s power electronics and form a critical part of your Passive Components lineup.
Technical Specifications of LGG2W471MELB45
-
Manufacturer: Nichicon
-
Series: LGG
-
Capacitance: 470 µF
-
Voltage Rating: 450V
-
Mounting Type: Snap-In
-
Ripple Current: 1.65 A RMS (at 105°C, 120Hz)
-
Tolerance: ±20%
-
Operating Temperature Range: -25°C to +105°C
-
Lifetime: 2000 hours at 105°C
-
Category: Passive Components, Capacitors, Aluminium Electrolytic Capacitors - Snap In by Nichicon
Built to handle high ripple currents and voltages, these Aluminium Electrolytic Capacitors - Snap In by Nichicon are ideal for power-intensive environments.
Key Features of LGG2W471MELB45
-
High Voltage Rating (450V) – Suitable for industrial and power grid applications
-
Snap-In Mounting – Secure and quick PCB assembly
-
Long Life (2000 hours at 105°C) – Ensures reliability in continuous operations
-
Stable ESR & Low Leakage – Reduces energy loss
-
Compact Design – Saves PCB space in power circuits
These characteristics make LGG2W471MELB45 Aluminium Electrolytic Capacitors - Snap In by Nichicon essential Passive Components in modern high-reliability systems.
Applications of Nichicon LGG2W471MELB45 Capacitors
These Capacitors are ideal for:
-
Switch Mode Power Supplies (SMPS)
-
Uninterruptible Power Supplies (UPS)
-
Frequency Converters
-
Industrial Inverters
-
Medical Equipment
-
High-Voltage Audio Systems
Wherever high-capacity energy storage and filtering are needed, Aluminium Electrolytic Capacitors - Snap In by Nichicon provide lasting performance.
Installation Overview
Step 1: Ensure the capacitor polarity matches PCB layout
Step 2: Snap leads into through-holes
Step 3: Solder with appropriate temperature/time settings
Step 4: Inspect for proper lead seating and secure fit
Step 5: Conduct ripple and leakage current testing
The snap-in feature simplifies mounting and maintenance in high-density circuit boards, making these Capacitors a favorite for OEM designers and engineers.
Use Case Example: High-Power Industrial Inverter
Challenge: An industrial inverter system needed high-capacity filtering for ripple suppression and power stability.
Solution: Engineers implemented LGG2W471MELB45 Aluminium Electrolytic Capacitors - Snap In by Nichicon due to their 450V rating and reliable thermal performance.
Result: Improved system longevity, stable output, and enhanced power handling.
This proves the value of integrating high-quality Aluminium Electrolytic Capacitors - Snap In by Nichicon in critical infrastructure projects.
Download Datasheet for LGG2W471MELB45
Need detailed specs and application guidelines?
Download Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Choose Xon Electronics for your Passive Components needs:
- 100% Genuine Nichicon Components
- Shipping to USA, India, Australia, Europe & other regions
- Datasheets, Technical Help & Live Support
- Ideal for OEMs, Maintenance & Engineers
- Secure Checkout & Fast Global Delivery
Explore www.xonelec.com to order your Aluminium Electrolytic Capacitors - Snap In by Nichicon today.
Conclusion
Whether you’re designing power electronics or replacing aged Capacitors, the LGG2W471MELB45 Aluminium Electrolytic Capacitors - Snap In by Nichicon offer a robust, dependable solution. With their high voltage rating, compact design, and extended life, they exemplify the best in Passive Components.
Upgrade your power systems with the confidence and quality only Nichicon can deliver.
FAQs – LGG2W471MELB45 Capacitors by Nichicon
Q1. Is this capacitor suitable for high-temperature operation?
Yes, it operates reliably up to 105°C with a rated life of 2000 hours.
Q2. Can I use this in audio amplifiers?
Yes, it’s suitable for high-voltage filtering in audio systems.
Q3. Are Nichicon capacitors RoHS compliant?
Yes, they meet RoHS standards for environmental compliance.
Q4. What’s the lead spacing for snap-in mounting?
Standard spacing suitable for 450V snap-in types; check datasheet for exact measurements.
Q5. Where can I buy this globally?
Order LGG2W471MELB45 Aluminium Electrolytic Capacitors - Snap In by Nichicon from www.xonelec.com with delivery to USA, India, Australia, Europe, and more.
