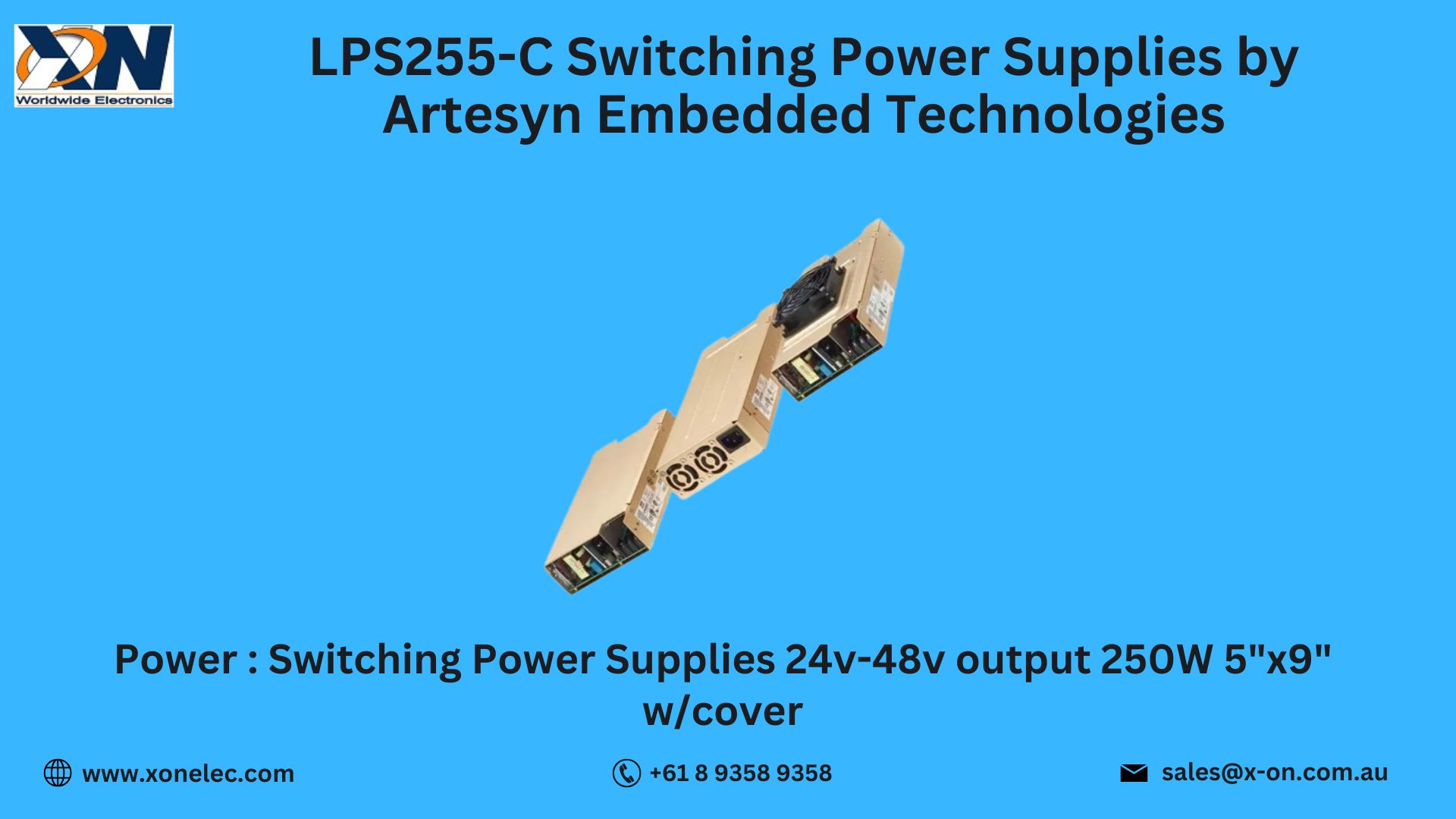

LPS255-C Switching Power Supplies by Artesyn – Compact 250W AC-DC Power for Industrial & Medical Use
The Switching Power Supplies LPS255-C by Artesyn Embedded Technologies are compact, open-frame Power Supplies delivering 250W of output power for a wide range of industrial and medical applications. These high-efficiency units offer global input voltage support, robust thermal performance, and compliance with medical safety standards, making them a preferred choice where size, reliability, and safety are crucial.
In this blog, we’ll explore the technical specifications, standout features, applications, wiring overview, real-world case usage, and how to download the datasheet or buy from Xon Electronics. Whether you’re integrating compact control systems or medical equipment, the LPS255-C Switching Power Supplies are a trusted Power solution.
Technical Specifications of LPS255-C
-
Manufacturer: Artesyn Embedded Technologies
-
Model: LPS255-C
-
Type: Switching Power Supplies
-
Output Power: 250W (with airflow) / 180W (convection-cooled)
-
Output Voltage: 24V DC
-
Input Voltage: 85–264V AC
-
Efficiency: Up to 90%
-
Form Factor: Open-frame, 3” x 5” footprint
-
Safety Approvals: IEC60601-1 (medical), UL, CSA, TUV
-
Cooling: Convection or forced air
-
Category: Power, Power Supplies, Switching Power Supplies
Compact yet capable, the LPS255-C meets stringent power delivery requirements in both industrial automation and medical environments.
Key Features of LPS255-C Power Supply
-
Compact 3” x 5” open-frame design
-
Medical-grade certifications and leakage current < 300µA
-
High efficiency with active power factor correction
-
Capable of operating with or without forced air cooling
-
Global input voltage support (85–264V AC)
The LPS255-C Switching Power Supplies by Artesyn are engineered to maximize efficiency and reliability in space-constrained Power Supplies environments.
Applications of LPS255-C
-
Medical instrumentation and patient monitoring devices
-
Industrial control systems and automation panels
-
Network and telecommunication equipment
-
Test and measurement systems
-
Portable or embedded electronics requiring compact Power
Its compact size and compliance make the LPS255-C a go-to for OEMs integrating advanced Switching Power Supplies.
Wiring and Connection Overview
For wiring the LPS255-C:
-
AC Input Terminals: Connect Line (L), Neutral (N), and Earth (?)
-
DC Output Terminals: V+ (24V DC) and V- (Ground)
-
Ensure proper airflow or use external fan if full 250W output is required
-
Optional remote sense and control features available via pin headers
This versatile Power Supply is easy to implement in tight spaces without compromising performance.
Use Case Scenario: Medical Patient Monitoring System
Scenario: A medical equipment manufacturer needed a compact, reliable Power Supply with medical safety certification.
Problem: Off-the-shelf supplies were too large or lacked necessary approvals.
Solution: The LPS255-C Switching Power Supplies by Artesyn provided 250W of clean power with medical-grade certifications.
Result: Faster regulatory approval, reliable device performance, and space-saving integration.
This showcases the LPS255-C’s value in regulated industries requiring precision Power Supplies.
Download Datasheet for LPS255-C
Need detailed specs, certifications, or mounting info?
Download LPS255-C Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics is a trusted distributor of genuine Switching Power Supplies like the LPS255-C with:
-
100% Authentic Artesyn Products
-
Fast Worldwide Delivery: USA, India, Australia, Europe & more
-
OEM Discounts and Volume Pricing
-
Application Support and Technical Help
-
Safe, Secure Ordering via www.xonelec.com
Discover premium Power components with global support.
FAQs – LPS255-C Switching Power Supply
Q1. What is the output voltage of LPS255-C?
24V DC with up to 250W (with airflow).
Q2. Is it suitable for medical applications?
Yes, it meets IEC60601-1 medical standards.
Q3. Can I use it in industrial automation?
Absolutely. It’s designed for high reliability in such systems.
Q4. What’s the footprint size of this power supply?
Compact 3” x 5” open-frame design.
Q5. Where can I buy this globally?
Available at www.xonelec.com with shipping to USA, India, Australia, Europe, and more.
Conclusion
The LPS255-C Switching Power Supplies by Artesyn Embedded Technologies are compact, high-efficiency, and certified for medical and industrial environments alike. With global voltage input, medical-grade safety, and exceptional reliability, this unit is a perfect choice for engineers building modern embedded or high-availability Power systems. Order now from Xon Electronics for trusted, global delivery.
