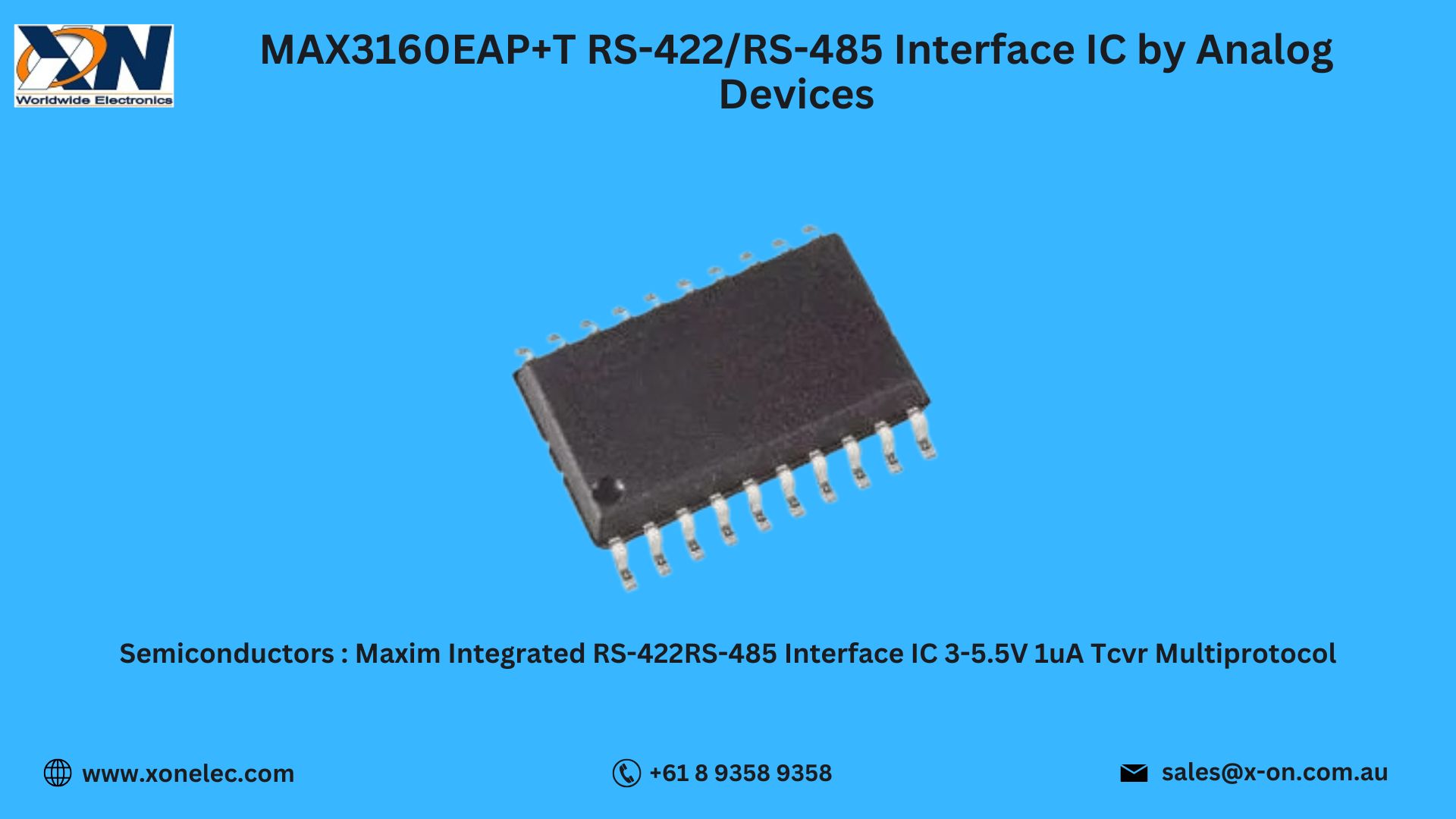

MAX3160EAP+T RS-422/RS-485 Interface IC by Analog Devices – Reliable Communication for Industrial Systems
The RS-422/RS-485 Interface IC MAX3160EAP+T by Analog Devices is a highly versatile solution for robust serial data communication in industrial and embedded systems. As part of Analog Devices’ trusted Semiconductors range, this RS-422/RS-485 Interface IC offers advanced features like low power consumption, EMI protection, and flexible configurations for reliable data transfer over long distances.
This blog explores technical specifications, features, and applications of this premium Interface IC.
Technical Specifications of MAX3160EAP+T
-
Manufacturer: Analog Devices
-
Model: MAX3160EAP+T
-
Type: RS-422/RS-485 Interface IC
-
Data Rate: Up to 250kbps
-
Supply Voltage: 3V to 5.5V
-
Driver/Receiver Configuration: Dual Driver/Dual Receiver
-
Features: Auto-Direction Control, Low Power Shutdown Mode
-
ESD Protection: ±15kV
-
Category: Semiconductors, Integrated Circuits - ICs, Interface ICs, RS-422/RS-485 Interface IC
This Integrated Circuit - IC is designed for engineers seeking efficient and robust serial data communication solutions.
Key Features of MAX3160EAP+T RS-422/RS-485 Interface IC
-
Dual driver/receiver channels for flexible applications
-
Low power standby mode for energy-efficient systems
-
Integrated slew-rate limiting for reduced EMI emissions
-
±15kV ESD protection ensures durability in harsh environments
-
Premium Semiconductors solution by Analog Devices
The MAX3160EAP+T RS-422/RS-485 Interface IC combines reliability and performance for industrial-grade applications.
Applications of MAX3160EAP+T RS-422/RS-485 Interface IC
-
Industrial automation networks and PLC systems
-
Building management and HVAC systems
-
Embedded systems requiring serial communication
-
Energy management devices
-
Designs utilizing Interface ICs for robust communication
This RS-422/RS-485 Interface IC is ideal for noise-sensitive environments demanding long-distance data transmission.
Installation and Handling Overview
To integrate MAX3160EAP+T effectively:
-
Connect RS-422/RS-485 lines using recommended termination resistors.
-
Ensure proper supply voltage between 3V to 5.5V.
-
Use appropriate PCB design practices for EMI-sensitive applications.
Always follow Analog Devices’ datasheet guidelines when handling this Interface IC.
Use Case Scenario: Reliable Communication in Building Automation
Scenario: An engineering team needed a compact and robust RS-422/RS-485 Interface IC for a building management system.
Problem: Previous ICs struggled with EMI issues and lacked energy efficiency.
Solution: The MAX3160EAP+T by Analog Devices provided superior EMI protection and low power consumption.
Result: Achieved reliable data transfer, reduced power usage, and improved system stability.
Download Datasheet for MAX3160EAP+T
Download MAX3160EAP+T Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics offers genuine Analog Devices RS-422/RS-485 Interface ICs with:
-
100% Authentic Products for Critical Applications
-
Fast Global Shipping: USA, India, Australia, Europe & more
-
Bulk Order Discounts for OEMs
-
Technical Support for Seamless Integration
-
Secure Online Ordering at www.xonelec.com
FAQs – MAX3160EAP+T RS-422/RS-485 Interface IC by Analog Devices
Q1. What is the data rate of MAX3160EAP+T?
It supports data rates up to 250kbps.
Q2. Can it handle EMI-prone environments?
Yes, with built-in slew-rate limiting and ±15kV ESD protection.
Q3. Is it suitable for industrial automation?
Absolutely, it’s designed for rugged industrial systems and embedded applications.
Q4. Does Xon Electronics ship globally?
Yes, to USA, India, Australia, Europe & other countries.
Conclusion
The MAX3160EAP+T RS-422/RS-485 Interface IC by Analog Devices provides robust, efficient, and compact solutions for industrial and embedded systems. As a leading Semiconductors and Interface IC, it ensures seamless communication even in challenging environments. Buy today from Xon Electronics for worldwide delivery and support.
