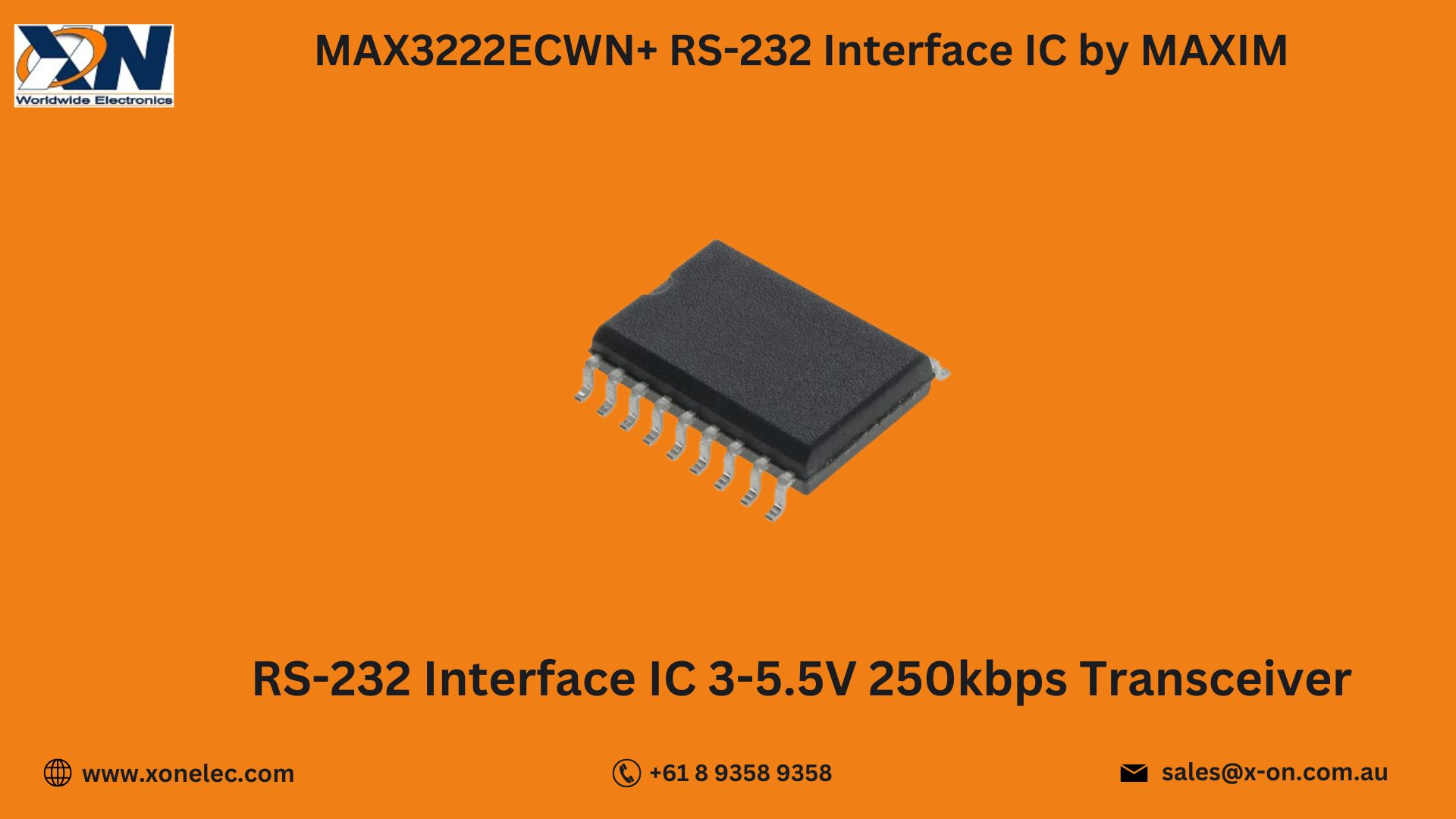

MAX3222ECWN+ RS-232 Interface IC by MAXIM – Efficient Serial Communication for Embedded Designs
The RS-232 Interface IC MAX3222ECWN+ by MAXIM is a dual driver/receiver that enables reliable RS-232 serial communication in embedded systems, industrial controllers, and portable devices. Designed for low-power operation with integrated charge pumps, this IC simplifies RS-232 signal conversion between TTL/CMOS logic levels and standard RS-232 levels.
In this blog, we’ll explore the technical specs, features, and applications of the MAX3222ECWN+ RS-232 Interface IC by MAXIM, and why it remains a go-to component for modern serial communication needs.
Technical Specifications of MAX3222ECWN+
-
Manufacturer: MAXIM Integrated
-
Part Number: MAX3222ECWN+
-
Type: RS-232 Transceiver (Driver/Receiver)
-
Voltage Range: 3.0V to 5.5V
-
Data Rate: Up to 250 kbps
-
Number of Drivers/Receivers: 2 TX / 2 RX
-
ESD Protection: ±15kV Human Body Model (HBM)
-
Charge Pump: Yes, onboard (no external capacitors required)
-
Shutdown Mode: Yes, with low-power operation
-
Package: 16-SOIC (Narrow)
-
Temperature Range: -40°C to +85°C
-
RoHS Compliant: Yes
The MAX3222ECWN+ RS-232 Interface IC by MAXIM delivers seamless serial interfacing with reduced power consumption and enhanced protection, ideal for space-constrained and battery-powered applications.
Key Features of MAX3222ECWN+ Interface IC
-
No External Capacitors Needed – Built-in charge pump simplifies design
-
Low Power Consumption – Ideal for portable and embedded devices
-
Full RS-232 Compliance – Meets EIA/TIA-232 and V.28 specifications
-
±15kV ESD Protection – Enhances reliability in harsh environments
-
Up to 250 kbps Data Rate – Supports high-speed asynchronous data transfer
These features make RS-232 Interface IC by MAXIM components highly dependable for robust and efficient serial communication.
Applications of MAX3222ECWN+ RS-232 IC
The MAX3222ECWN+ is widely used in:
-
Microcontroller-Based Systems (UART Interface)
-
Point-of-Sale Terminals
-
Networking Devices and Routers
-
Industrial Control Systems
-
Medical Equipment Interfaces
-
Handheld and Portable Devices
Whether you’re designing a serial interface for an industrial PLC or a compact handheld device, RS-232 Interface IC by MAXIM ensures reliable data transmission with minimum design effort.
Wiring and Connection Overview
Typical Setup:
MCU TX/RX - MAX3222ECWN+ - RS-232 Cable ? PC/Peripheral
(VCC: 3.3V or 5V; GND; SHDN pin optional for power management)
With its integrated charge pump and internal logic-level translation, this IC can be dropped into designs without requiring external capacitors or extra drivers.
Use Case Scenario: Serial Debug Interface for IoT Gateway
Scenario: An IoT developer required RS-232 connectivity to debug a Linux-based gateway device using a laptop.
Problem: Existing solutions required large external capacitors and consumed excessive power.
Solution: The MAX3222ECWN+ RS-232 Interface IC by MAXIM offered a compact, capacitor-less solution with low power draw.
Result: Cleaner board layout, lower BOM cost, and seamless RS-232 communication.
Download Datasheet for MAX3222ECWN+
Need pin diagrams, electrical specs, or timing charts?
Download MAX3222ECWN+ Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics is your reliable source for RS-232 Interface IC by MAXIM, offering:
- 100% Genuine MAXIM Components
- Global Delivery – USA, India, Australia, Europe & more
- Ready-to-Ship Inventory with Volume Discounts
- Expert Technical Support
- Secure Checkout and Fast Shipping
Order the MAX3222ECWN+ RS-232 Interface IC by MAXIM today at www.xonelec.com.
Conclusion
The MAX3222ECWN+ RS-232 Interface IC by MAXIM offers engineers a compact, efficient, and cost-effective solution for RS-232 communication in embedded systems. With its internal charge pump, low power requirements, and robust protection features, it is a top choice for reliable serial communication. Available now from Xon Electronics with global shipping to the USA, India, Australia, Europe, and other countries.
