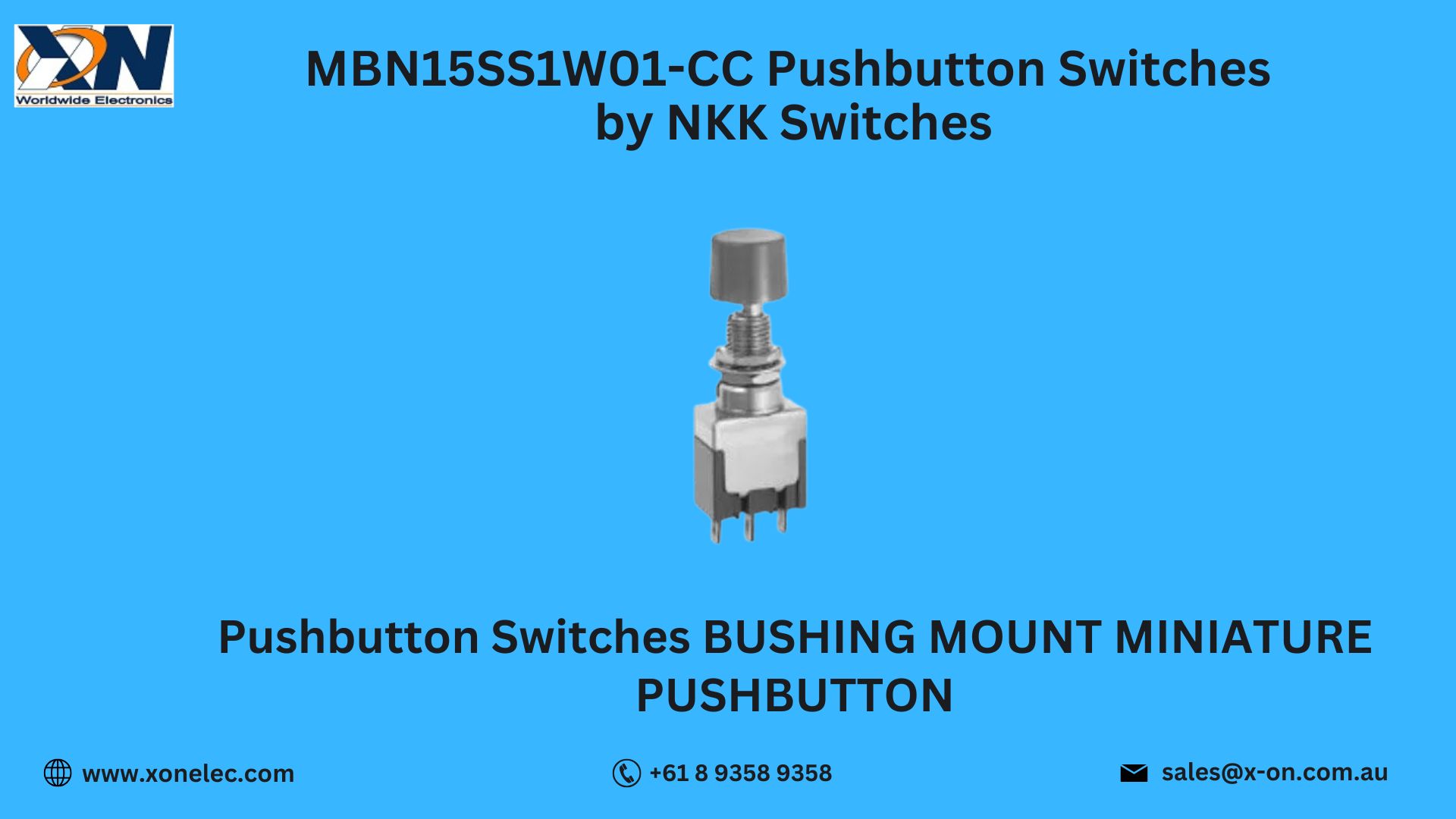

MBN15SS1W01-CC Pushbutton Switches by NKK Switches – Precision Control for Industrial & Commercial Applications
When it comes to high-performance Electromechanical components, precision and reliability are essential. The Pushbutton Switches MBN15SS1W01-CC by NKK Switches are designed to deliver exceptional tactile feedback, durability, and smooth operation for both industrial and commercial applications. These premium Switches are crafted with the quality standards that NKK Switches is renowned for, ensuring long-lasting and reliable performance.
Whether used in control panels, communication equipment, or instrumentation, these Pushbutton Switches by NKK Switches provide operators with confidence and ease of use in every press.
Technical Specifications – MBN15SS1W01-CC
-
Manufacturer: NKK Switches
-
Type: Pushbutton Switch
-
Actuator: Round, Momentary Action
-
Mounting Style: Panel Mount
-
Contact Configuration: SPDT (Single Pole, Double Throw)
-
Electrical Rating: 3A @ 250VAC / 6A @ 125VAC
-
Illumination: None
-
Housing Material: High-durability thermoplastic
-
Operating Temperature: -25°C to +50°C
-
Category: Electromechanical, Switches, Pushbutton Switches by NKK Switches
Key Features
-
Smooth & Precise Operation – Delivers consistent tactile feedback
-
High Durability – Withstands frequent use in industrial environments
-
Compact Panel Mount Design – Saves space and allows flexible integration
-
Reliable Electrical Performance – Suitable for both AC and DC applications
-
Versatile SPDT Configuration – Supports multiple control functions
These Pushbutton Switches by NKK Switches are ideal for applications where operational reliability is a must.
Applications
The MBN15SS1W01-CC Pushbutton Switches by NKK Switches are commonly used in:
-
Industrial Control Panels
-
Test & Measurement Equipment
-
Audio & Broadcasting Consoles
-
Telecommunications Systems
-
Commercial Machinery
With their robust build and precision operation, these Switches excel in professional and high-demand settings.
Installation Overview
Step 1: Prepare the panel cutout to match the switch dimensions.
Step 2: Secure the switch into the panel using the provided mounting hardware.
Step 3: Connect the terminals according to the SPDT configuration.
Step 4: Test for proper electrical operation.
Their simple installation process makes these Electromechanical switches suitable for quick integration in OEM projects.
Real-World Example – Broadcast Control Systems
Challenge: A broadcast studio needed durable, responsive Switches for live control desks.
Solution: The MBN15SS1W01-CC Pushbutton Switches by NKK Switches were chosen for their precision action and reliability.
Result: Improved operator response time and reduced maintenance needs.
Download Datasheet
For full specifications, wiring diagrams, and mechanical details:
Download MBN15SS1W01-CC Datasheet from Xon Electronics
Why Buy from Xon Electronics?
When purchasing Pushbutton Switches by NKK Switches from Xon Electronics, you get:
- 100% Genuine NKK Switches Products
- Worldwide Delivery – USA, India, Australia, Europe & more
- Detailed Technical Support & Documentation
- Suitable for OEM & Industrial Integration
- Secure Online Transactions
Order today at www.xonelec.com and get your MBN15SS1W01-CC Pushbutton Switches by NKK Switches delivered fast.
Conclusion
The MBN15SS1W01-CC Pushbutton Switches by NKK Switches combine durability, precision, and reliability—making them the perfect choice for high-performance Electromechanical control applications. From industrial panels to broadcast systems, these Switches deliver the confidence and control that professionals demand.
FAQs – MBN15SS1W01-CC
Q1. What is the contact configuration?
SPDT – Single Pole, Double Throw.
Q2. Is it illuminated?
No, this model is non-illuminated.
Q3. Can it handle both AC and DC?
Yes, it is rated for both AC and DC applications.
Q4. What industries use these switches?
Industrial automation, broadcasting, telecom, and instrumentation.
Q5. Do you offer international shipping?
Yes, to USA, India, Australia, Europe, and other regions.
