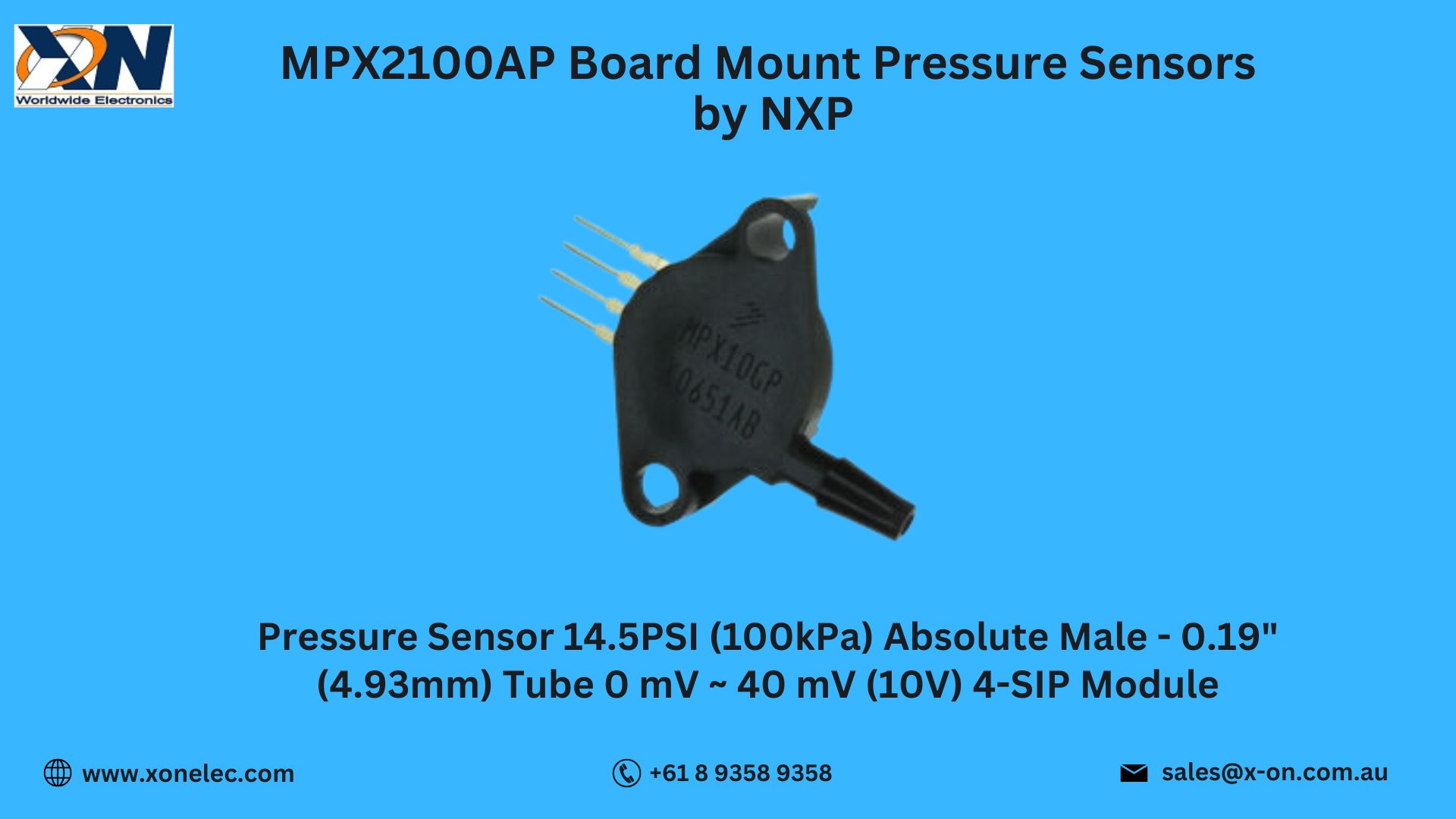

MPX2100AP Board Mount Pressure Sensors by NXP – Accurate Sensing Made Easy
The Board Mount Pressure Sensors MPX2100AP by NXP are high-performance, analog output pressure sensors designed to offer accurate, linear, and stable readings for a variety of industrial and consumer applications. Their compact design and simple board mount integration make them a go-to choice for engineers designing pressure-sensitive systems.
In this article, we’ll explore the technical specifications, features, and uses of the MPX2100AP Board Mount Pressure Sensors by NXP, now available globally at Xon Electronics.
Technical Specifications of MPX2100AP
-
Manufacturer: NXP Semiconductors
-
Part Number: MPX2100AP
-
Pressure Range: 0 to 100 kPa (0 to 14.5 psi)
-
Output Type: Analog Voltage
-
Output Voltage: 0.2V to 4.7V (typical)
-
Supply Voltage: 16V DC (max)
-
Accuracy: ±1.5% full-scale span
-
Port Style: Dual Port, Axial Barbed
-
Mounting Type: Through Hole
-
Package Type: 6-pin SIP
-
Category: Board Mount Pressure Sensors by NXP
Key Features
-
Wide Pressure Range – Measures up to 100 kPa absolute pressure
-
Analog Output – Easy to interface with ADCs or microcontrollers
-
Compact SIP Package – Ideal for tight board spaces
-
Dual Axial Ports – Supports differential and gauge pressure sensing
-
Rugged Construction – Designed for long-term reliability
The Board Mount Pressure Sensors by NXP are known for delivering highly stable and repeatable pressure readings, even in harsh environments.
Typical Applications
The MPX2100AP Board Mount Pressure Sensors by NXP are ideal for:
-
Medical Devices (e.g., respirators, infusion pumps)
-
HVAC Systems
-
Barometric Pressure Monitoring
-
Process Control Systems
-
Robotics and Pneumatics
-
Environmental Monitoring Equipment
Thanks to their versatility, Board Mount Pressure Sensors by NXP are used extensively across industrial and consumer-grade systems.
Integration Tips
-
Ensure proper port orientation for accurate differential readings.
-
Use signal conditioning circuits for stable analog output.
-
Place near signal-processing ICs to reduce noise and interference.
-
Calibrate the sensor within your target pressure range.
The Board Mount Pressure Sensors by NXP simplify your hardware setup while delivering precise performance.
Use Case: Smart HVAC Pressure Monitoring
Challenge: An HVAC manufacturer needed a compact sensor to track airflow pressure across ducts.
Solution: The MPX2100AP Board Mount Pressure Sensors by NXP offered a reliable analog signal, compact design, and easy board integration.
Outcome: Increased system efficiency and reduced customer complaints due to more accurate pressure control.
Download MPX2100AP Datasheet
Need electrical specs, dimensions, or application guidelines?
[Download the MPX2100AP Datasheet from Xon Electronics]
Why Buy from Xon Electronics?
When you buy Board Mount Pressure Sensors by NXP from Xon Electronics, you get:
- 100% Genuine NXP Components
- Global Shipping – USA, India, Australia, Europe & More
- OEM & Bulk Supply Support
- Access to Technical Documentation
- Secure Ordering & Fast Delivery
Visit www.xonelec.com to place your order today.
Conclusion
The MPX2100AP Board Mount Pressure Sensors by NXP offer a reliable, compact, and accurate solution for measuring pressure in a wide range of systems. Whether for HVAC, medical, or process control, this sensor ensures dependable performance at a great value—available now from Xon Electronics.
FAQs – MPX2100AP Pressure Sensor
Q1. What type of pressure does the MPX2100AP measure?
It measures absolute pressure up to 100 kPa.
Q2. Is the output analog or digital?
It provides an analog voltage output.
Q3. Can it be used for differential pressure sensing?
Yes, thanks to its dual-port design.
Q4. What mounting type is supported?
It supports through-hole mounting in a 6-pin SIP package.
Q5. Is it available for international delivery?
Yes, at www.xonelec.com with shipping to USA, India, Australia, Europe, and more.
