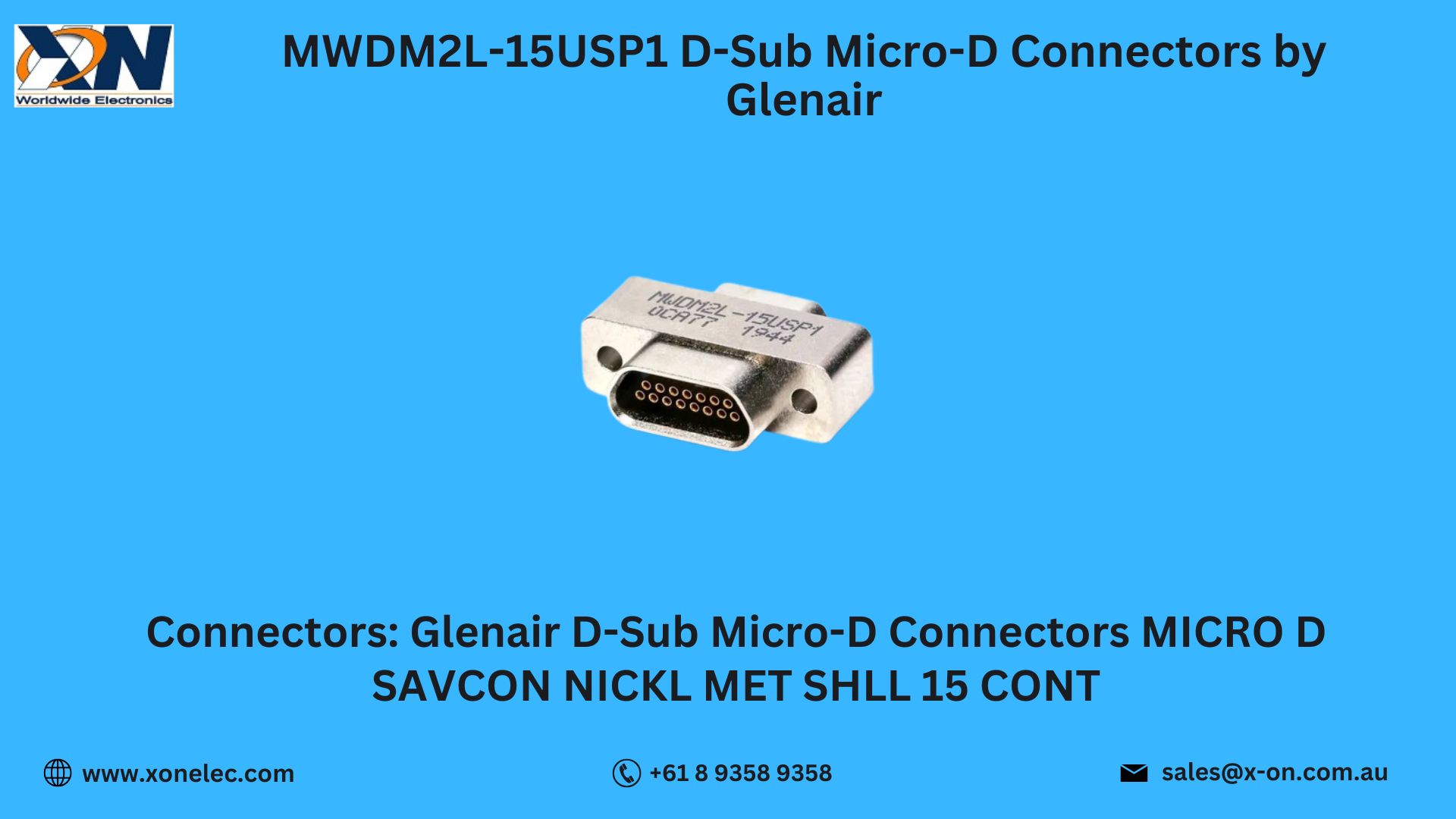

MWDM2L-15USP1 D-Sub Micro-D Connectors by Glenair – Compact, High-Reliability Interconnects for Critical Systems

The D-Sub Micro-D Connectors MWDM2L-15USP1 by Glenair are designed for high-density, high-performance interconnect applications where space, reliability, and ruggedness are critical. These miniature D-Sub Connectors feature 15 gold-plated contacts in a compact MIL-DTL-83513-compliant layout, making them ideal for military, aerospace, and industrial electronics. Whether you're working with mission-critical avionics or miniaturized embedded systems, Glenair's D-Sub Micro-D Connectors provide proven durability and signal integrity.

In this blog, we’ll walk you through the technical specifications, key features, common applications, wiring layout, and how to download the datasheet or buy from Xon Electronics. If you're sourcing rugged, high-performance Connectors, this is the one to consider.

Technical Specifications of MWDM2L-15USP1

• Manufacturer: Glenair

• Part Number: MWDM2L-15USP1

• Type: D-Sub Micro-D Connector (Socket)

• Contact Count: 15 gold-plated contacts

• Mounting Type: Panel Mount with Rear Panel Jackscrews

• Shell Material: Aluminum with Electroless Nickel Plating

• Contact Current Rating: 3 Amps per contact

• Operating Temperature: -55°C to +200°C

• Compliance: MIL-DTL-83513

• Category: Connectors, D-Sub Connectors, D-Sub Micro-D Connectors

Built for applications where shock, vibration, and extreme conditions are common, this Glenair connector ensures long-term performance and secure signal transmission.

Key Features of MWDM2L-15USP1 D-Sub Micro-D Connector

• Ultraminiature Form Factor – Ideal for space-constrained enclosures and compact Connectors layouts

• MIL-Spec Durability – Compliant with MIL-DTL-83513 for defense and aerospace reliability

• Gold-Plated Contacts – Ensures excellent electrical conductivity and corrosion resistance

• High Temperature Range – Operates from -55°C to +200°C

• Secure Panel Mount with Jackscrews – Maintains integrity under vibration and mechanical stress

This product is a staple in high-performance D-Sub Micro-D Connectors, offering compact size without compromising on strength.

Applications of MWDM2L-15USP1

Thanks to its rugged construction and compact form, the MWDM2L-15USP1 is used in a wide range of demanding applications:

• Avionics and Flight Control Modules

• Military Communications and Navigation Systems

• Spacecraft Subsystems

• Robotic Control and Sensor Networks

• Compact Embedded Systems and Miniaturized Boards

• Industrial Automation Units

This connector is essential wherever D-Sub Connectors are required in high-stress, mission-critical environments.

Wiring and Connection Overview

Typical installation setup for MWDM2L-15USP1:

[PCB or Cable Harness]
   ?
[MWDM2L-15USP1 Micro-D Connector Socket]
   ?
[Mated Plug with Shielded Cable]
   ?
[End Device or Embedded System]

With a secure jackscrew panel mount design, this component ensures stable signal connections in vibration-heavy use cases, common in systems using D-Sub Connectors.

Use Case Scenario: Defense UAV Flight Control Systems

Scenario: A defense integrator needed compact, rugged D-Sub Micro-D Connectors for their next-gen UAV’s flight control interface.

Problem: Existing standard D-Sub Connectors were too large and prone to disconnect under mechanical stress.

Solution: Glenair’s MWDM2L-15USP1 provided a reliable microform connector with robust MIL-spec jackscrews.

Result: Increased signal stability, weight savings, and enhanced resilience across all environmental conditions.

This illustrates how trusted Connectors like this one enable high-performance applications in space-constrained electronics.

Download Datasheet for MWDM2L-15USP1

Need contact details, material specs, or layout drawings?

[Download MWDM2L-15USP1 Datasheet from Xon Electronics]

Access comprehensive documentation to help you integrate these D-Sub Micro-D Connectors seamlessly into your project.

Why Buy from Xon Electronics?

Xon Electronics is your global source for premium interconnect Connectors and D-sub solutions, offering:

100% Genuine Glenair Products
Worldwide Shipping – USA, India, Australia, Europe & other countries
Special Pricing for Military and Aerospace OEMs
Technical Support and Application Guidance
Secure Checkout for Safe Online Ordering

Equip your mission-critical system with high-performance D-Sub Micro-D Connectors from Xon Electronics.

Conclusion

The MWDM2L-15USP1 D-Sub Micro-D Connectors by Glenair deliver exceptional strength, compactness, and electrical performance for aerospace, military, and industrial applications. As part of a trusted range of D-Sub Connectors, it ensures reliable operation under the most extreme conditions. Available now at Xon Electronics with global shipping and technical support.
