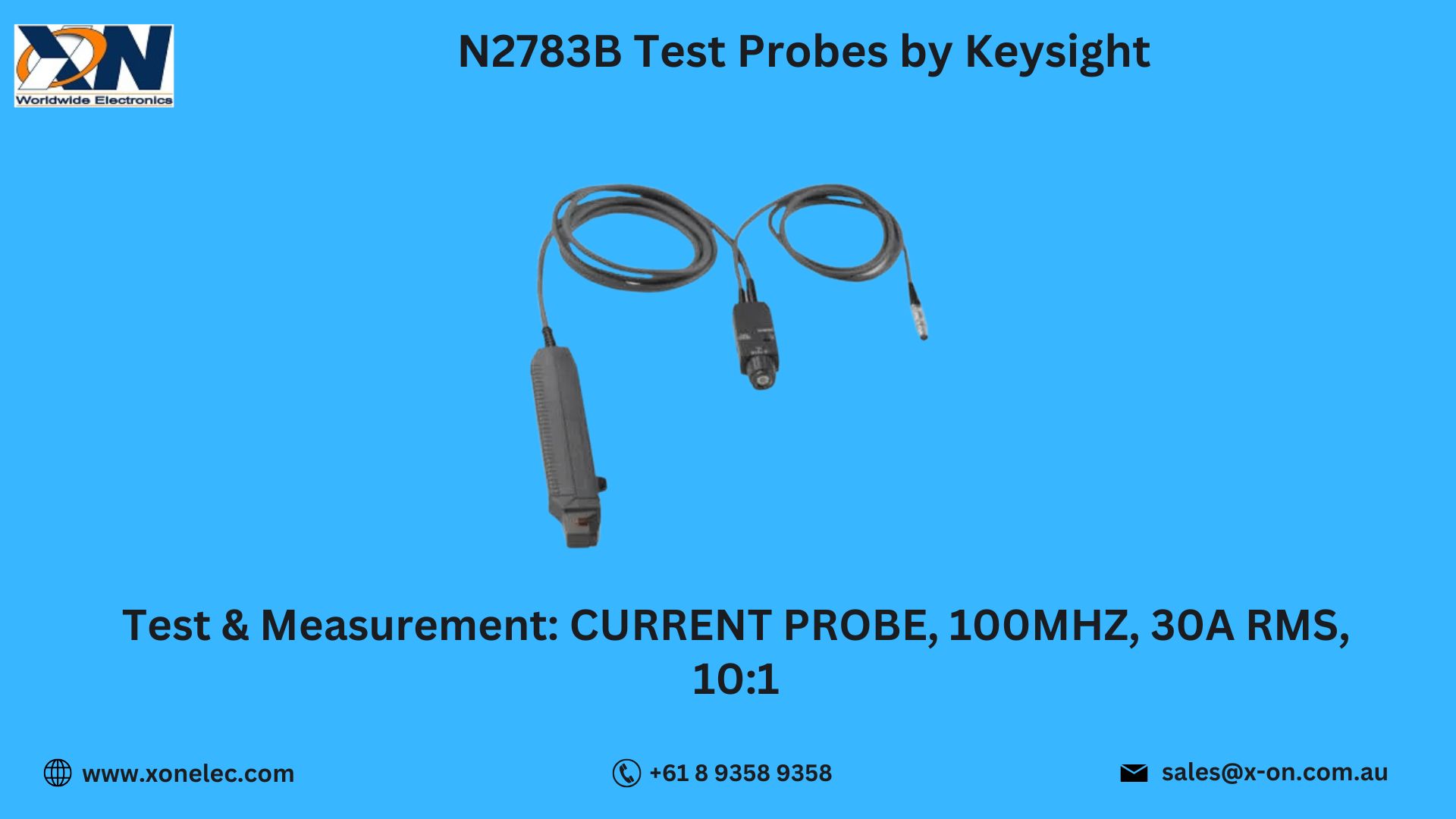

N2783B Test Equipment Accessories Test Probes by Keysight – Precision Current Probing for Test & Measurement
The Test Equipment Accessories Test Probes N2783B by Keysight Technologies deliver high-performance current probing for engineers and technicians working in Test & Measurement environments. Designed for accuracy and bandwidth, this AC/DC current probe ensures dependable readings up to 100 MHz and 30 Arms—ideal for high-speed digital systems, power electronics, and automotive R&D.
In this blog, we’ll cover the probe’s technical specifications, standout features, application fields, setup guide, and how to download its datasheet or buy it from Xon Electronics. Whether you're working in a lab or production line, the N2783B is a premium-grade choice among professional Test Equipment Accessories.
Technical Specifications of N2783B Test Probe
-
Manufacturer: Keysight Technologies
-
Part Number: N2783B
-
Type: AC/DC Current Probe
-
Bandwidth: DC to 100 MHz
-
Current Range: 30 Arms continuous (50 A peak)
-
Maximum Peak Current: 50 A
-
Output Voltage: 0.1 V/A
-
Probe Interface: Compatible with Keysight’s N2779A power supply
-
Connector Type: BNC
-
Category: Test Equipment Accessories, Test & Measurement, Current Probes
This probe is engineered to deliver consistent performance for high-frequency applications where measurement precision is critical.
Key Features of Keysight N2783B Current Probe
-
High Bandwidth (100 MHz) – Ideal for measuring fast-switching waveforms
-
Accurate AC/DC Current Measurement – Suitable for wide-ranging power and signal tests
-
Compact and Rugged Design – Built for tough industrial and lab environments
-
BNC Output Interface – Easy connection with most oscilloscopes
-
Compatible Power Supply (N2779A) – Ensures safe and efficient probe operation
These benefits make the N2783B one of the most trusted Test Probes in the professional Test & Measurement domain.
Applications of N2783B Current Probe
The N2783B is widely used across multiple sectors including:
-
Switching power supply analysis
-
Automotive electronic system diagnostics
-
Inverter and motor drive development
-
Research and development labs
-
Digital and analog circuit debugging
-
High-speed power integrity testing
As a premium-grade Test Probes solution, it serves professionals in diverse Test & Measurement applications.
Setup and Connection Overview
Typical connection workflow for the N2783B:
[Power Supply] — Connect to N2779A
[Probe Interface] — Clip probe to circuit under test
[Oscilloscope Input] — Connect via BNC cable
With user-friendly design and wide compatibility, this probe seamlessly integrates into most Test Equipment Accessories setups.
Use Case Scenario: Automotive Powertrain Testing
Scenario: An automotive electronics lab required precise AC/DC current measurement for hybrid vehicle powertrains.
Problem: Previous probes couldn’t handle high-frequency switching noise and transient currents.
Solution: The team adopted the Keysight N2783B for its 100 MHz bandwidth and 30 Arms rating.
Result: Improved accuracy in current profiling and quicker diagnostics in dynamic load conditions—showcasing the value of high-end Test Probes in modern Test & Measurement workflows.
Download Datasheet for N2783B
Looking for electrical specs, safety limits, or calibration tips?
?? Download N2783B Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics offers the best in Test Equipment Accessories with:
? Genuine Keysight Test Probes
?? Global Shipping – USA, India, Australia, Europe & more
?? Special Pricing for Labs and OEMs
?? Expert Tech Support for Integration and Setup
?? Secure Checkout with Fast Dispatch
Get the N2783B now from www.xonelec.com and power up your Test & Measurement toolkit.
Conclusion
The N2783B Test Equipment Accessories Test Probes by Keysight Technologies offer a professional-grade solution for precise AC/DC current measurement in high-speed systems. With 100 MHz bandwidth, rugged build quality, and ease of integration, it stands out as a top-tier component in any serious Test & Measurement environment. Available now at Xon Electronics with international shipping and expert support.
FAQs – N2783B Current Probe
Q1. What current levels can this probe measure?
Up to 30 Arms continuously and 50 A peak.
Q2. Does it support both AC and DC signals?
Yes, it's designed for accurate AC and DC current measurements.
Q3. What power supply is required for operation?
It works with the Keysight N2779A probe power supply.
Q4. Is it compatible with non-Keysight oscilloscopes?
Yes, it uses standard BNC output and can work with most scopes.
Q5. Where can I buy it with international delivery?
At www.xonelec.com, with delivery to USA, India, Australia, Europe, and beyond.
