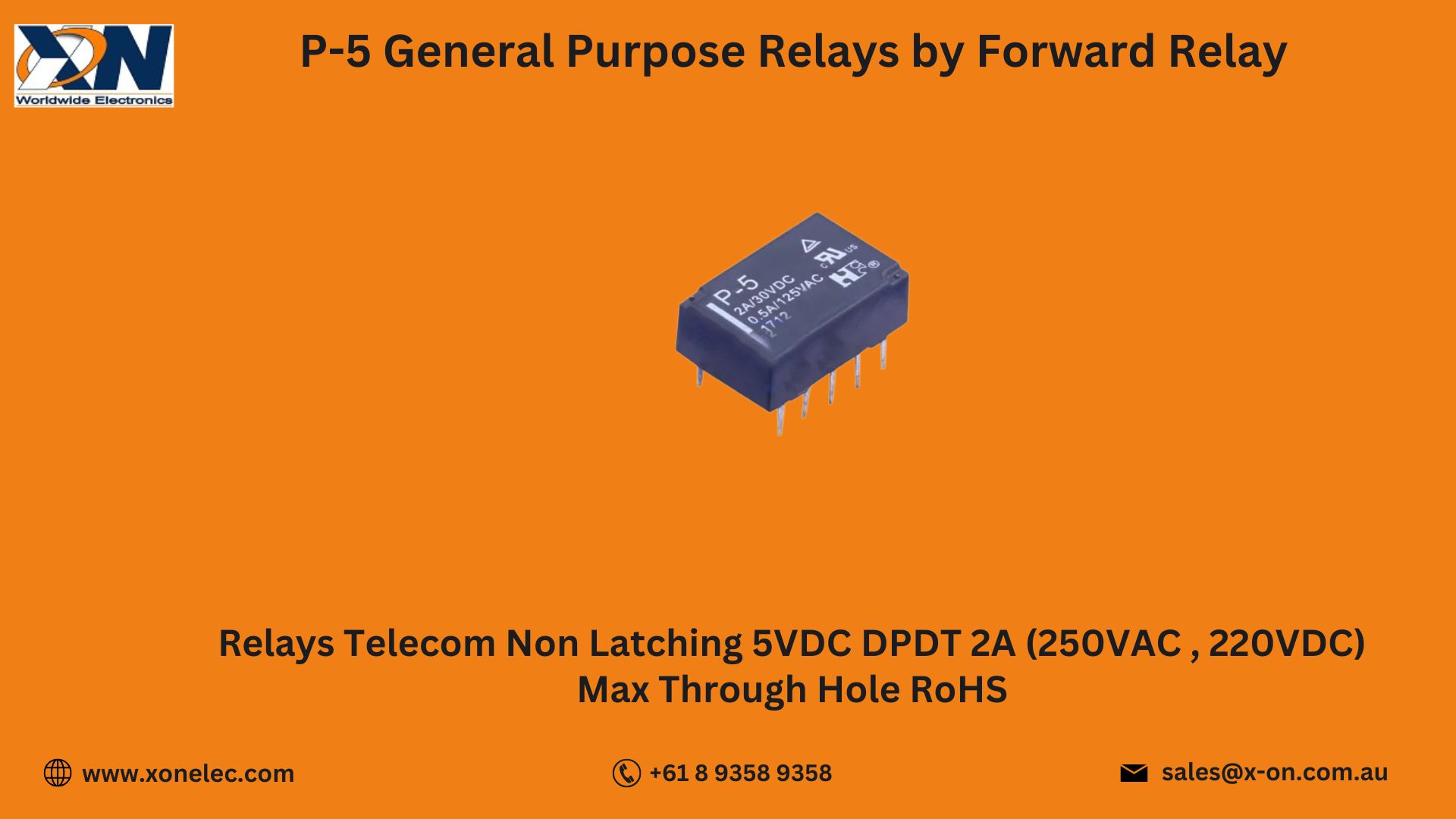

P-5 General Purpose Relays by Forward Relay – Reliable Electromechanical Switching for Industrial & Consumer Applications
The General Purpose Relays P-5 by Forward Relay are compact, highly efficient electromechanical devices designed for reliable control in automation, home appliances, lighting systems, and more. Built for versatile use, these relays combine performance and durability, making them ideal for switching loads in both industrial and commercial environments. If you're looking for dependable relays that ensure long service life and stable performance, the P-5 General Purpose Relays by Forward Relay are an excellent solution.
In this blog, we’ll dive into the technical specifications, key features, applications, wiring configuration, use-case scenarios, and options to purchase or download the datasheet via Xon Electronics.
Technical Specifications of P-5 Relay
-
Manufacturer: Forward Relay
-
Part Number: P-5
-
Type: Electromechanical General Purpose Relay
-
Contact Form: SPDT (1 Form C)
-
Contact Rating: 10A at 250VAC / 10A at 30VDC
-
Coil Voltage Options: 5V, 12V, 24V DC
-
Mounting Type: Through Hole / PCB
-
Contact Material: Silver Alloy
-
Insulation Resistance: =100MO at 500VDC
-
Mechanical Life: Over 10 million operations
-
Dimensions: Compact and PCB-mountable
-
Category: Electromechanical, Relays, General Purpose Relays by Forward Relay
Designed to meet international standards, these relays ensure safe and consistent switching across applications.
Key Features of P-5 General Purpose Relays
-
High Switching Capacity – Rated up to 10A for both AC and DC loads
-
Long Mechanical Life – Over 10 million operations for long-term reliability
-
Compact Size – Ideal for PCB mounting in space-constrained devices
-
Wide Coil Voltage Range – Supports 5V, 12V, and 24V DC versions
-
Silver Alloy Contacts – For excellent conductivity and wear resistance
-
RoHS Compliant – Environmentally safe and globally accepted
These benefits make the P-5 General Purpose Relays by Forward Relay a trusted choice across multiple industries.
Applications of P-5 Relays
The P-5 General Purpose Relays by Forward Relay are widely used in various industries, including:
-
HVAC Systems & Thermostats
-
Lighting Control Panels
-
Industrial Automation Equipment
-
Home Appliances (Microwave ovens, Washing Machines)
-
Security & Fire Alarm Systems
-
Signal Switching and Load Isolation
-
Automotive Control Units
Their electromechanical performance and long life cycle ensure safe and stable switching operations.
Wiring and Connection Overview
Typical wiring for the P-5 relay includes:
[Coil Terminals] – Connect appropriate DC voltage (5V / 12V / 24V)
[Contact Terminals] –
These standard SPDT configurations make wiring quick and integration seamless.
Use Case Scenario: Smart Home Appliance Control
Scenario: A smart appliance manufacturer needed a compact, cost-effective relay to manage motor and heater control in a smart washing machine.
Problem: Previous components had a short lifespan and failed under frequent switching.
Solution: The P-5 General Purpose Relays by Forward Relay provided high current capacity and long mechanical life.
Result: Enhanced device reliability, fewer field failures, and simplified PCB design due to compact relay footprint.
This example highlights the value of choosing the right electromechanical solution.
Download Datasheet for P-5 Relays
Looking for complete specifications, compliance standards, or technical drawings?
[Download P-5 Relay Datasheet from Xon Electronics]
(Insert product page link when available)
Why Buy from Xon Electronics?
Xon Electronics offers reliable sourcing for General Purpose Relays by Forward Relay, including:
- 100% Genuine Forward Relay Devices
- Global Shipping – USA, India, Australia, Europe & more
- OEM & Bulk Pricing Options
- Technical Support and Consultation
- Safe and Encrypted Ordering Platform
Explore more at www.xonelec.com and power your systems with trusted relays.
Conclusion
The P-5 General Purpose Relays by Forward Relay are the go-to choice for industries requiring compact, long-lasting, and efficient electromechanical switching. From industrial controls to consumer electronics, these relays deliver unmatched performance and durability. Available worldwide via Xon Electronics, they support reliable operation in systems across the USA, India, Australia, Europe, and other countries.
FAQs – P-5 General Purpose Relays
Q1. What are the contact ratings of the P-5 relay?
It supports 10A at 250VAC or 10A at 30VDC.
Q2. Are different coil voltages available?
Yes, you can choose from 5V, 12V, and 24V DC variants.
Q3. What mounting method does the relay support?
It is designed for PCB or through-hole mounting.
Q4. Are the P-5 relays RoHS compliant?
Yes, they meet RoHS environmental standards.
Q5. Can I order these relays globally?
Absolutely! Purchase directly from www.xonelec.com with shipping available to USA, India, Australia, Europe, and more.
