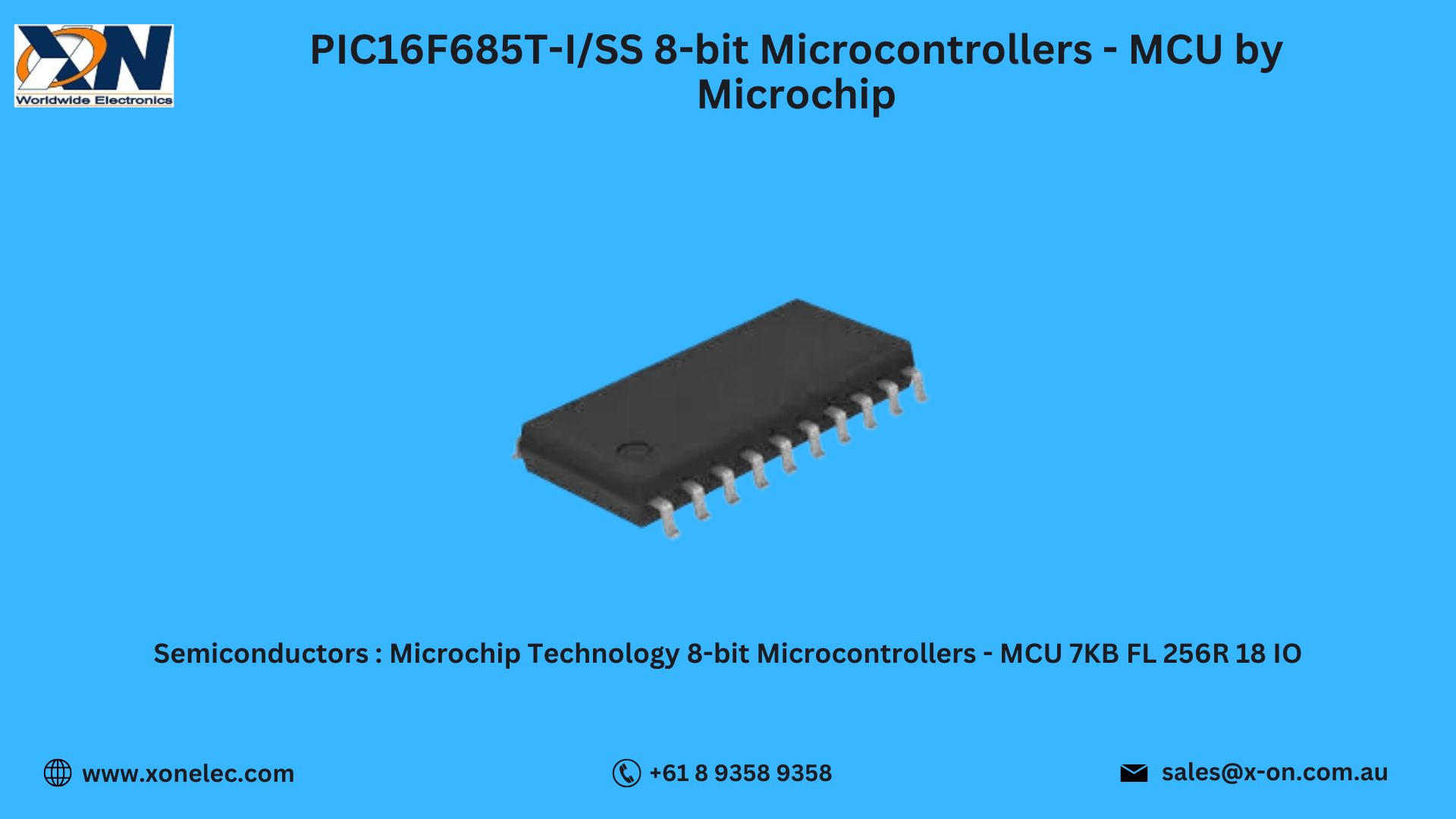

PIC16F685T-I/SS 8-bit Microcontrollers - MCU by Microchip – Compact Power for Embedded Systems
The 8-bit Microcontrollers - MCU PIC16F685T-I/SS by Microchip are highly reliable and versatile components for modern embedded designs. Featuring advanced peripherals and ultra-low power consumption, this Microchip MCU is ideal for industrial, automotive, and IoT applications.
This blog explores the technical specifications, standout features, and practical applications of the PIC16F685T-I/SS 8-bit Microcontrollers - MCU, making it a perfect choice for engineers and designers working with Embedded Processors & Controllers.
Technical Specifications of PIC16F685T-I/SS
-
Manufacturer: Microchip
-
Model: PIC16F685T-I/SS
-
Type: 8-bit Microcontrollers - MCU
-
Program Memory: 7KB Flash
-
RAM: 256 Bytes
-
Operating Voltage: 2V to 5.5V
-
Peripheral Features: 8-channel 10-bit ADC, PWM, USART, SPI, and I2C
-
Temperature Range: -40°C to +85°C (Industrial Grade)
-
Packaging: 20-SSOP
-
Category: Semiconductors, Integrated Circuits - ICs, Embedded Processors & Controllers, Microcontrollers - MCU, 8-bit Microcontrollers - MCU
Key Features of PIC16F685T-I/SS Microcontrollers
-
High-performance 8-bit RISC architecture
-
Wide operating voltage range for flexibility
-
Compact SSOP package for space-constrained designs
-
Enhanced peripherals like ADC, PWM, and communication interfaces
-
Ultra-low power sleep mode for battery-powered applications
The PIC16F685T-I/SS 8-bit Microcontrollers - MCU by Microchip offers exceptional balance between performance and power efficiency, ideal for embedded control systems.
Applications of PIC16F685T-I/SS 8-bit Microcontrollers
-
IoT devices and sensor interfacing
-
Industrial automation and control systems
-
Automotive electronics and dashboard modules
-
Consumer electronics such as home appliances
-
Robotics and programmable controllers requiring compact Microcontrollers - MCU
These 8-bit Microcontrollers - MCU are tailored for versatile embedded designs across multiple industries.
Installation and Handling Overview
-
Solder carefully on SSOP footprint as per datasheet guidelines.
-
Program using Microchip’s MPLAB X IDE and compatible programmers.
-
Utilize power-saving modes for extended battery life in portable systems.
Use Case Scenario: Smart Metering Solution
Scenario: A utility company needed a compact and energy-efficient 8-bit Microcontroller - MCU for smart metering systems.
Problem: Existing solutions were too power-hungry for long-term operation.
Solution: The PIC16F685T-I/SS 8-bit Microcontrollers - MCU by Microchip provided low-power modes and robust communication capabilities.
Result: Longer battery life and seamless integration into the company’s IoT network.
Download Datasheet for PIC16F685T-I/SS
Download PIC16F685T-I/SS Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics ensures you receive genuine 8-bit Microcontrollers - MCU and global support:
-
100% Authentic Microchip Components
-
Global Delivery: USA, India, Australia, Europe & more
-
OEM and bulk order discounts available
-
Technical assistance for integration and programming
-
Secure shopping on www.xonelec.com
FAQs – PIC16F685T-I/SS 8-bit Microcontrollers - MCU by Microchip
Q1. What is the program memory size?
It has 7KB of Flash memory for user programs.
Q2. Can this MCU be used in automotive systems?
Yes, it meets industrial-grade specifications for harsh environments.
Q3. Does it support low-power operation?
Yes, it offers multiple sleep modes for energy efficiency.
Q4. Is international shipping available?
Yes, Xon Electronics ships to USA, India, Australia, Europe, and more.
Conclusion
The PIC16F685T-I/SS 8-bit Microcontrollers - MCU by Microchip is a compact, power-efficient solution for embedded designers. With a robust feature set and industrial-grade reliability, it stands out in the Embedded Processors & Controllers segment. Order now from Xon Electronics for global delivery and expert support.
