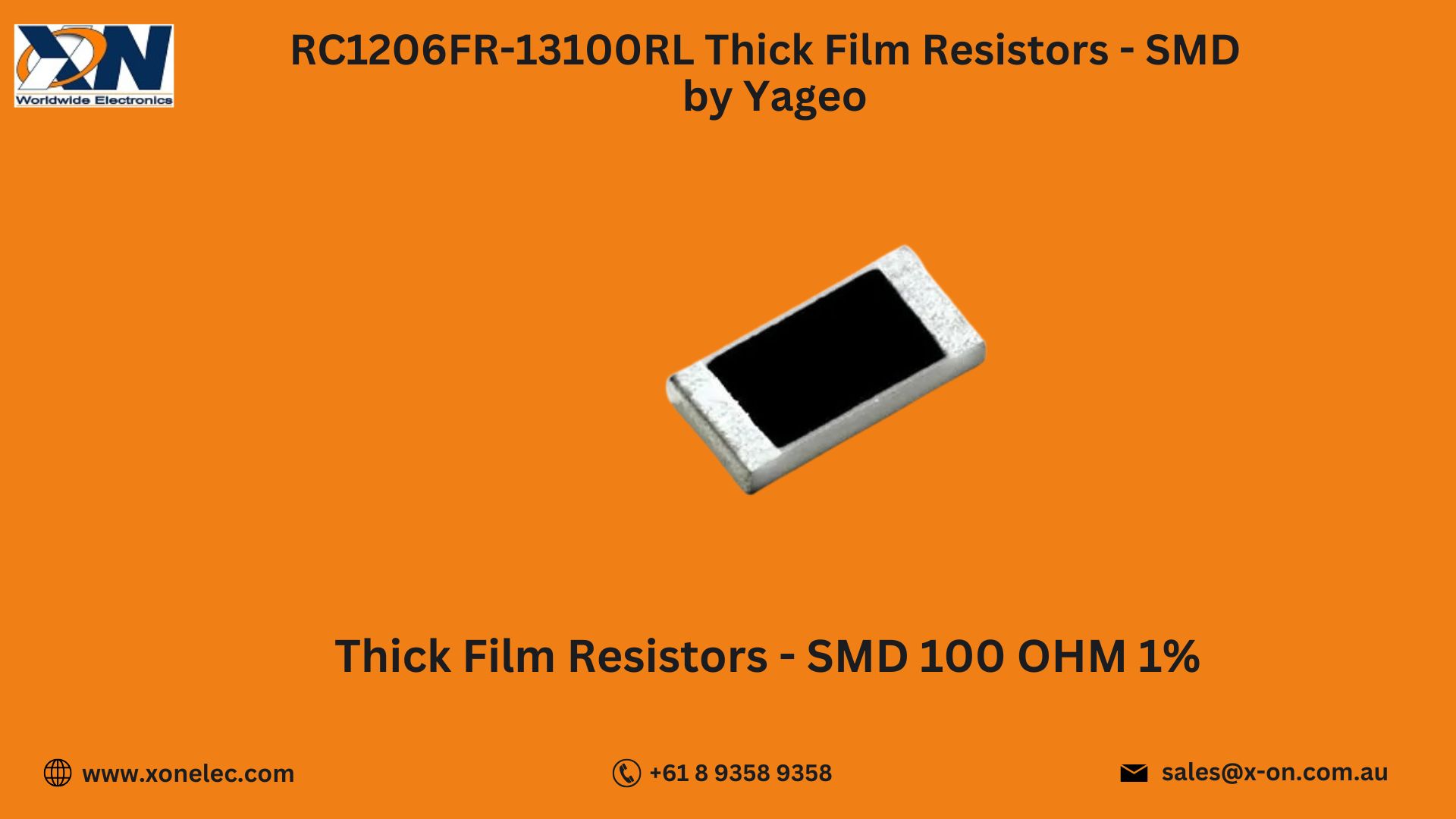

RC1206FR-13100RL Thick Film Resistors by Yageo

RC1206FR-13100RL Thick Film Resistors - SMD by Yageo – Precision in Compact Form

The Thick Film Resistors - SMD RC1206FR-13100RL by Yageo are precision-engineered resistors designed for surface mount applications where high reliability, accuracy, and space efficiency are essential. These 100O resistors offer a tight tolerance, excellent thermal stability, and are widely used in industrial control systems, power modules, and consumer electronics. Known for consistency and cost-efficiency, the Thick Film Resistors - SMD by Yageo are trusted by engineers and manufacturers worldwide.

In this blog, we’ll explore the key specifications, features, applications, soldering profile, and reasons to buy from Xon Electronics with worldwide delivery.

Technical Specifications of RC1206FR-13100RL

Manufacturer: Yageo
Part Number: RC1206FR-13100RL
Type: Thick Film Resistor (SMD)
Resistance: 100O
Tolerance: ±1%
Power Rating: 0.25W (1/4W)
Size: 1206 (3.2mm x 1.6mm)
Temperature Coefficient: ±100 ppm/°C
Maximum Working Voltage: 200V
Mounting Type: Surface Mount (SMD)
Operating Temperature Range: -55°C to +155°C
Category: Resistors, Thick Film, SMD

Built to ensure dependable performance in high-density PCB layouts.

Key Features of RC1206FR-13100RL Thick Film Resistors

Compact 1206 Package – Ideal for space-saving PCB design
±1% Tolerance – Ensures high accuracy and stability
High Temperature Range – Up to +155°C operation
Reliable Soldering Performance – Compatible with standard reflow profiles
AEC-Q200 Qualified – Meets automotive-grade requirements

These qualities make RC1206FR-13100RL Thick Film Resistors - SMD by Yageo a go-to solution for robust, cost-effective surface mount designs.

Applications of RC1206FR-13100RL Resistors

The RC1206FR-13100RL Thick Film Resistors - SMD by Yageo are suited for:

Industrial Automation Systems
Power Supplies and Battery Packs
Consumer Electronics (TVs, Radios, Set-Top Boxes)
LED Drivers and Lighting Controls
Automotive Electronics (ECUs, sensors)

These Thick Film Resistors - SMD by Yageo deliver stable resistance values under demanding environmental and electrical conditions.

Soldering & Mounting Profile

For optimal soldering performance:

Use standard SMD reflow soldering techniques
Preheat gradually to avoid thermal shock
Peak temperature should not exceed 260°C

The RC1206FR-13100RL Thick Film Resistors - SMD by Yageo are RoHS compliant and suitable for both leaded and lead-free processes.

Use Case Scenario: LED Lighting Module

Scenario: A lighting OEM needed reliable SMD resistors for current limiting in LED modules.

Problem: Inconsistent resistor values were causing brightness variation.

Solution: The RC1206FR-13100RL Thick Film Resistors - SMD by Yageo provided tight tolerance and stable performance.

Result: Improved lighting consistency and reduced QA rejections.

Download Datasheet for RC1206FR-13100RL

Need full specs, reflow profiles, or compliance details?

[Download the RC1206FR-13100RL Datasheet from Xon Electronics]

Why Buy from Xon Electronics?

Get authentic RC1206FR-13100RL Thick Film Resistors - SMD by Yageo at Xon Electronics with:

100% Genuine Yageo Components
Global Shipping – USA, India, Australia, Europe & more
OEM Bulk Pricing and Ready Stock
Technical Assistance for Selection and Design
Fast, Secure Checkout Process

Visit www.xonelec.com and source high-quality Thick Film Resistors - SMD by Yageo with confidence.

Conclusion

The RC1206FR-13100RL Thick Film Resistors - SMD by Yageo offer compact size, tight tolerance, and excellent reliability, making them a smart choice for designers working on high-density or precision applications. Available now from Xon Electronics with worldwide delivery to the USA, India, Australia, Europe, and other countries.
