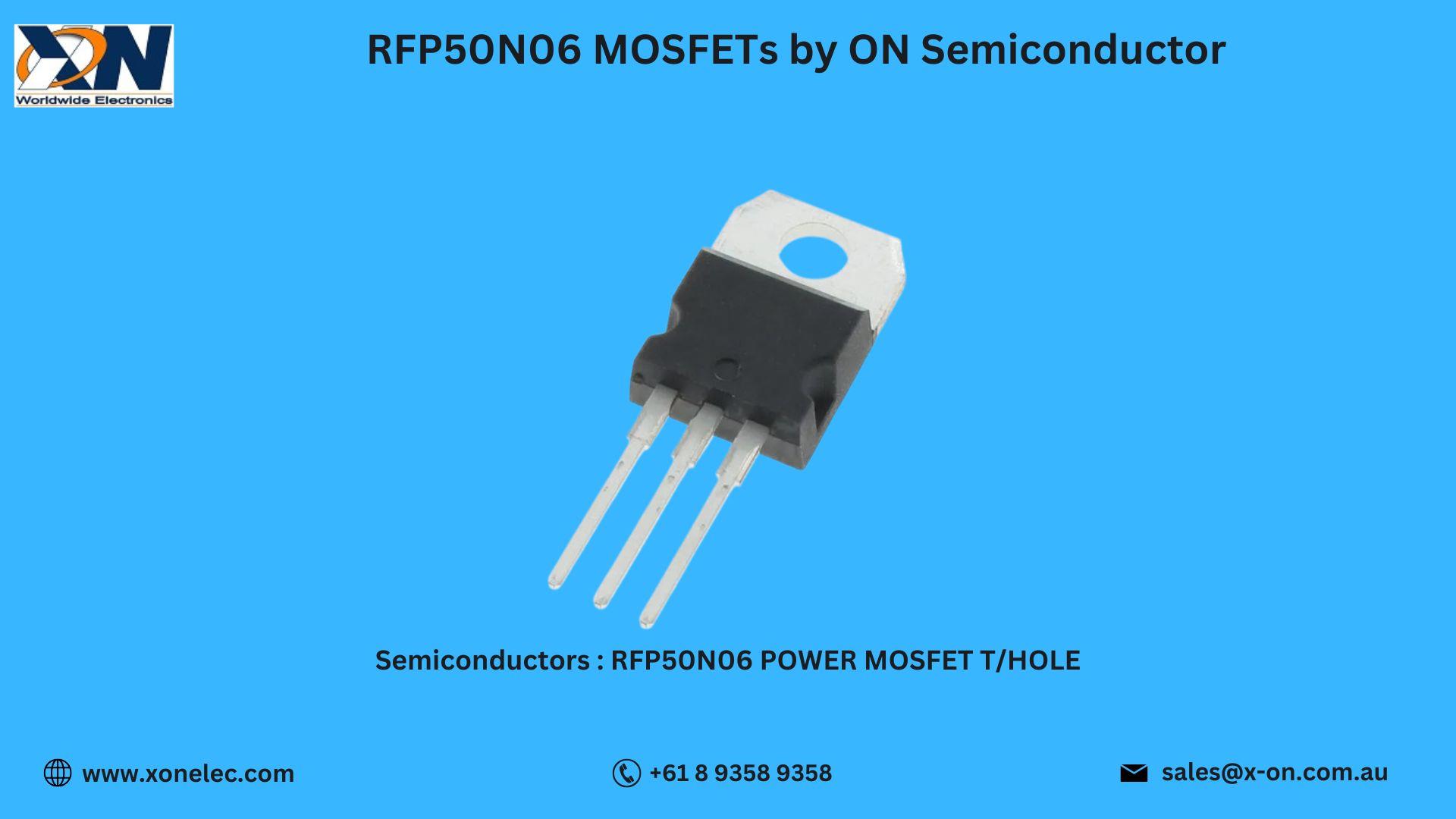

RFP50N06 MOSFETs by ON Semiconductor – High-Efficiency Power Switching Solutions | Buy Online at XON
Introduction
The MOSFETs RFP50N06 by ON Semiconductor are high-performance power transistors designed for fast switching and efficient power management in a variety of electronic applications. Belonging to the Semiconductors, Discrete Semiconductors, Transistors, and MOSFETs family, these components offer excellent reliability, high current capacity, and low on-resistance, making them a trusted choice in power conversion and motor control systems.
Available globally from www.xonelec.com, the RFP50N06 MOSFETs are ideal for both industrial and consumer-grade applications requiring precise and efficient power switching.
Technical Specifications of RFP50N06
-
Manufacturer: ON Semiconductor
-
Part Number: RFP50N06
-
Category: Semiconductors, Discrete Semiconductors, Transistors, MOSFETs
-
Type: N-Channel MOSFET
-
Drain-to-Source Voltage (VDS): 60V
-
Continuous Drain Current (ID): 50A
-
RDS(on): 0.028 Ohms (max)
-
Gate Threshold Voltage (VGS(th)): 2V (typical)
-
Power Dissipation (PD): 120W
-
Package Type: TO-220
-
Operating Temperature Range: -55°C to +175°C
The RFP50N06 MOSFETs provide low conduction losses, high-speed switching, and thermal efficiency—ideal for robust power control and high-current circuits.
Key Features of RFP50N06 MOSFETs
-
Low RDS(on) for enhanced energy efficiency
-
High current handling up to 50A
-
Fast switching capability with low gate charge
-
Rugged TO-220 package for thermal stability
-
Reliable performance under high voltage and temperature conditions
These features make the RFP50N06 MOSFETs a standout choice in Semiconductors, Discrete Semiconductors, Transistors, and MOSFETs applications requiring superior switching efficiency.
Applications
The RFP50N06 MOSFETs are widely used in:
-
DC-DC converters and switching power supplies
-
Motor drivers and PWM control circuits
-
Automotive and industrial control systems
-
Load switching and protection circuits
-
Inverters and power amplifiers
Their high voltage tolerance and low power loss make them suitable for high-efficiency power conversion and switching applications.
Wiring and Connection Overview
-
Drain (D): Connect to load or power line
-
Source (S): Connect to ground
-
Gate (G): Connect to control signal input
This simple three-terminal design allows for flexible integration into circuit designs requiring precise control and minimal switching delay.
Use Case Scenario: DC Motor Control System
Scenario: A robotics manufacturer needed a reliable MOSFET for high-speed motor control applications.
Solution: The RFP50N06 MOSFETs by ON Semiconductor offered low RDS(on), high current capacity, and fast switching capability.
Result: Reduced heat generation, increased motor efficiency, and improved overall performance.
Download Datasheet for RFP50N06
For complete technical details, electrical characteristics, and performance curves:
Download RFP50N06 Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics is a trusted global distributor offering genuine Semiconductors, Discrete Semiconductors, Transistors, and MOSFETs from leading manufacturers like ON Semiconductor.
-
100% Original and Tested Components
-
Worldwide Delivery – USA, India, Australia, Europe & beyond
-
Bulk and OEM Order Support
-
Fast Global Shipping
-
Expert Technical & Sourcing Assistance
Buy RFP50N06 MOSFETs by ON Semiconductor today from www.xonelec.com and ensure premium quality with worldwide availability.
FAQs – RFP50N06 MOSFETs by ON Semiconductor
Q1. What is the voltage rating of the RFP50N06 MOSFET?
It supports a maximum drain-to-source voltage of 60V.
Q2. What is the continuous drain current?
It can handle up to 50A continuous drain current.
Q3. What is the typical on-resistance?
The RDS(on) is approximately 0.028 Ohms for low power loss.
Q4. Is it suitable for high-speed switching?
Yes, its low gate charge ensures fast switching speeds.
Q5. Can I order it internationally?
Yes, www.xonelec.com ships globally to USA, India, Australia, Europe, and other countries.
Conclusion
The RFP50N06 MOSFETs by ON Semiconductor provide an ideal combination of high current handling, low power loss, and fast switching performance. As part of the Semiconductors, Discrete Semiconductors, Transistors, and MOSFETs family, they offer dependable performance for industrial, automotive, and power control systems.
Order your RFP50N06 MOSFETs now from www.xonelec.com for quick, reliable delivery across the USA, India, Australia, Europe, and more.
