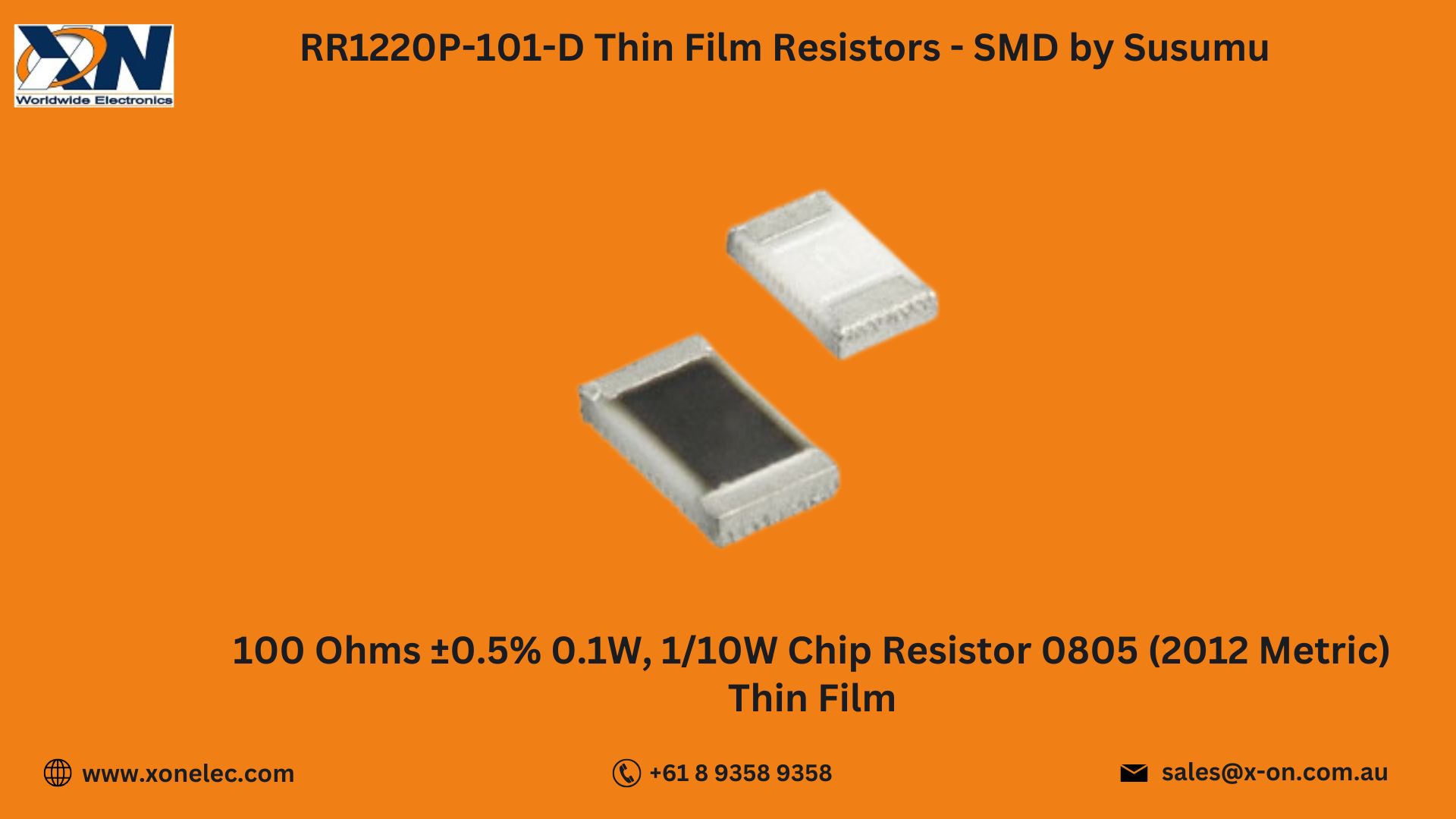

RR1220P-101-D Thin Film Resistors by Susumu

RR1220P-101-D Thin Film Resistors - SMD by Susumu – Precision Resistance for High-Stability Applications

The Thin Film Resistors - SMD RR1220P-101-D by Susumu offer outstanding precision and reliability in a compact surface-mount design. Known for their tight tolerance and excellent temperature coefficient, these resistors are ideal for demanding analog and digital circuits, including instrumentation, medical devices, and telecommunications. Whether you need accurate voltage division, signal filtering, or stable current control, the Thin Film Resistors - SMD by Susumu are built to deliver consistent electrical performance under varying environmental conditions.

This blog outlines the key technical specifications, benefits, applications, and global availability from Xon Electronics.

Technical Specifications of RR1220P-101-D

• Manufacturer: Susumu

• Part Number: RR1220P-101-D

• Resistor Type: Thin Film – Surface Mount

• Resistance: 100 Ohms

• Tolerance: ±0.5%

• Power Rating: 0.1W

• Size: 1210 (3.2mm × 2.5mm)

• Temperature Coefficient: ±100 ppm/°C

• Maximum Working Voltage: 150V

• Operating Temperature: -55°C to +155°C

• Category: Thin Film Resistors - SMD by Susumu

This resistor ensures low noise, high accuracy, and superior thermal stability for advanced electronic designs.

Key Features of RR1220P-101-D Resistor

• Tight Tolerance (±0.5%) – Suitable for high-precision applications

• Stable TCR (±100 ppm/°C) – Minimal drift across temperature variations

• Low Noise Operation – Ideal for signal integrity and measurement circuits

• Compact 1210 Package – Saves PCB space without sacrificing performance

• RoHS Compliant – Environmentally friendly and lead-free

These features make the RR1220P-101-D Thin Film Resistors - SMD by Susumu an excellent choice for compact and accurate surface-mount circuits.

Applications of RR1220P-101-D Thin Film Resistors

The RR1220P-101-D Thin Film Resistors - SMD by Susumu are widely used in:

• Test and Measurement Equipment

• Medical Electronics and Monitoring Devices

• Analog Signal Conditioning

• High-Speed Communication Hardware

• Industrial Control Systems

Thanks to their tight tolerance and low-noise characteristics, Thin Film Resistors - SMD by Susumu are essential in circuits that require maximum stability and precision.

Mounting & Soldering Guidelines

To install the RR1220P-101-D:

1. Place using automated pick-and-place machines for accurate SMD positioning

2. Reflow solder using standard temperature profiles

3. Avoid overheating to maintain tight tolerance and reliability

4. Inspect solder joints under magnification to confirm placement and connection

The RR1220P-101-D Thin Film Resistors - SMD by Susumu are designed for seamless integration into high-volume, high-precision electronic manufacturing lines.

Use Case Scenario: Medical ECG Signal Processing Board

Scenario: A medical equipment manufacturer needed high-accuracy resistors for analog signal filtering in ECG devices.

Problem: General-purpose resistors introduced noise and fluctuated under temperature changes.

Solution: The RR1220P-101-D Thin Film Resistors - SMD by Susumu provided the required 100O precision and thermal stability.

Result: Cleaner signals, improved diagnostic accuracy, and compliance with medical-grade standards.

Download Datasheet for RR1220P-101-D

Need resistance curves, footprint drawings, or compliance details?

[Download the RR1220P-101-D Datasheet from Xon Electronics]

Why Buy from Xon Electronics?

Xon Electronics provides original RR1220P-101-D Thin Film Resistors - SMD by Susumu with:

• Verified Susumu Inventory
• Global Shipping – USA, India, Australia, Europe & more
• Bulk Availability for OEMs and Assemblers
• Application Support for Precision Electronics
• Fast, Secure Online Checkout and Order Tracking

Shop at www.xonelec.com and source trusted Thin Film Resistors - SMD by Susumu today.

Conclusion

The RR1220P-101-D Thin Film Resistors - SMD by Susumu offer top-tier accuracy, thermal stability, and compactness in demanding electronic applications. Ideal for precision analog and digital systems, these resistors support consistent performance in even the most sensitive designs. Available now from Xon Electronics with international shipping to the USA, India, Australia, Europe, and beyond.

FAQs – RR1220P-101-D Thin Film Resistors - SMD by Susumu

Q1. What is the resistance and tolerance of this resistor?
100 Ohms ±0.5%.

Q2. What is the package size?
1210 surface mount (3.2mm × 2.5mm).

Q3. Is this component RoHS compliant?
Yes, it’s fully lead-free and environmentally safe.

Q4. What is the power rating?
0.1W continuous power rating.

Q5. Where can I purchase it globally?
From www.xonelec.com, with shipping to USA, India, Australia, Europe, and other regions.
