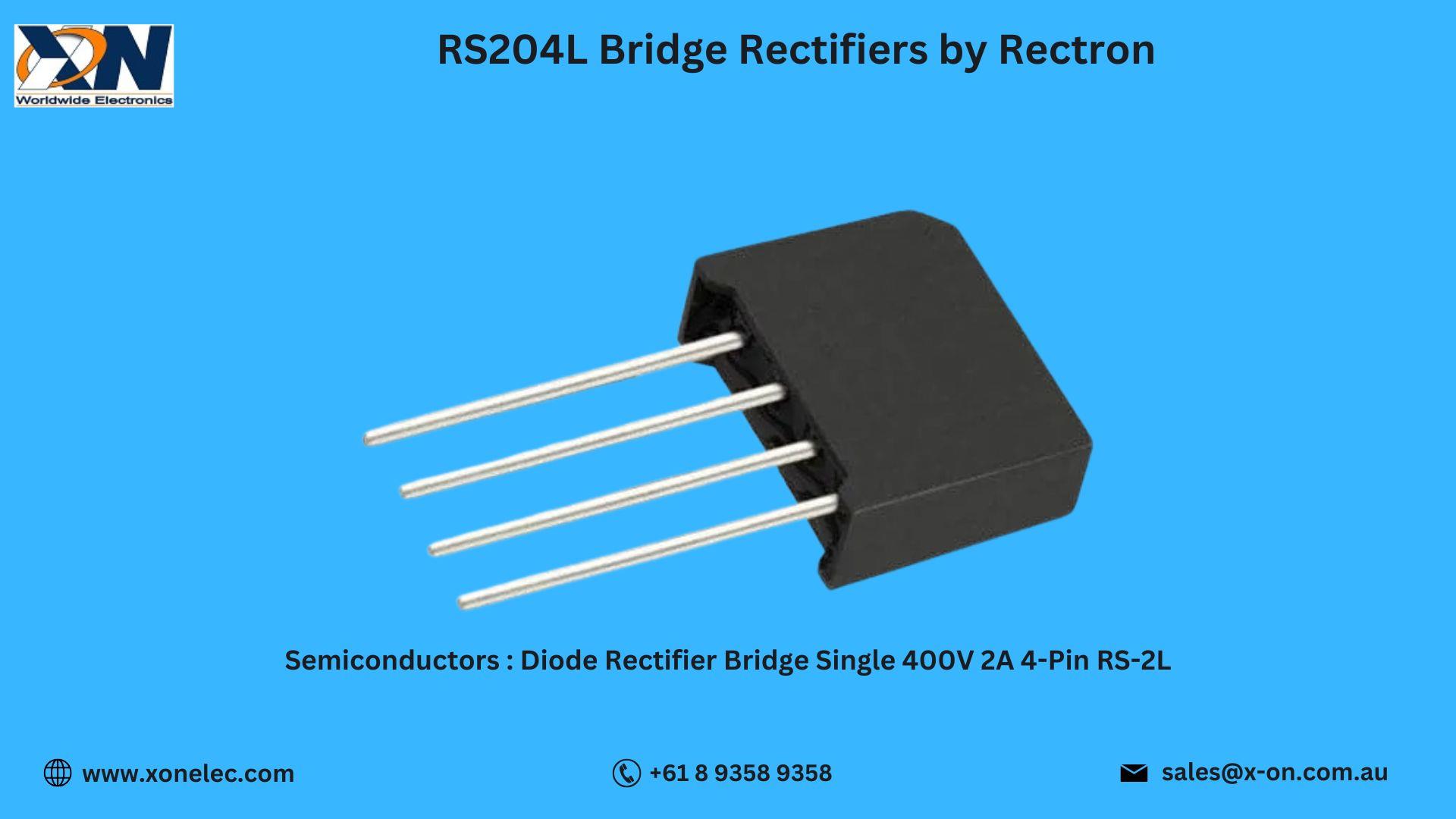

RS204L Bridge Rectifiers by Rectron – Reliable Power Conversion for Modern Electronics
The Bridge Rectifiers RS204L by Rectron are high-quality Semiconductors engineered for dependable AC-to-DC power conversion in both industrial and consumer systems. Featuring low forward voltage drop and robust surge capacity, these Bridge Rectifiers deliver efficient rectification and long-term stability.
In this article, we’ll review technical specifications, key features, common applications, and why these Diodes & Rectifiers are widely used in today’s electronic designs.
Introduction
Rectron’s RS204L Bridge Rectifiers are part of a trusted series of Discrete Semiconductors known for quality and precision. With their compact molded case and efficient thermal management, these devices are built to ensure stable DC output and superior energy efficiency in power supplies, chargers, and control units.
Technical Specifications of RS204L Bridge Rectifiers
-
Manufacturer: Rectron
-
Part Number: RS204L
-
Type: Bridge Rectifier
-
Maximum Repetitive Reverse Voltage (VRRM): 400 V
-
Average Forward Current (IF): 2 A
-
Peak Forward Surge Current (IFSM): 60 A
-
Forward Voltage Drop (VF): 1.1 V (typical)
-
Package Type: RS-2L Compact Molded Case
-
Mounting Style: Through-Hole
-
Operating Temperature Range: -55 °C to +150 °C
-
Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Bridge Rectifiers
Datasheet
With robust mechanical design and efficient electrical performance, the RS204L Bridge Rectifiers deliver stable DC output even under variable load and temperature conditions.
Key Features of RS204L Bridge Rectifiers
-
High Surge Current Capability – Manages sudden inrush currents effectively.
-
Low Forward Voltage Drop – Improves energy efficiency and reduces power loss.
-
Compact Design – Perfect for space-constrained PCBs.
-
Wide Operating Temperature Range – Ideal for industrial and consumer devices.
-
Full-Wave Rectification – Provides smooth DC output from AC input.
These performance benefits make the RS204L Bridge Rectifiers an essential choice among engineers designing with modern Semiconductors and power conversion systems.
Applications of RS204L Bridge Rectifiers
The RS204L Bridge Rectifiers by Rectron are used across a broad range of electronic and electrical systems requiring efficient and durable AC-to-DC conversion:
Engineers trust these Diodes & Rectifiers for reliable current flow and excellent long-term performance.
Use Case Scenario: Compact Power Converter Design
Scenario
A manufacturer of LED power modules needed compact and efficient Bridge Rectifiers for tight PCB layouts.
Problem
Previous models caused excess heat and showed inconsistent rectification under high load.
Solution
The RS204L Bridge Rectifiers by Rectron provided superior thermal efficiency and high surge resistance.
Result
Reduced energy loss, extended product life, and stable performance in industrial and consumer power systems.
Also Available from Other Manufacturers
If you’re looking for alternative Bridge Rectifiers and Discrete Semiconductors, similar models are also available from:
These options offer engineers versatility for different design requirements and power ratings.
Why Buy from XON Electronics
XON Electronics offers a comprehensive range of Semiconductors including the RS204L Bridge Rectifiers by Rectron, with:
- 100% Genuine Products
- Global Shipping – USA, India, Australia, Europe & more
- Competitive Bulk Pricing for OEMs and Distributors
- Technical Assistance for Design and Integration
- Safe and Secure Online Ordering
Buy online from XON Electronics and source authentic Diodes & Rectifiers and Discrete Semiconductors for your next project.
FAQs – RS204L Bridge Rectifiers by Rectron
Q1. What is the voltage and current rating of RS204L?
It supports 400 V reverse voltage and 2 A average forward current.
Q2. Can it handle surge currents?
Yes, the RS204L offers a peak forward surge current up to 60 A.
Q3. Is it suitable for compact power designs?
Yes, its RS-2L package is perfect for space-efficient layouts.
Q4. What applications use RS204L Bridge Rectifiers?
They are used in power supplies, chargers, LED drivers, and appliances.
Q5. Where can I buy RS204L Bridge Rectifiers?
Buy from XON Electronics, shipping to USA, India, Australia, Europe and other countries.
Conclusion
The RS204L Bridge Rectifiers by Rectron deliver efficiency, compactness, and long-term reliability for modern Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers applications. With excellent surge handling and thermal performance, they’re ideal for industrial and consumer electronics alike.
Order today from XON Electronics — your trusted global supplier for Discrete Semiconductors and premium Bridge Rectifiers across industries.
