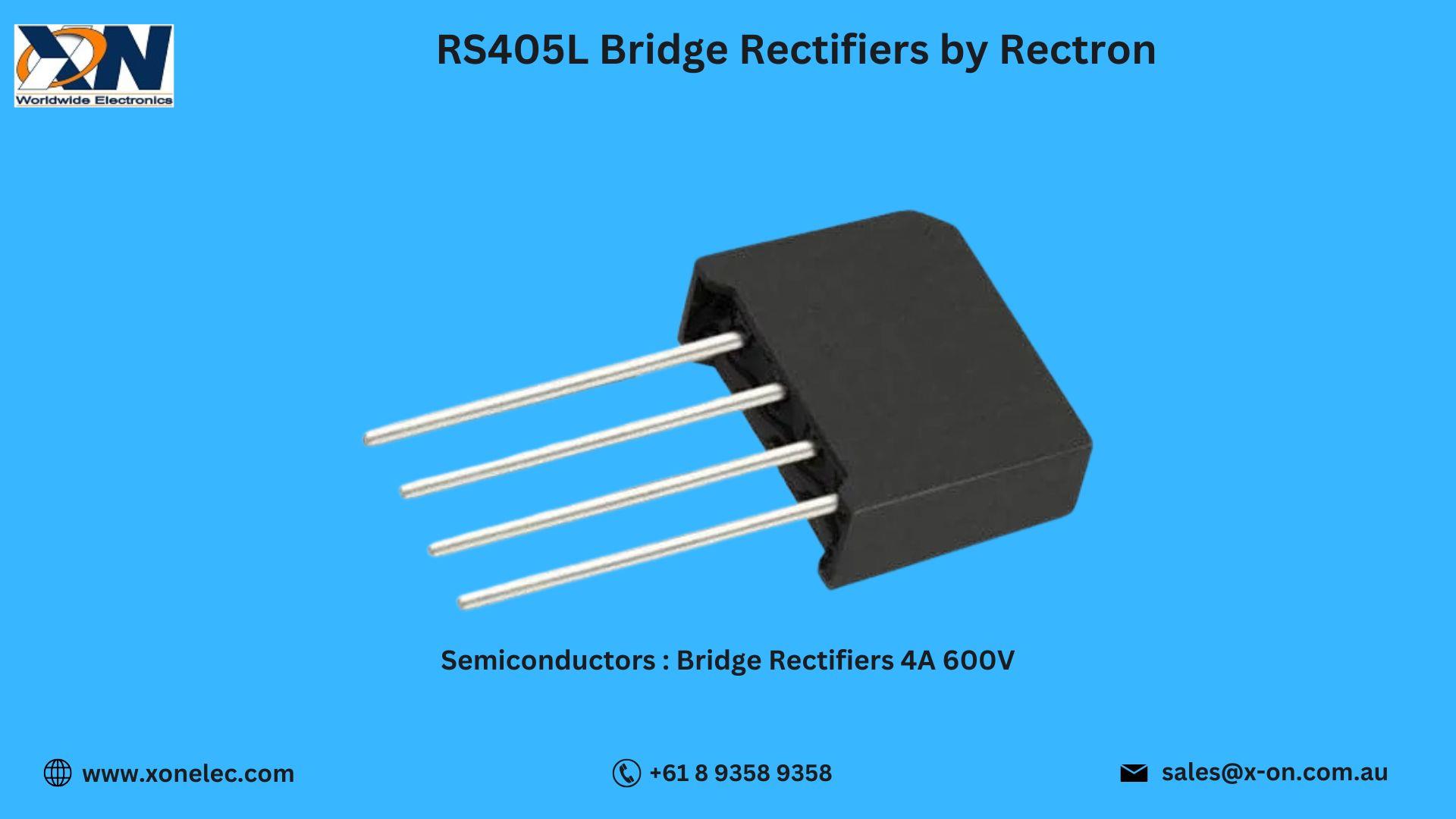

RS405L Bridge Rectifiers by Rectron – High-Performance Power Conversion | Buy Online at XON
Introduction
The Bridge Rectifiers RS405L by Rectron are precision-engineered for efficient AC to DC power conversion in a wide range of electronic applications. As part of the Semiconductors category, these Discrete Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers deliver high reliability, compact design, and superior thermal stability.
Whether used in power supplies, battery chargers, or control systems, the RS405L Bridge Rectifiers ensure consistent performance and low power loss. Explore their specifications, features, and benefits below, available globally from www.xonelec.com.
Technical Specifications of RS405L
-
Manufacturer: Rectron
-
Part Number: RS405L
-
Type: Bridge Rectifiers
-
Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Bridge Rectifiers
-
Maximum Repetitive Peak Reverse Voltage (VRRM): 600 V
-
Average Forward Current (IF(AV)): 4 A
-
Peak Forward Surge Current (IFSM): 150 A
-
Mounting Type: Through-hole
-
Package: RS-4
-
Operating Temperature Range: -55°C to +150°C
The RS405L Bridge Rectifiers are designed for long-term reliability, supporting high surge current and efficient rectification for stable power delivery.
Key Features of RS405L Bridge Rectifiers
-
High current handling capability for demanding applications
-
Low forward voltage drop enhances energy efficiency
-
Compact RS-4 package ideal for space-limited circuits
-
Superior thermal performance for high-temperature environments
-
Reliable rectification with strong surge protection
These characteristics make RS405L a trusted solution within Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers used in modern power systems.
Applications
The RS405L Bridge Rectifiers are commonly used in:
-
Power supply and AC/DC converter systems
-
Battery charging circuits
-
LED drivers and lighting controllers
-
Motor control and industrial automation systems
-
Consumer and household electronic appliances
Thanks to their robust design, RS405L Bridge Rectifiers deliver stable DC output and long-lasting performance in both industrial and consumer environments.
Wiring and Connection Overview
A typical wiring setup for RS405L Bridge Rectifiers includes:
-
AC Input (~): Connect to alternating current source
-
DC Positive (+): Connect to load or circuit positive terminal
-
DC Negative (-): Connect to ground or negative rail
This configuration provides smooth and efficient AC to DC power conversion with minimal distortion or energy loss.
Use Case Scenario: Industrial Control Power Supply
Scenario: An industrial equipment manufacturer needed a compact, efficient rectifier for control unit power supplies.
Problem: Existing components had high heat generation and poor surge resistance.
Solution: The RS405L Bridge Rectifiers by Rectron offered improved thermal stability and surge handling.
Result: Enhanced reliability, reduced energy loss, and extended component lifespan.
Download Datasheet for RS405L
For complete technical specifications, electrical performance graphs, and mechanical dimensions:
Download RS405L Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics is a trusted global distributor of Semiconductors, including Discrete Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers, offering:
-
100% Original Components
-
Global Shipping – USA, India, Australia, Europe & more
-
Competitive OEM & bulk order pricing
-
Expert technical and sourcing support
-
Secure online transactions with fast worldwide delivery
Buy RS405L Bridge Rectifiers today from www.xonelec.com for global availability and assured quality.
FAQs – RS405L Bridge Rectifiers
Q1. What is the voltage rating of RS405L?
It supports up to 600 V reverse voltage.
Q2. What is the average forward current capability?
4 A continuous current capacity.
Q3. What applications are suitable for RS405L?
Power supplies, chargers, LED drivers, and control systems.
Q4. What package type does it use?
RS-4 through-hole compact package.
Q5. Can I order RS405L internationally?
Yes, www.xonelec.com ships globally to USA, India, Australia, Europe, and other countries.
Conclusion
The RS405L Bridge Rectifiers by Rectron combine reliability, compact design, and efficient performance for a variety of AC to DC conversion applications. As part of the Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers category, these components are engineered to deliver superior power conversion efficiency and long-term stability.
Available now at www.xonelec.com with fast worldwide delivery to USA, India, Australia, Europe, and beyond.
