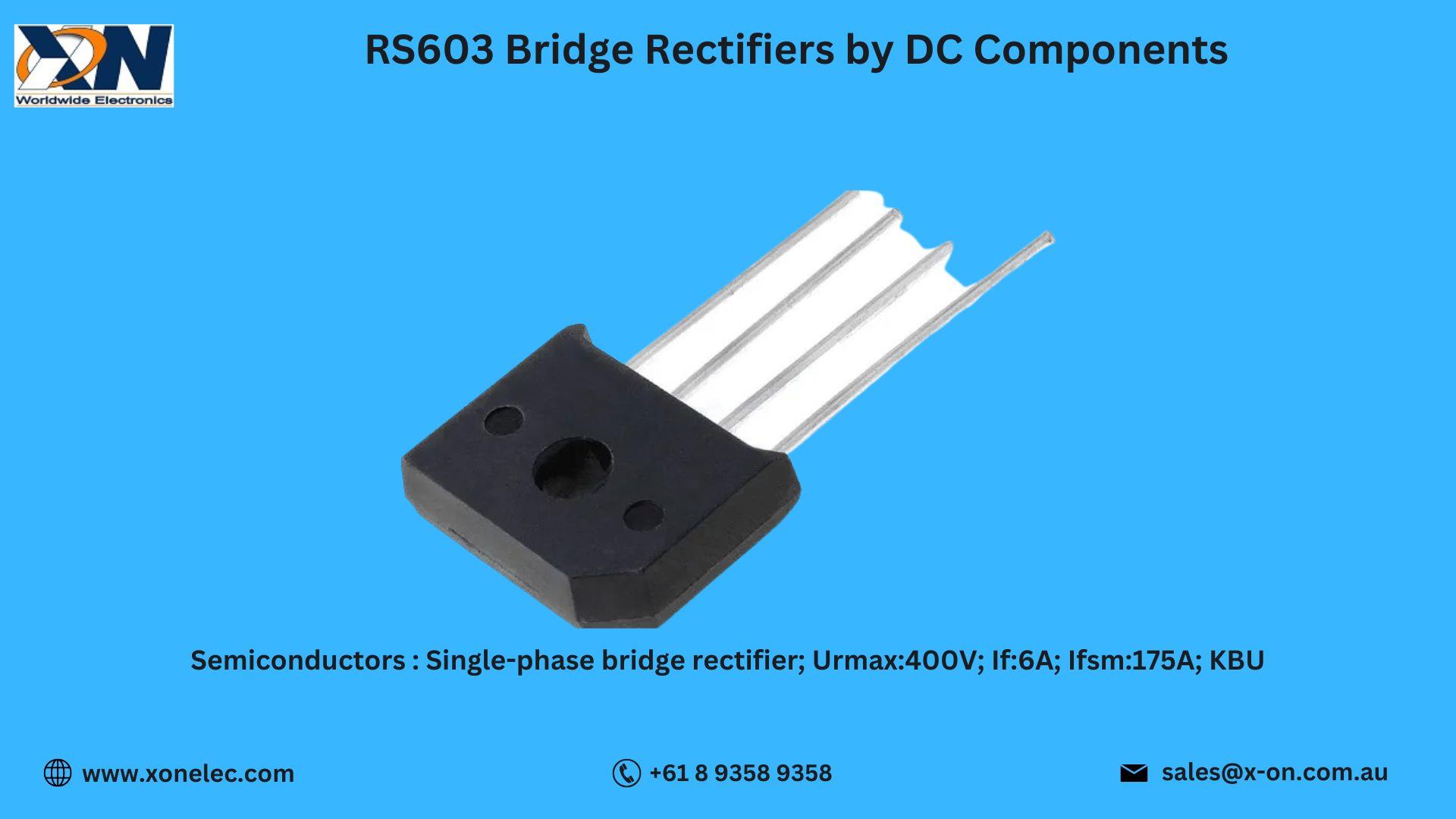

RS603 Bridge Rectifiers by DC Components – Reliable Power Conversion for Industrial and Consumer Electronics
The Bridge Rectifiers RS603 by DC Components are high-efficiency Semiconductors built for dependable AC-to-DC conversion in industrial, commercial, and consumer electronics. With a compact package, robust current handling, and excellent thermal performance, these Bridge Rectifiers deliver consistent and reliable rectification across diverse applications.
In this article, we’ll explore the key specifications, features, and applications of the RS603, and why engineers prefer it for their Discrete Semiconductors and power system designs.
Introduction
DC Components is known for manufacturing high-quality Diodes & Rectifiers, and the RS603 Bridge Rectifiers continue this legacy with superior performance and reliability. Engineered for efficient power conversion and long operational life, these components are an essential part of any power circuit that requires AC to DC conversion.
Technical Specifications of RS603 Bridge Rectifiers
-
Manufacturer: DC Components
-
Part Number: RS603
-
Type: Bridge Rectifier
-
Maximum Repetitive Reverse Voltage (VRRM): 300V
-
Average Forward Current (IF): 6A
-
Peak Forward Surge Current (IFSM): 200A
-
Forward Voltage Drop (VF): 1.1V (typical)
-
Package: RS-4 Compact Package
-
Operating Temperature Range: -55°C to +150°C
-
Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Bridge Rectifiers
Datasheet
The RS603 Bridge Rectifiers deliver dependable AC/DC conversion while maintaining excellent mechanical and electrical stability.
Key Features of RS603 Bridge Rectifiers
-
High Surge Current Capacity – Handles up to 200A surge for heavy-duty loads.
-
Low Forward Voltage Drop – Improves efficiency and reduces power losses.
-
Compact and Easy to Mount – Fits seamlessly into PCB layouts and enclosures.
-
Wide Temperature Range – Operates effectively in harsh environmental conditions.
-
Reliable Full-Wave Rectification – Ensures smooth DC output from AC input.
With these attributes, the RS603 Bridge Rectifiers are among the most reliable Diodes & Rectifiers for engineers seeking efficiency and durability in Semiconductors.
Applications of RS603 Bridge Rectifiers
The RS603 Bridge Rectifiers by DC Components are used in a wide range of applications that require stable and efficient rectification:
-
AC/DC Power Supply Units
-
Battery Charging Circuits
-
LED Drivers and Lighting Systems
-
DC Motor Controllers
-
Industrial Equipment and Instrumentation
These Bridge Rectifiers ensure long-lasting performance and stable DC output across both industrial and consumer electronics.
Use Case Scenario: Power Supply and Charger Systems
Scenario
A power supply manufacturer required compact Bridge Rectifiers for efficient AC/DC conversion in high-volume production.
Problem
Previous models had high voltage drop and limited surge current capability.
Solution
The RS603 Bridge Rectifiers by DC Components provided superior current handling and better efficiency due to low forward voltage drop.
Result
Reduced heat dissipation, longer component life, and improved overall system reliability.
Also Available from Other Manufacturers
If you are exploring similar Bridge Rectifiers or Diodes & Rectifiers, alternatives are also available from:
These manufacturers provide additional options to suit diverse circuit and voltage requirements.
Why Buy from XON Electronics
XON Electronics offers a complete range of Semiconductors, including the RS603 Bridge Rectifiers by DC Components, with:
- 100% Genuine Products
- Global Shipping – USA, India, Australia, Europe & more
- Bulk Discounts for OEMs and Distributors
- Expert Technical Support
- Secure and Reliable Online Ordering
Buy online from XON Electronics and source authentic Discrete Semiconductors and Bridge Rectifiers from trusted global brands.
FAQs – RS603 Bridge Rectifiers by DC Components
Q1. What is the voltage rating of RS603 Bridge Rectifiers?
They are rated for 300V maximum repetitive reverse voltage.
Q2. What is the current handling capacity?
The RS603 can handle up to 6A average forward current.
Q3. What makes RS603 suitable for industrial use?
It offers high surge capacity, compact design, and wide temperature tolerance.
Q4. Can it be used in consumer devices?
Yes, it’s ideal for chargers, lighting systems, and home appliances.
Q5. Where can I buy RS603 Bridge Rectifiers?
You can buy them from XON Electronics, with global shipping to USA, India, Australia, Europe, and other countries.
Conclusion
The RS603 Bridge Rectifiers by DC Components deliver exceptional reliability, efficiency, and performance for modern electronic designs. Perfect for Semiconductors, Diodes & Rectifiers, and industrial control systems, these Bridge Rectifiers are trusted worldwide for stable AC/DC conversion.
Order now from XON Electronics — your reliable partner for Discrete Semiconductors and advanced Bridge Rectifiers across global markets.
