Introduction

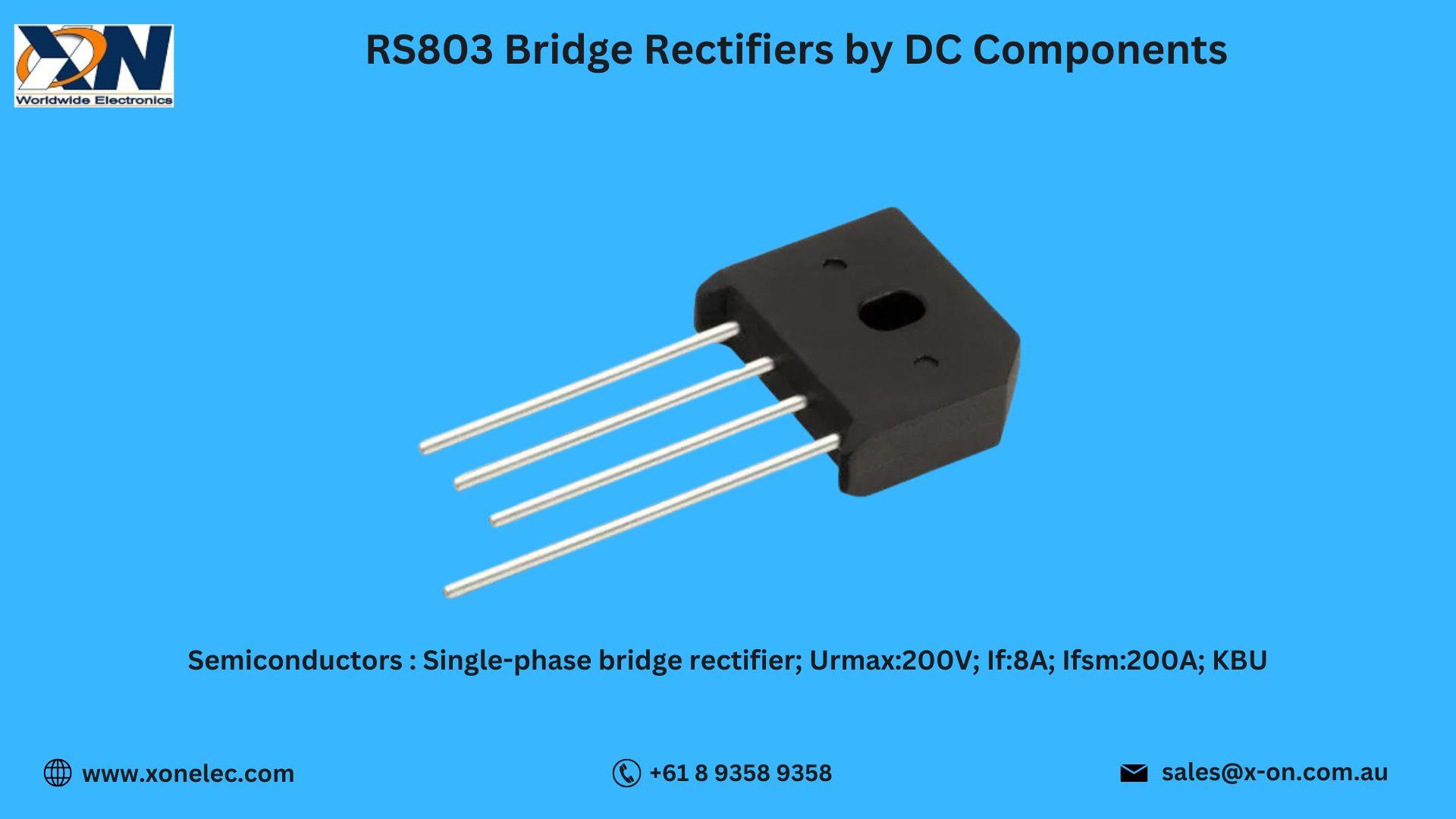

The Bridge Rectifiers RS803 by DC Components are high-performance power conversion devices designed to convert AC input into stable DC output for a wide range of electronic applications. As a key product in the Semiconductors family, these Discrete Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers offer excellent thermal performance, high efficiency, and long-term reliability.
Engineered to perform under diverse environmental conditions, the RS803 Bridge Rectifiers ensure consistent operation in industrial, consumer, and automation circuits. Let’s explore their specifications, features, and applications available now at www.xonelec.com.
Technical Specifications of RS803
-
Manufacturer: DC Components
-
Part Number: RS803
-
Type: Bridge Rectifiers
-
Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Bridge Rectifiers
-
Maximum Repetitive Peak Reverse Voltage (VRRM): 200 V
-
Average Forward Current (IF(AV)): 8 A
-
Mounting Type: Through-hole
-
Package: RS-8
-
Operating Temperature Range: -55°C to +150°C
The RS803 Bridge Rectifiers are optimized for low forward voltage drop, allowing efficient AC to DC power conversion with minimal heat loss.
Key Features of RS803 Bridge Rectifiers
-
High current handling capability for robust performance
-
Low forward voltage drop for energy-efficient conversion
-
Compact RS-8 package for simplified mounting
-
Wide temperature range for diverse environments
-
Superior thermal conductivity and mechanical strength
These advantages make RS803 one of the most dependable choices within the Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers product categories.
Applications
The RS803 Bridge Rectifiers are widely used in:
-
Power supply and converter circuits
-
Battery chargers and adapters
-
LED lighting and control systems
-
Consumer and industrial electronics
-
Motor control and automation equipment
With their high surge current capacity and efficient design, RS803 Bridge Rectifiers provide a stable and reliable solution for both low and medium power circuits.
Wiring and Connection Overview
A standard wiring configuration for RS803 Bridge Rectifiers includes:
-
AC Terminals (~): Connect to the alternating current input source
-
DC Positive (+): Output terminal providing rectified DC voltage
-
DC Negative (-): Output terminal connected to ground or return path
This simple yet effective setup ensures seamless conversion of AC to DC power for multiple electronic applications.
Use Case Scenario: Efficient Power Adapter Design
Scenario: An electronics company required a bridge rectifier for a compact power adapter circuit.
Problem: Previous components experienced high heat loss and poor efficiency.
Solution: The RS803 Bridge Rectifiers by DC Components provided low forward voltage and better thermal management.
Result: Improved energy efficiency, reduced operating temperature, and longer component life.
Also available from other manufacturers
In addition to DC Components, RS803 Bridge Rectifiers and equivalent products are also available from:
For alternatives and global sourcing options, visit www.xonelec.com.
Download Datasheet for RS803
For comprehensive specifications, electrical characteristics, and design data:
Download RS803 Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics is your trusted global distributor for Semiconductors, including Discrete Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers, offering:
-
100% Original and quality-assured components
-
Global Shipping – USA, India, Australia, Europe & more
-
Competitive bulk and OEM pricing
-
Professional sourcing and technical support
-
Secure transactions with fast worldwide delivery
Buy RS803 Bridge Rectifiers now from www.xonelec.com for guaranteed quality and global availability.
FAQs – RS803 Bridge Rectifiers
Q1. What is the reverse voltage rating of RS803?
Up to 200 V reverse voltage protection.
Q2. What is the maximum average current rating?
8 A continuous forward current.
Q3. What are common applications of RS803?
Used in chargers, LED drivers, and power supply modules.
Q4. What package type does RS803 use?
RS-8 through-hole package for easy mounting.
Q5. Is global shipping available?
Yes, www.xonelec.com ships to USA, India, Australia, Europe, and other countries.
Conclusion
The RS803 Bridge Rectifiers by DC Components deliver reliable, efficient, and thermally stable AC to DC power conversion for modern electronic systems. As part of the Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers family, they ensure long-lasting performance in both consumer and industrial environments.
Available now at www.xonelec.com with fast worldwide shipping to USA, India, Australia, Europe, and beyond.
