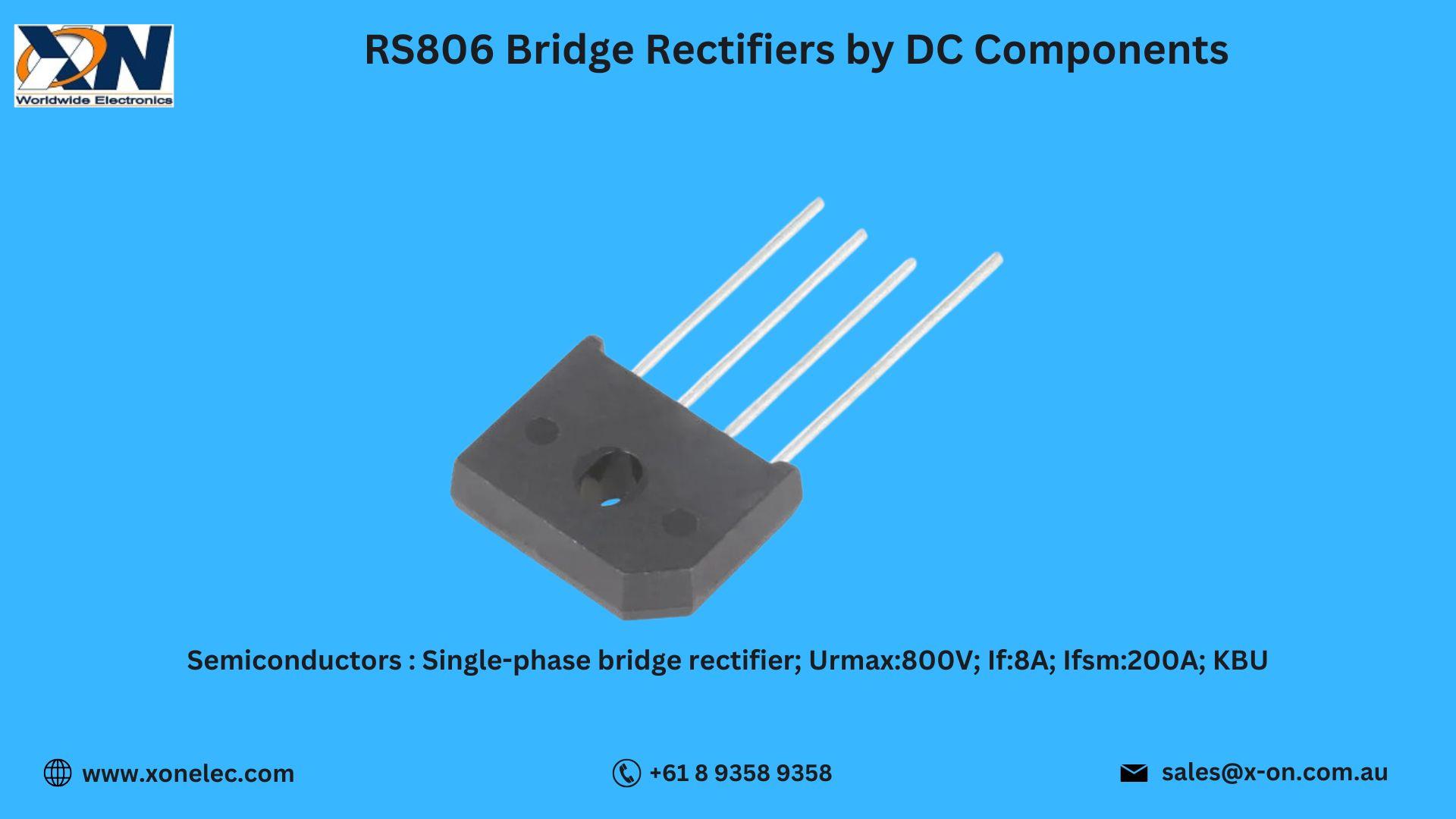

RS806 Bridge Rectifiers by DC Components – High-Efficiency Power Conversion | Buy Online at XON
Introduction
The Bridge Rectifiers RS806 by DC Components are designed for efficient AC to DC power conversion in various electronic and industrial circuits. As part of the Semiconductors family, these Discrete Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers provide reliable performance, compact design, and excellent thermal characteristics.
Built with high-quality materials and advanced rectification technology, the RS806 Bridge Rectifiers ensure stable operation under demanding conditions, making them ideal for power supplies, chargers, and control systems. Discover their specifications, key features, and applications below, available now at www.xonelec.com.
Technical Specifications of RS806
-
Manufacturer: DC Components
-
Part Number: RS806
-
Type: Bridge Rectifiers
-
Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Bridge Rectifiers
-
Peak Reverse Voltage (VRRM): 800 V
-
Average Forward Current (IF(AV)): 8 A
-
Mounting Type: Through-hole
-
Package: RS-8
-
Operating Temperature Range: -55°C to +150°C
The RS806 Bridge Rectifiers are optimized for high power efficiency and low voltage drop, making them suitable for various power supply circuits.
Key Features of RS806 Bridge Rectifiers
-
High surge current capability for power stability
-
Low forward voltage drop for energy-efficient operation
-
Compact design ideal for space-limited assemblies
-
Excellent thermal performance and heat dissipation
-
Wide operating temperature range for robust usage
These advantages make RS806 one of the most reliable Bridge Rectifiers within the Semiconductors, Discrete Semiconductors, and Diodes & Rectifiers product lines.
Applications
The RS806 Bridge Rectifiers are used in a wide range of applications, including:
-
AC to DC power conversion in power supplies
-
Battery chargers and adapters
-
Motor control and industrial automation systems
-
Household and office electronic appliances
-
LED drivers and control circuits
With high reliability and superior performance, RS806 Bridge Rectifiers are trusted across both consumer and industrial electronics sectors.
Wiring and Connection Overview
A standard wiring setup for RS806 Bridge Rectifiers includes:
This configuration ensures efficient conversion from alternating current (AC) to direct current (DC), powering downstream electronic components effectively.
Use Case Scenario: Industrial Power Supply
Scenario: A manufacturer required a durable bridge rectifier for an industrial power converter.
Problem: Previous models exhibited overheating and inconsistent output.
Solution: The RS806 Bridge Rectifiers by DC Components provided reliable conversion, high current handling, and reduced power loss.
Result: Improved system stability, better energy efficiency, and long-term reliability.
Also available from other manufacturers
In addition to DC Components, RS806 Bridge Rectifiers and equivalents are also available from:
For alternate sourcing or compatible components, visit www.xonelec.com.
Download Datasheet for RS806
For complete specifications, performance characteristics, and circuit diagrams:
Download RS806 Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics is a leading distributor of Semiconductors, including Discrete Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers, offering:
-
? 100% Genuine Components
-
?? Worldwide Shipping – USA, India, Australia, Europe & more
-
?? Competitive pricing for bulk and OEM buyers
-
?? Professional technical and sourcing support
-
?? Secure transactions and fast order processing
Buy RS806 Bridge Rectifiers today at www.xonelec.com for global availability and reliable delivery.
FAQs – RS806 Bridge Rectifiers
Q1. What is the peak reverse voltage of RS806?
It supports up to 800 V reverse voltage.
Q2. What is the maximum average forward current?
8 A continuous current handling capacity.
Q3. What applications are suitable for RS806?
Power supplies, chargers, LED drivers, and automation systems.
Q4. Is RS806 suitable for high-temperature environments?
Yes, it operates reliably up to +150°C.
Q5. Can I order RS806 globally?
Yes, www.xonelec.com ships to USA, India, Australia, Europe, and other countries.
Conclusion
The RS806 Bridge Rectifiers by DC Components provide robust performance, high reliability, and superior thermal efficiency for a variety of AC to DC power conversion needs. As part of the Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, and Bridge Rectifiers family, these components are an essential choice for power electronics engineers.
Available now at www.xonelec.com with global delivery to USA, India, Australia, Europe, and more.
