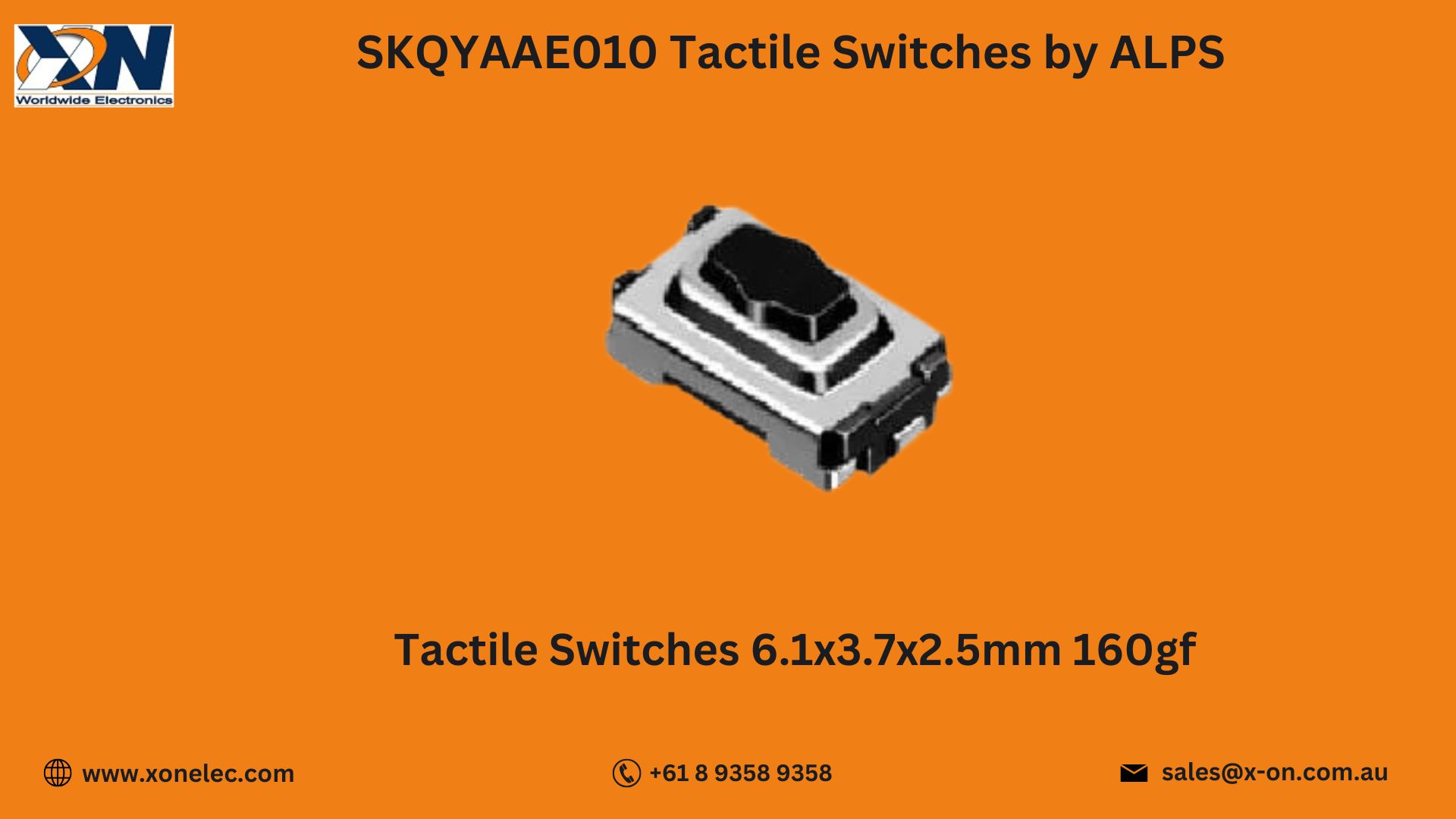

SKQYAAE010 ALPS Tactile Switch – 160gf SMD Type

SKQYAAE010 – Compact Tactile Switch by ALPS for Precise User Input

The Tactile Switches SKQYAAE010 by ALPS are ultra-compact, surface-mount momentary switches designed for precision actuation and long operational life. With a soft click feedback, 160gf operating force, and 3.4mm × 3.0mm footprint, these switches are widely used in remote controls, handheld electronics, automotive interfaces, and industrial control devices.

In this blog, we’ll cover the specifications, core features, use cases, mounting details, and how to purchase or download the datasheet from Xon Electronics.

Technical Specifications of SKQYAAE010

Manufacturer: ALPS Alpine
Part Number: SKQYAAE010
Type: Tactile Switch (Surface Mount)
Mounting Type: SMD (Surface Mount Device)
Actuator Type: Flat
Actuation Force: 1.57N (160gf)
Travel Distance: 0.25mm
Size: 3.4mm x 3.0mm
Contact Rating: 50mA at 12V DC
Operating Life: 200,000 cycles
Operating Temperature: -40°C to +85°C
Category: Switches, Tactile Switches by ALPS

Designed for compact control interfaces, the SKQYAAE010 Tactile Switches by ALPS offer excellent tactile feel, reliability, and ease of integration in modern electronics.

Key Features of SKQYAAE010

Ultra-Compact Size (3.4 × 3.0 mm) – Fits tight PCB layouts
Flat Actuator Design – Low-profile with smooth integration under overlays
Tactile Click Feedback – Enhances user experience with 160gf force
Surface-Mount Construction – Ideal for automated PCB assembly
Long Operating Life – Up to 200,000 cycles ensures reliability

Thanks to these features, Tactile Switches by ALPS are a top choice for manufacturers demanding compactness and dependable user interface solutions.

Applications of SKQYAAE010 Tactile Switches

TV and Audio System Remote Controls
Car Dashboard Panels and Steering Controls
Portable Medical Equipment
Handheld Gaming Devices
Industrial Keypads and Interfaces

The SKQYAAE010 Tactile Switches by ALPS provide consistent tactile feedback and durability in applications where space and performance are equally critical.

SMD Mounting & Soldering Guide

Mounting Instructions:

[Step 1] Position the SKQYAAE010 switch on the SMD pads using a pick-and-place machine
[Step 2] Reflow solder the device using standard lead-free or leaded profiles
[Step 3] Confirm contact alignment and mechanical actuation on assembled board

The switch is compact yet robust enough for repeated presses in space-constrained enclosures.

Use Case Scenario – Remote Control Button Integration

Scenario: A home appliance brand needed a tactile switch for a slim remote control.

Problem: Larger switches affected the layout and tactile response consistency.

Solution: The SKQYAAE010 offered a compact, reliable, and soft-click solution that fit beneath a flexible membrane overlay.

Result: Improved tactile feedback, longer switch life, and a sleek industrial design.

That’s why engineers rely on Tactile Switches by ALPS for reliable HMI design.

Download Datasheet for SKQYAAE010

Need footprint specs, soldering recommendations, or mechanical drawings?

[Download SKQYAAE010 Datasheet from Xon Electronics]

Why Buy from Xon Electronics?

Xon Electronics stocks a wide range of Tactile Switches by ALPS, including the SKQYAAE010:

100% Genuine ALPS Alpine Components
Worldwide Delivery – USA, India, Australia, Europe & more
OEM Bulk Supply & Fast Dispatch
Technical Support for Integration
Secure and Convenient Online Checkout

Buy now at www.xonelec.com and upgrade your user interface design with trusted ALPS quality.

Conclusion

The SKQYAAE010 Tactile Switches by ALPS deliver high-performance tactile response in an ultra-compact package. Whether you're designing a sleek remote, compact wearable, or automotive switch interface, these switches deliver lasting performance and excellent click feel. For dependable interface solutions, choose Tactile Switches by ALPS, available globally from Xon Electronics.
