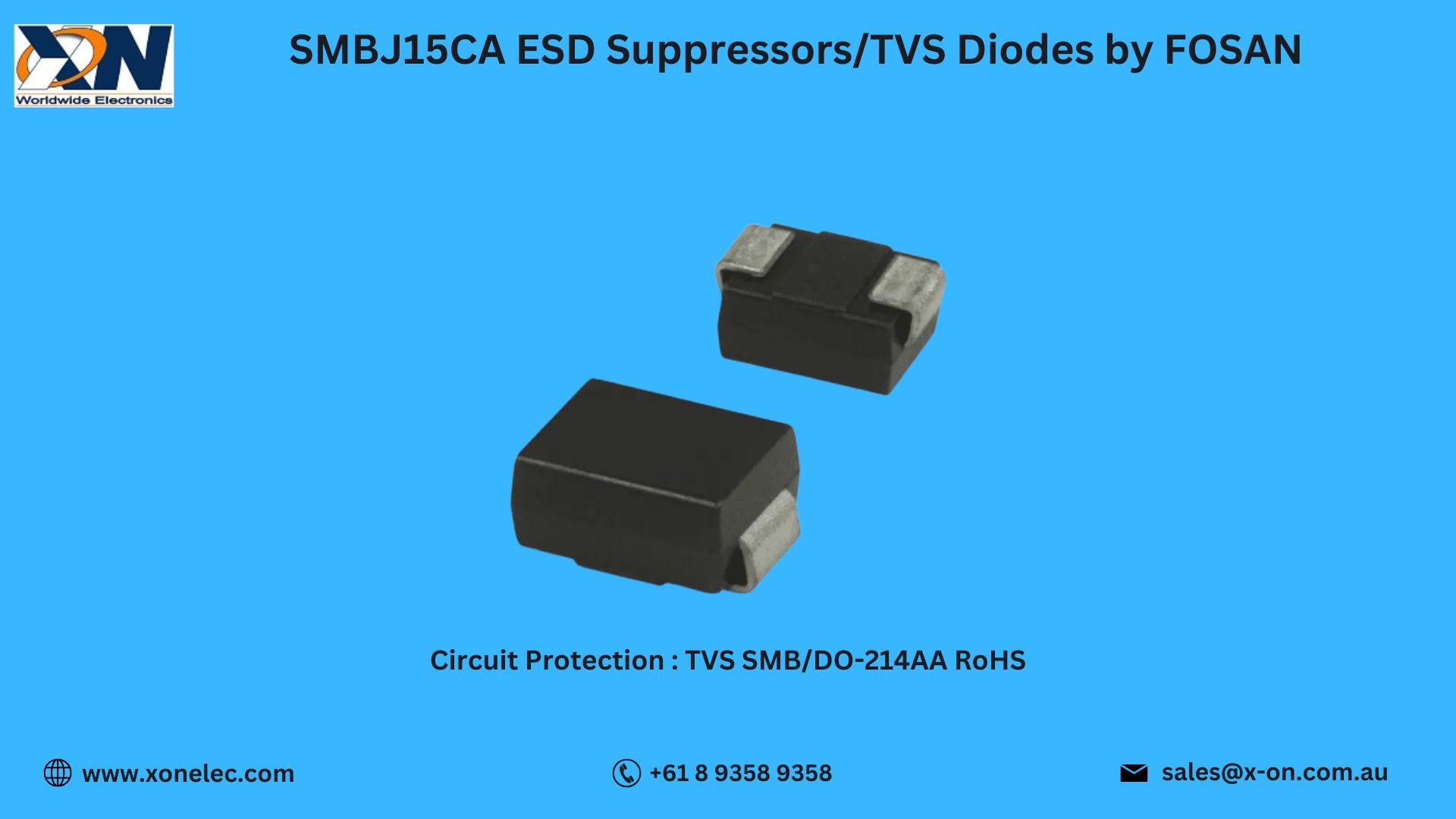

SMBJ15CA ESD Suppressors/TVS Diodes by FOSAN
The ESD Suppressors/TVS Diodes SMBJ15CA by FOSAN offer reliable circuit protection against electrostatic discharge (ESD) and transient voltage spikes in sensitive electronics. These ESD Suppressors/TVS Diodes are ideal for industrial, consumer, and communication equipment, ensuring your designs remain safe and functional even in harsh electrical environments.
Technical Specifications of SMBJ15CA
-
Manufacturer: FOSAN
-
Part Number: SMBJ15CA
-
Reverse Stand-Off Voltage (VR): 15V
-
Breakdown Voltage: 16.7V (min)
-
Clamping Voltage: 24.4V (typ)
-
Peak Pulse Power: 600W
-
Polarity: Bidirectional
-
Package/Case: DO-214AA (SMBJ)
-
Mounting Type: Surface Mount (SMD)
-
Operating Temperature: -55°C to +150°C
Key Features
-
High surge handling capacity (600W peak pulse power)
-
Excellent clamping capability
-
Bidirectional ESD Suppressors/TVS Diodes for symmetrical protection
-
Surface-mount design in compact DO-214AA package
-
Fast response time for sensitive circuit protection
-
RoHS compliant and UL certified components
These features make SMBJ15CA ESD Suppressors/TVS Diodes by FOSAN ideal for safeguarding low-voltage electronics.
Applications
-
Communication systems
-
Consumer electronics
-
Power management circuits
-
Industrial automation controls
-
Embedded and automotive electronics
With robust transient voltage suppression, SMBJ15CA ESD Suppressors/TVS Diodes provide unmatched circuit protection in all these applications.
Wiring and Connection Overview
-
Mount directly across vulnerable power or signal lines
-
Ensure minimal lead inductance on PCB layout
-
Can be installed in bidirectional configurations
-
Compatible with automated surface mount processes
Use Case: ESD Protection for Communication Module
Challenge: A data transmission module was failing due to ESD-induced damage.
Solution: Integrated SMBJ15CA ESD Suppressors/TVS Diodes by FOSAN at I/O interfaces.
Result: Achieved 100% reduction in ESD-related downtime, improving system reliability.
Download Datasheet
Download the SMBJ15CA Datasheet to view comprehensive specifications, mechanical drawings, and compliance certificates for smooth product integration.
Why Buy from X-ON Electronics?
-
We ship globally to USA, India, Australia, Europe, and many more countries
-
Guaranteed authentic components from FOSAN
-
Bulk purchase support for OEMs and production houses
-
Fast and reliable delivery services
-
Dedicated technical support and RFQ assistance
Order SMBJ15CA ESD Suppressors/TVS Diodes today from www.xonelec.com and enhance your system’s circuit protection.
FAQs – SMBJ15CA by FOSAN
Q1: Can this diode protect USB ports from ESD?
Yes, it is ideal for protecting USB, HDMI, and data lines.
Q2: Is the SMBJ15CA RoHS compliant?
Absolutely. FOSAN manufactures RoHS-compliant ESD Suppressors/TVS Diodes.
Q3: What mounting method does this device support?
It uses a surface-mount DO-214AA package, suitable for SMT lines.
Q4: Can I use this for AC signal lines?
Yes, its bidirectional nature supports both AC and DC applications.
Conclusion
The SMBJ15CA ESD Suppressors/TVS Diodes by FOSAN deliver efficient, cost-effective, and reliable circuit protection for your electronic systems. With high power handling, compact footprint, and bidirectional protection, these ESD Suppressors/TVS Diodes are the right choice for modern electronics designers.
