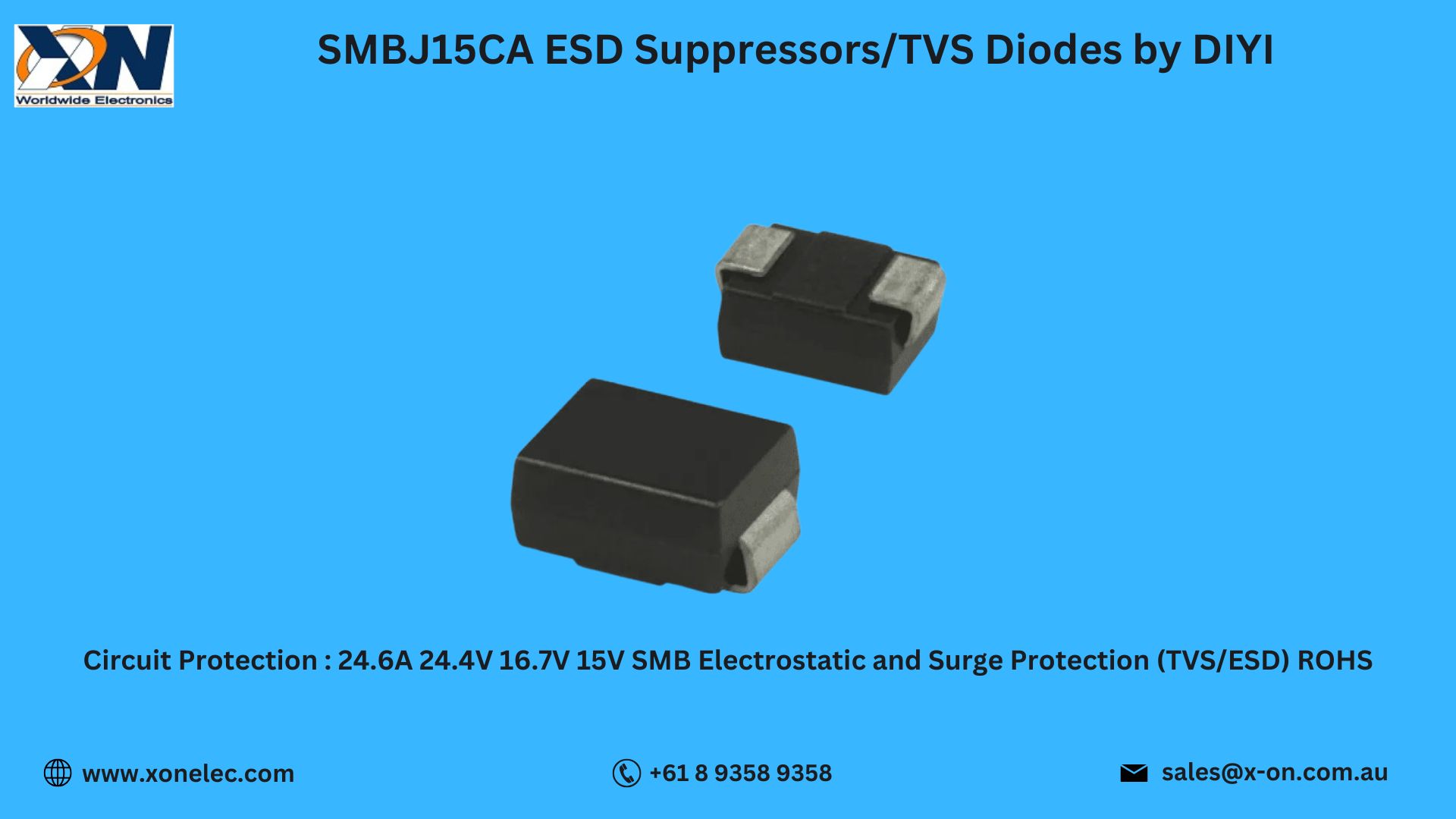

SMBJ15CA ESD Suppressors/TVS Diodes by DIYI
The ESD Suppressors/TVS Diodes SMBJ15CA by DIYI are robust and reliable components designed to shield sensitive electronic circuits from electrostatic discharge and voltage spikes. As essential elements in Circuit Protection, these ESD Suppressors/TVS Diodes are widely used in high-performance applications across global markets.
Technical Specifications of SMBJ15CA
-
Manufacturer: DIYI
-
Product Type: ESD Suppressors/TVS Diodes
-
Part Number: SMBJ15CA
-
Reverse Stand-off Voltage: 15V
-
Breakdown Voltage: 16.7V typical
-
Peak Pulse Current: 30.1A
-
Peak Pulse Power: 600W
-
Polarity: Bidirectional
-
Package: DO-214AA (SMBJ)
Key Features
-
High surge capability of 600W for exceptional protection
-
Fast response time against ESD and electrical transients
-
Bidirectional protection design
-
Surface-mountable in standard DO-214AA (SMBJ) form factor
-
Ideal for use in Circuit Protection circuits requiring robust ESD Suppressors/TVS Diodes
Applications
-
Consumer electronics (TVs, set-top boxes, audio devices)
-
Industrial control and automation
-
Network and telecom hardware
-
Embedded systems and microcontroller boards
-
Automotive ECUs and dashboard electronics
The SMBJ15CA ESD Suppressors/TVS Diodes are perfect for applications where reliable Circuit Protection and transient suppression are critical.
Wiring and Connection Overview
-
Mount across signal or power lines requiring ESD or surge protection
-
Correct polarity must be followed for unidirectional models (SMBJ15CA is bidirectional)
-
Use close to protected components for optimal ESD Suppressors/TVS Diodes performance
Use Case: Embedded Board Power Line Protection
Issue: Sensitive 15V power line exposed to ESD and spikes
Solution: Incorporated SMBJ15CA ESD Suppressors/TVS Diodes by DIYI across the 15V line
Result: Eliminated frequent failures, ensured safe operation of embedded systems
Why Choose Xon Electronics?
-
Global delivery across USA, India, Australia, Europe, and more
-
100% genuine DIYI components
-
Real-time stock updates and volume discounts
-
Expert technical advice and support
Buy the SMBJ15CA ESD Suppressors/TVS Diodes by DIYI from www.xonelec.com for fast, reliable service.
FAQs – SMBJ15CA by DIYI
Q1: Is SMBJ15CA suitable for automotive-grade designs?
Yes, its high surge capacity and fast clamping make it ideal.
Q2: What is the mounting method?
Surface-mount DO-214AA (SMBJ) package.
Q3: Can I use it for a 15V DC line?
Yes, it's rated for 15V reverse stand-off voltage.
Q4: Where do you ship?
We ship globally, including USA, India, Australia, Europe, and other countries.
Conclusion
The SMBJ15CA ESD Suppressors/TVS Diodes by DIYI are reliable and efficient for safeguarding your electronic systems. Their superior clamping characteristics and bidirectional protection make them a top choice for engineers seeking advanced Circuit Protection using ESD Suppressors/TVS Diodes.
