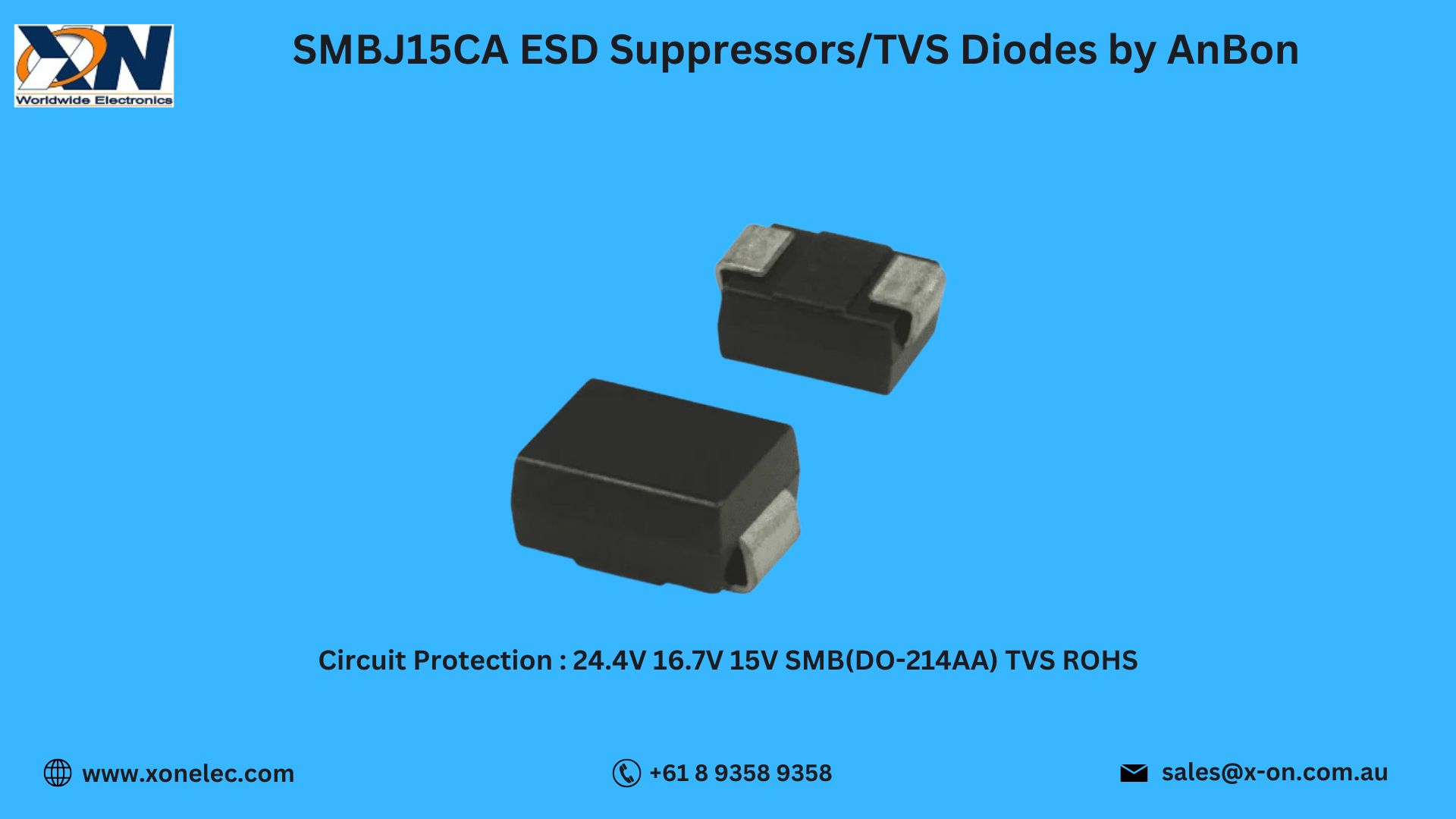

SMBJ15CA ESD Suppressors by AnBon – Reliable Circuit Protection Solution

The ESD Suppressors/TVS Diodes SMBJ15CA by AnBon are high-quality bidirectional TVS diodes designed to protect sensitive electronic devices from electrostatic discharge (ESD) and transient voltage surges. With a 600W peak pulse power rating and ultra-fast response time, the SMBJ15CA is widely used in industrial, telecom, automotive, and consumer applications for effective circuit protection.

This blog highlights technical specifications, key features, applications, wiring details, a real-world use case, and global purchasing options from Xon Electronics, shipping to the USA, India, Australia, Europe, and more.

1. Technical Specifications of SMBJ15CA

• Manufacturer: AnBon

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

The SMBJ15CA combines compact size and robust surge protection for reliable circuit protection.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power for high-energy surge absorption

• Bidirectional Protection for both AC and DC circuits

• Ultra-Fast Response Time (<1 ps) for immediate clamping

• Low Clamping Voltage to protect sensitive electronics

• Compact SMB Package for easy PCB integration

• RoHS and Lead-Free Compliant

The SMBJ15CA ESD Suppressors/TVS Diodes are a preferred choice for high-performance circuit protection.

3. Applications of SMBJ15CA

The SMBJ15CA is suitable for:

• Industrial Control and Automation Systems

• Telecom and Networking Equipment

• LED Drivers and Display Modules

• Automotive Electronics and Infotainment Devices

• Power Supplies and Embedded Devices

• Consumer Electronics

It provides dependable circuit protection for a wide range of applications.

4. Wiring and Connection Overview

Typical wiring configuration for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

This simple setup ensures quick voltage clamping to protect critical components.

5. Use Case Scenario: Surge Protection in Power Supplies

Scenario: A power supply manufacturer experienced repeated failures during voltage surges.

Problem: Existing protection devices could not handle repeated transients.

Solution: Integrating SMBJ15CA by AnBon improved surge endurance and reliability.

Result: Reduced failures, increased customer satisfaction, and lower maintenance costs.

6. Download Datasheet for SMBJ15CA

Access detailed specifications and compliance information here:

Download SMBJ15CA Datasheet from Xon Electronics

7. Why Buy from Xon Electronics?

Order SMBJ15CA ESD Suppressors/TVS Diodes by AnBon from Xon Electronics and enjoy:

• 100% Genuine AnBon Components
• Worldwide Shipping – USA, India, Australia, Europe & more
• Bulk Pricing for OEMs and EMS providers
• Expert Technical Support
• Secure and Hassle-Free Ordering

Your trusted partner for circuit protection components globally.

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What type of diode is SMBJ15CA?
It is a bidirectional TVS diode for surge and ESD suppression.

Q2. What is its power rating?
It can handle up to 600W of peak pulse power.

Q3. Where can it be used?
It is ideal for telecom, industrial, automotive, LED, and power supply applications requiring circuit protection.

Q4. Is it RoHS compliant?
Yes, it is fully RoHS and lead-free compliant.

Q5. Can I buy it globally?
Yes, Xon Electronics ships to USA, India, Australia, Europe, and more.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by AnBon provide fast, reliable, and efficient surge protection in a compact SMB package. Perfect for high-performance circuit protection, they are available now at Xon Electronics, with global shipping to the USA, India, Australia, Europe, and other regions.
