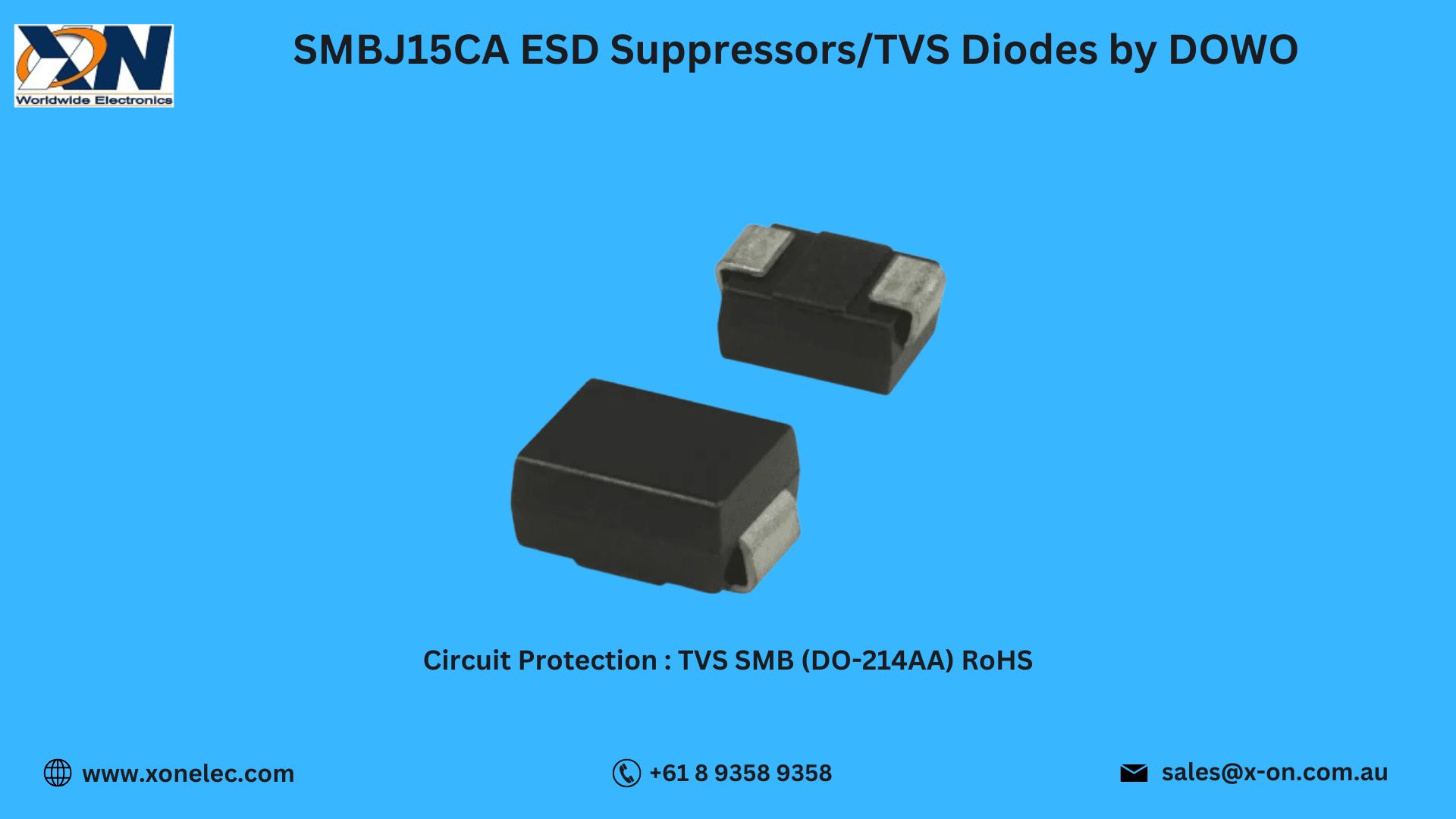

SMBJ15CA ESD Suppressors/TVS Diodes by DOWO
The ESD Suppressors/TVS Diodes SMBJ15CA by DOWO offer exceptional surge protection for sensitive electronic circuits. With high energy-handling capabilities and a compact design, these ESD Suppressors/TVS Diodes are essential components in safeguarding systems from electrostatic discharge and transient voltage spikes. Widely used across automotive, industrial, and consumer applications, these diodes exemplify reliable circuit protection.
Technical Specifications of SMBJ15CA
-
Manufacturer: DOWO
-
Part Number: SMBJ15CA
-
Category: ESD Suppressors/TVS Diodes
-
Peak Pulse Power: 600W (10/1000µs waveform)
-
Standoff Voltage: 15V
-
Breakdown Voltage: 16.7V min
-
Clamping Voltage: 24.4V max
-
Polarity: Bidirectional
-
Mounting Type: Surface Mount (SMB Package)
-
RoHS Compliant
Key Features
-
Compact SMB (DO-214AA) package for space-saving PCB designs
-
Bidirectional polarity to safeguard both positive and negative transient pulses
-
High reliability and excellent clamping capability
-
Designed to meet IEC61000-4-2 ESD standards
-
Ideal for high-speed data and power line protection
Applications
-
Circuit Protection in telecom, automotive, and industrial controls
-
Protection for USB, HDMI, Ethernet, and CAN interfaces
-
Consumer electronics such as smart home devices
-
Surge protection in LED lighting and energy systems
-
Used in embedded and IoT systems
These ESD Suppressors/TVS Diodes are the first line of defense in transient voltage protection across countless industries.
Wiring and Connection Overview
-
2-terminal SMD device placed across signal or power lines
-
No need for additional components
-
Compatible with reflow and wave soldering processes
-
Straightforward surface mounting improves assembly speed
Use Case Example
A telecom equipment manufacturer in India integrated the SMBJ15CA ESD Suppressors/TVS Diodes by DOWO into their network interface modules. The result was a dramatic reduction in service returns due to ESD-related failures, improving reliability across their global deployments in USA, Australia, Europe, and beyond.
Datasheet Download
Download SMBJ15CA Datasheet by DOWO
Get complete electrical characteristics, application circuits, and thermal data.
Why Choose X-ON Electronics?
-
Trusted global supplier serving USA, India, Australia, Europe, and more
-
Authentic components with manufacturer assurance
-
Fast dispatch and technical support
-
Affordable pricing for bulk and individual buyers
FAQs – SMBJ15CA by DOWO
Q1: What is the power rating of SMBJ15CA?
It has a peak pulse power rating of 600W (10/1000µs waveform).
Q2: Is the diode unidirectional or bidirectional?
It is bidirectional, providing symmetrical clamping on both lines.
Q3: What type of applications benefit from this diode?
Perfect for circuit protection in telecom, consumer, and automotive electronics.
Q4: Is the product RoHS compliant?
Yes, it is fully RoHS compliant for eco-friendly electronics design.
Conclusion
The SMBJ15CA ESD Suppressors/TVS Diodes by DOWO are an excellent investment for protecting sensitive electronics from damaging transients. Designed to deliver consistent, reliable circuit protection, they fit a wide range of applications in Circuit Protection, ESD Suppressors/TVS Diodes, and beyond. Trust in DOWO and X-ON Electronics to secure your designs with high-performance suppression technology.
