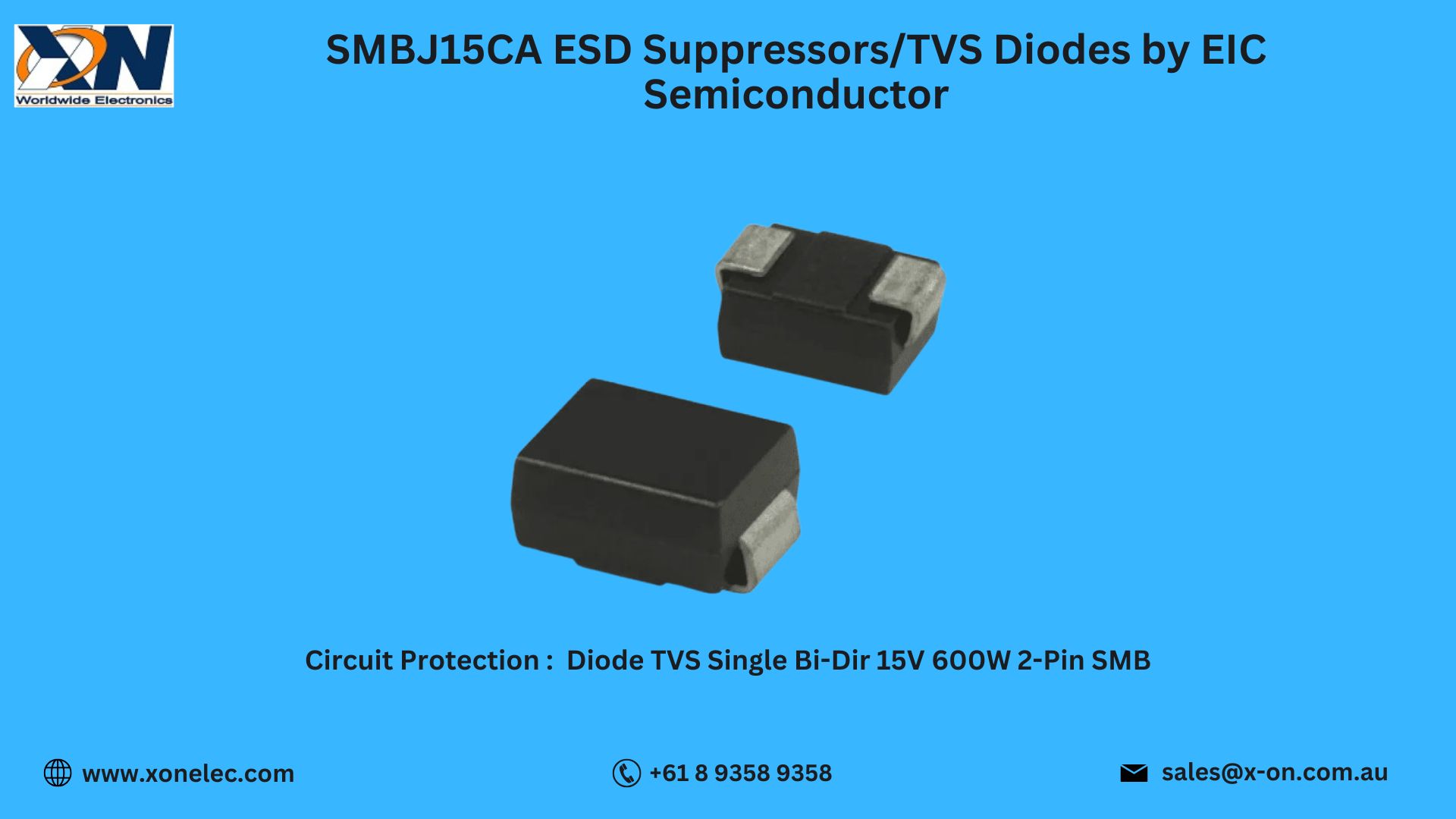

SMBJ15CA ESD Suppressors by EIC Semiconductor – Reliable Circuit Protection

The ESD Suppressors/TVS Diodes SMBJ15CA by EIC Semiconductor are high-performance bidirectional TVS diodes that protect sensitive electronics from electrostatic discharge (ESD) and transient voltage surges. With a 600W peak pulse power rating and ultra-fast response time, the SMBJ15CA is an excellent choice for telecom, industrial, automotive, and consumer devices requiring dependable circuit protection.

This blog highlights the technical specifications, key features, applications, wiring details, and global purchasing options from Xon Electronics, shipping to the USA, India, Australia, Europe, and more.

1. Technical Specifications of SMBJ15CA

• Manufacturer: EIC Semiconductor

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

The SMBJ15CA ensures compact design and strong surge protection for high-reliability circuit protection.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power for superior surge handling

• Bidirectional Design for AC and DC protection

• Ultra-Fast Response Time (<1 ps) for instant clamping

• Low Clamping Voltage to safeguard sensitive devices

• Compact SMB Package for PCB efficiency

• RoHS and Lead-Free Compliant

The SMBJ15CA ESD Suppressors/TVS Diodes deliver robust and efficient circuit protection.

3. Applications of SMBJ15CA

The SMBJ15CA is widely used in:

• Industrial Automation and Control Systems

• Telecom and Networking Equipment

• LED Drivers and Display Panels

• Automotive Electronics and Infotainment Systems

• Power Supplies and Embedded Devices

• Consumer Electronics

It is a trusted solution for long-lasting circuit protection.

4. Wiring and Connection Overview

Typical wiring for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

This configuration ensures immediate voltage clamping to protect electronics.

5. Use Case Scenario: Surge Protection in LED Systems

Scenario: A lighting manufacturer faced failures due to high surge events.

Problem: Existing diodes lacked durability for repetitive transient events.

Solution: Using SMBJ15CA by EIC Semiconductor improved protection and system reliability.

Result: Reduced failures, longer lifespan, and better customer satisfaction.

6. Download Datasheet for SMBJ15CA

Download SMBJ15CA Datasheet from Xon Electronics

7. Why Buy from Xon Electronics?

Buy SMBJ15CA ESD Suppressors/TVS Diodes by EIC Semiconductor from Xon Electronics and enjoy:

• 100% Genuine Components
• Worldwide Shipping – USA, India, Australia, Europe & more
• Bulk Pricing for OEMs and Assemblers
• Expert Technical Support
• Secure & Hassle-Free Ordering

Your trusted source for circuit protection components globally.

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What is SMBJ15CA used for?
It is a bidirectional TVS diode for surge and ESD suppression.

Q2. What is its power rating?
It can handle up to 600W peak pulse power.

Q3. Where can it be used?
It is ideal for telecom, industrial, automotive, LED, and power supply applications requiring circuit protection.

Q4. Is it RoHS compliant?
Yes, it is fully RoHS and lead-free compliant.

Q5. Can it be purchased globally?
Yes, Xon Electronics ships to USA, India, Australia, Europe, and other countries.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by EIC Semiconductor deliver reliable surge handling, ultra-fast clamping, and compact packaging. They are ideal for circuit protection in telecom, industrial, automotive, and consumer electronics. Order today from Xon Electronics, shipping worldwide to the USA, India, Australia, Europe, and more.
