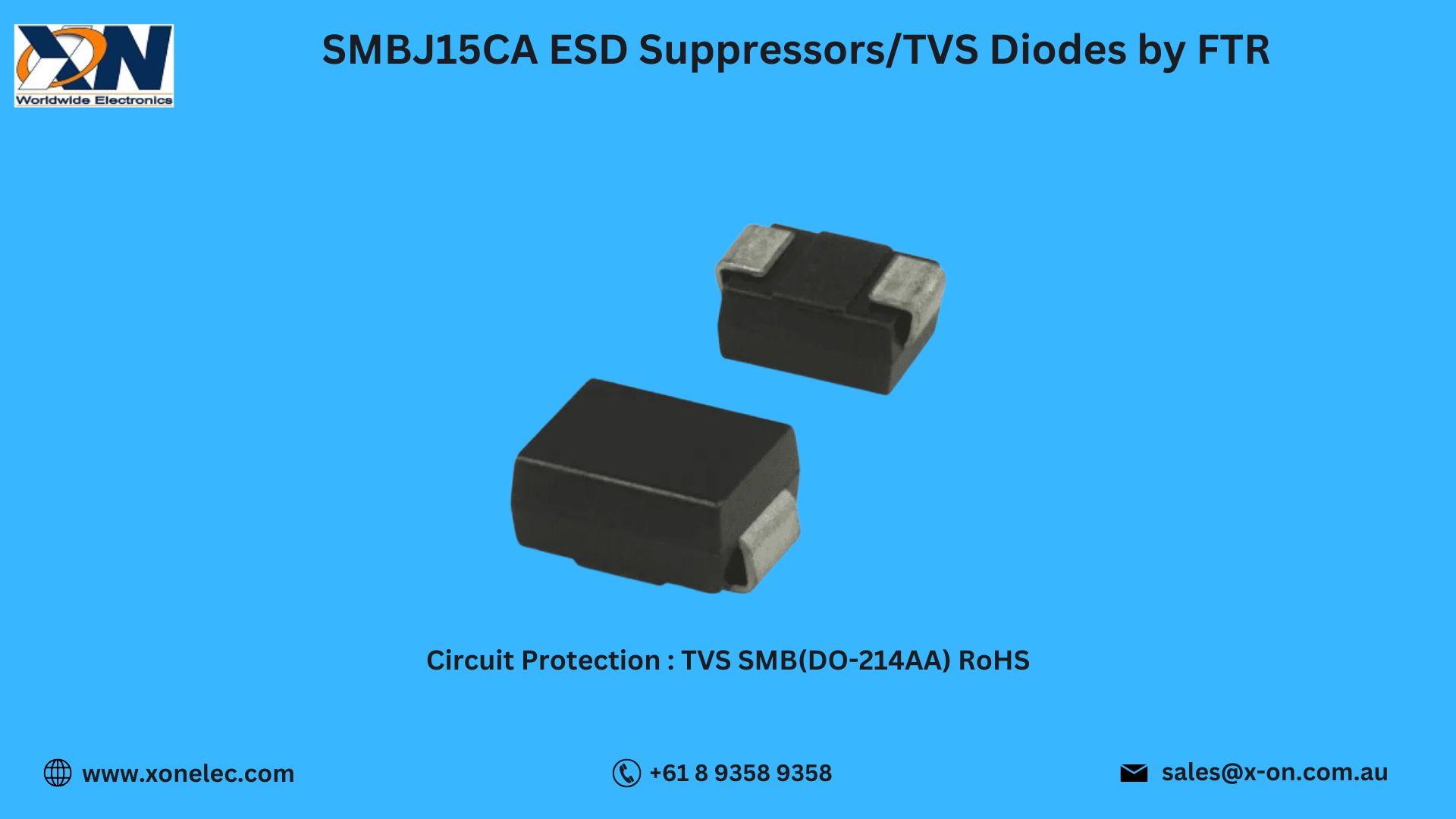

SMBJ15CA ESD Suppressors/TVS Diodes by FTR
In high-speed digital circuits, safeguarding sensitive components from electrostatic discharge (ESD) and transient voltage spikes is critical. The ESD Suppressors/TVS Diodes SMBJ15CA by FTR are a reliable and robust solution designed to deliver superior circuit protection. These ESD Suppressors/TVS Diodes provide bidirectional protection, ensuring stability and safety for a wide range of electronic systems.
Technical Specifications of SMBJ15CA
-
Manufacturer: FTR
-
Part Number: SMBJ15CA
-
Type: TVS (Transient Voltage Suppressor) Diode
-
Polarity: Bidirectional
-
Reverse Standoff Voltage: 15V
-
Breakdown Voltage: 16.7V Min
-
Clamping Voltage: 24.4V Max
-
Peak Pulse Power Dissipation: 600W (10/1000µs waveform)
-
Package / Case: DO-214AA (SMB)
-
Mounting Type: Surface Mount (SMD)
-
RoHS Compliant: Yes
Key Features
-
600W peak pulse power capability
-
Fast clamping response for sensitive devices
-
Bidirectional protection for flexible applications
-
Compact SMB package for space-saving designs
-
Fully compliant with RoHS and environmental regulations
These ESD Suppressors/TVS Diodes are ideal for protecting communication interfaces, power lines, and high-speed data circuits.
Applications
-
Consumer electronics (USB, HDMI, etc.)
-
Industrial control systems
-
Automotive electronic modules
-
Power supply lines
-
Communication devices
When integrated correctly, SMBJ15CA ESD Suppressors/TVS Diodes by FTR ensure robust and long-lasting circuit protection in critical and sensitive environments.
Wiring and Connection Overview
-
Surface Mount via DO-214AA (SMB) footprint
-
Installed across protected lines (data/power)
-
No external components needed
-
Bidirectional layout simplifies design
Use Case Example
A leading medical device company utilized SMBJ15CA ESD Suppressors/TVS Diodes to shield their diagnostic handheld tools. These devices, frequently handled in electrostatic-prone environments, showed improved longevity and fewer failure rates after integration.
Datasheet Download
Click here to download the SMBJ15CA Datasheet – Includes detailed electrical characteristics, curves, and mechanical drawings.
