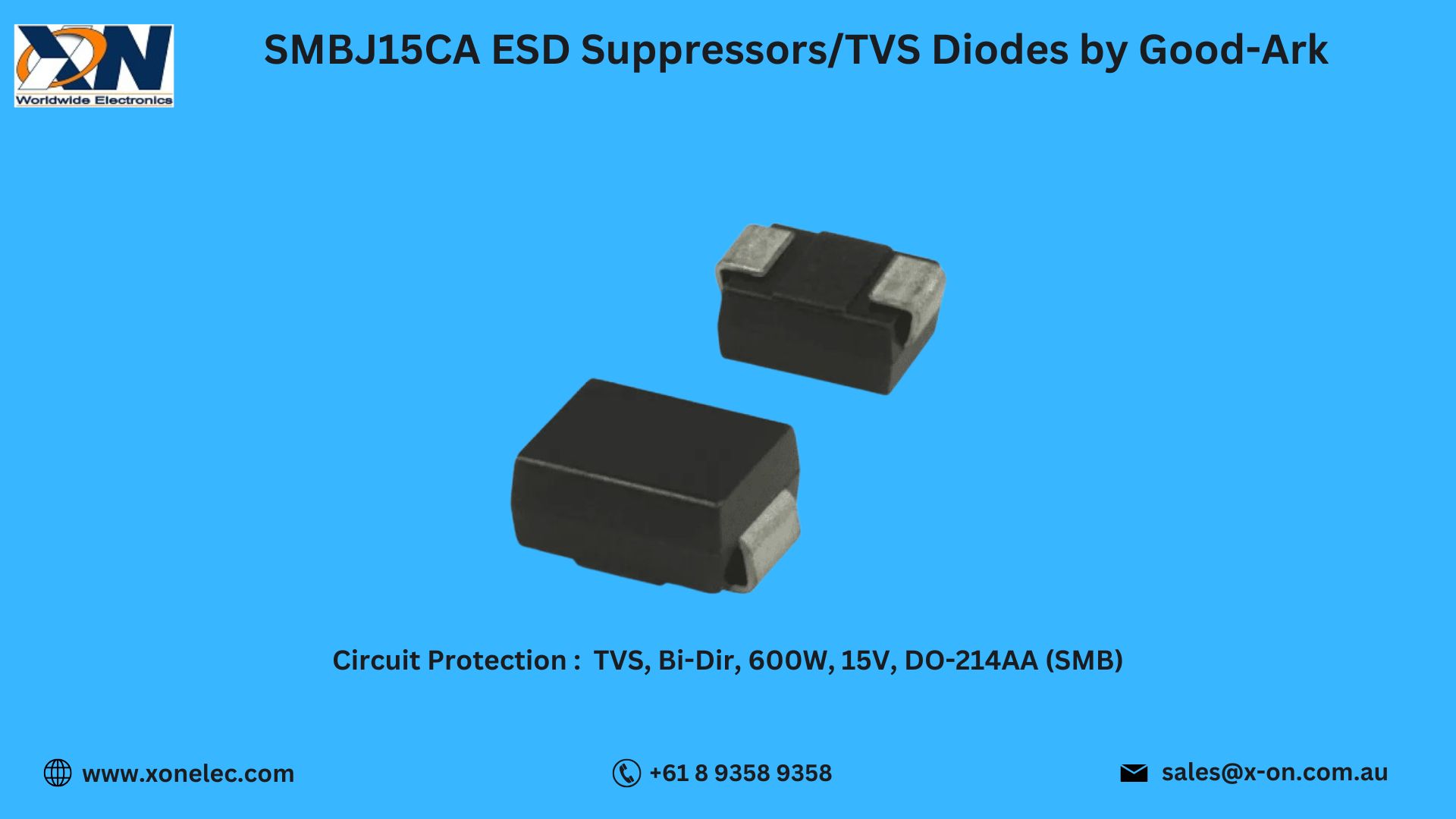

SMBJ15CA ESD Suppressors by Good-Ark – Reliable Circuit Protection for Electronics

The ESD Suppressors/TVS Diodes SMBJ15CA by Good-Ark are high-performance bidirectional TVS diodes designed to protect sensitive electronic components from electrostatic discharge (ESD) and transient voltage surges. With a peak pulse power of 600W and ultra-fast response, the SMBJ15CA is perfect for industrial, telecom, automotive, and consumer applications that require strong circuit protection.

This blog explains the technical specifications, key features, applications, wiring overview, and how to order globally from Xon Electronics, shipping to the USA, India, Australia, Europe, and other regions.

1. Technical Specifications of SMBJ15CA

• Manufacturer: Good-Ark

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

The SMBJ15CA ensures reliable surge handling and compact design for robust circuit protection.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power for superior surge absorption

• Bidirectional Protection suitable for AC and DC lines

• Ultra-Fast Response Time (<1 ps) for instant clamping

• Low Clamping Voltage to protect sensitive circuits

• Compact SMB Package ideal for PCB integration

• RoHS and Lead-Free Compliant

The SMBJ15CA ESD Suppressors/TVS Diodes deliver efficient and long-lasting circuit protection.

3. Applications of SMBJ15CA

The SMBJ15CA is ideal for:

• Industrial Automation and Control Systems

• Telecom and Networking Devices

• LED Drivers and Display Panels

• Automotive Electronics and Infotainment Systems

• Power Supplies and Embedded Boards

• Consumer Electronics

It offers strong circuit protection across multiple industries.

4. Wiring and Connection Overview

Typical wiring configuration for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

This layout ensures immediate clamping of voltage surges to protect devices.

5. Use Case Scenario: Surge Protection in Telecom Equipment

Scenario: A telecom company experienced frequent failures due to voltage spikes.

Problem: Existing diodes could not withstand repetitive surges.

Solution: Replacing them with SMBJ15CA by Good-Ark improved surge endurance and device reliability.

Result: Reduced failures, improved uptime, and lower maintenance costs.

6. Download Datasheet for SMBJ15CA

7. Why Buy from Xon Electronics?

Order SMBJ15CA ESD Suppressors/TVS Diodes by Good-Ark from Xon Electronics and enjoy:

? 100% Genuine Good-Ark Components
?? Worldwide Shipping – USA, India, Australia, Europe & more
?? Bulk Pricing for OEMs and Assemblers
?? Expert Technical Support
?? Secure and Hassle-Free Ordering

Your trusted global source for circuit protection components.

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What is SMBJ15CA used for?
It is a bidirectional TVS diode for surge and ESD suppression.

Q2. What is the power rating?
It can handle up to 600W peak pulse power.

Q3. Where is it used?
It is ideal for telecom, industrial, automotive, LED, and power supply applications needing circuit protection.

Q4. Is it RoHS compliant?
Yes, it is RoHS and lead-free certified.

Q5. Can I buy it globally?
Yes, Xon Electronics ships to USA, India, Australia, Europe, and more.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by Good-Ark offer fast clamping, robust surge handling, and a compact package. They are a perfect solution for reliable circuit protection in telecom, industrial, automotive, and consumer electronics. Available now at Xon Electronics, shipping worldwide to the USA, India, Australia, Europe, and beyond.
