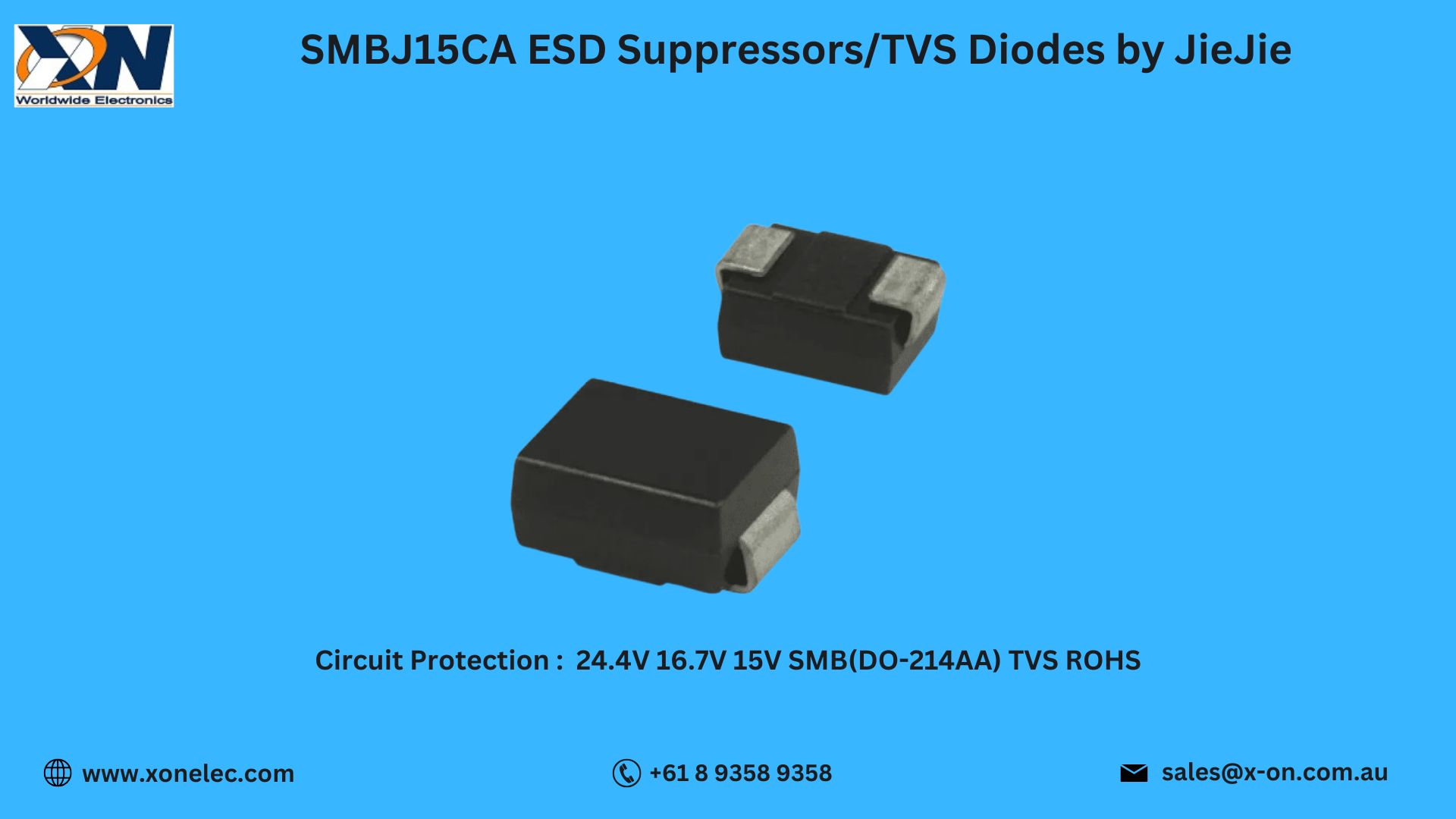

SMBJ15CA ESD Suppressors by JieJie – Reliable Circuit Protection for Electronics

The ESD Suppressors/TVS Diodes SMBJ15CA by JieJie are high-performance bidirectional TVS diodes that protect sensitive electronic devices from electrostatic discharge (ESD) and voltage transients. With a 600W peak pulse power rating and ultra-fast clamping response, the SMBJ15CA is an excellent solution for industrial, telecom, automotive, and consumer applications needing dependable circuit protection.

This blog covers the technical specifications, key features, applications, wiring overview, and purchasing options from Xon Electronics, shipping globally to the USA, India, Australia, Europe, and more.

1. Technical Specifications of SMBJ15CA

• Manufacturer: JieJie

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

The SMBJ15CA offers compact size and reliable surge handling, making it perfect for robust circuit protection.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power for high surge endurance

• Bidirectional Design for AC and DC applications

• Ultra-Fast Response Time (<1 ps) for instant clamping

• Low Clamping Voltage to protect sensitive electronics

• Compact SMB Package for space-saving PCB mounting

• RoHS and Lead-Free Compliant

The SMBJ15CA ESD Suppressors/TVS Diodes ensure strong and efficient circuit protection.

3. Applications of SMBJ15CA

The SMBJ15CA is commonly used in:

• Industrial Automation and Control Systems

• Telecom and Networking Equipment

• LED Drivers and Display Panels

• Automotive Electronics and Infotainment Devices

• Power Supplies and Embedded Systems

• Consumer Electronics

It is a trusted solution for effective circuit protection.

4. Wiring and Connection Overview

Typical wiring for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

This setup ensures instant surge clamping for device protection.

5. Use Case Scenario: Surge Protection in Power Electronics

Scenario: A power equipment manufacturer faced repeated failures due to transient surges.

Problem: Existing diodes lacked adequate surge handling capability.

Solution: Using SMBJ15CA by JieJie improved protection and system reliability.

Result: Reduced failures, improved uptime, and better product performance.

6. Download Datasheet for SMBJ15CA

7. Why Buy from Xon Electronics?

Buy SMBJ15CA ESD Suppressors/TVS Diodes by JieJie from Xon Electronics and enjoy:

• 100% Genuine JieJie Components
• Worldwide Shipping – USA, India, Australia, Europe & more
• Competitive Bulk Pricing for OEMs
• Expert Technical Support
• Secure & Hassle-Free Ordering

Your trusted source for circuit protection components globally.

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What is SMBJ15CA used for?
It is a bidirectional TVS diode for surge and ESD suppression.

Q2. What is its power rating?
It can handle up to 600W of peak pulse power.

Q3. Where can it be used?
It is ideal for telecom, industrial, automotive, LED, and power supply systems needing circuit protection.

Q4. Is it RoHS compliant?
Yes, it is fully RoHS and lead-free certified.

Q5. Can it be purchased globally?
Yes, Xon Electronics ships to USA, India, Australia, Europe, and more.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by JieJie provide fast clamping, high surge handling, and compact packaging. They are an excellent choice for circuit protection in industrial, telecom, automotive, and consumer electronics. Available now at Xon Electronics, shipping worldwide to the USA, India, Australia, Europe, and beyond.
