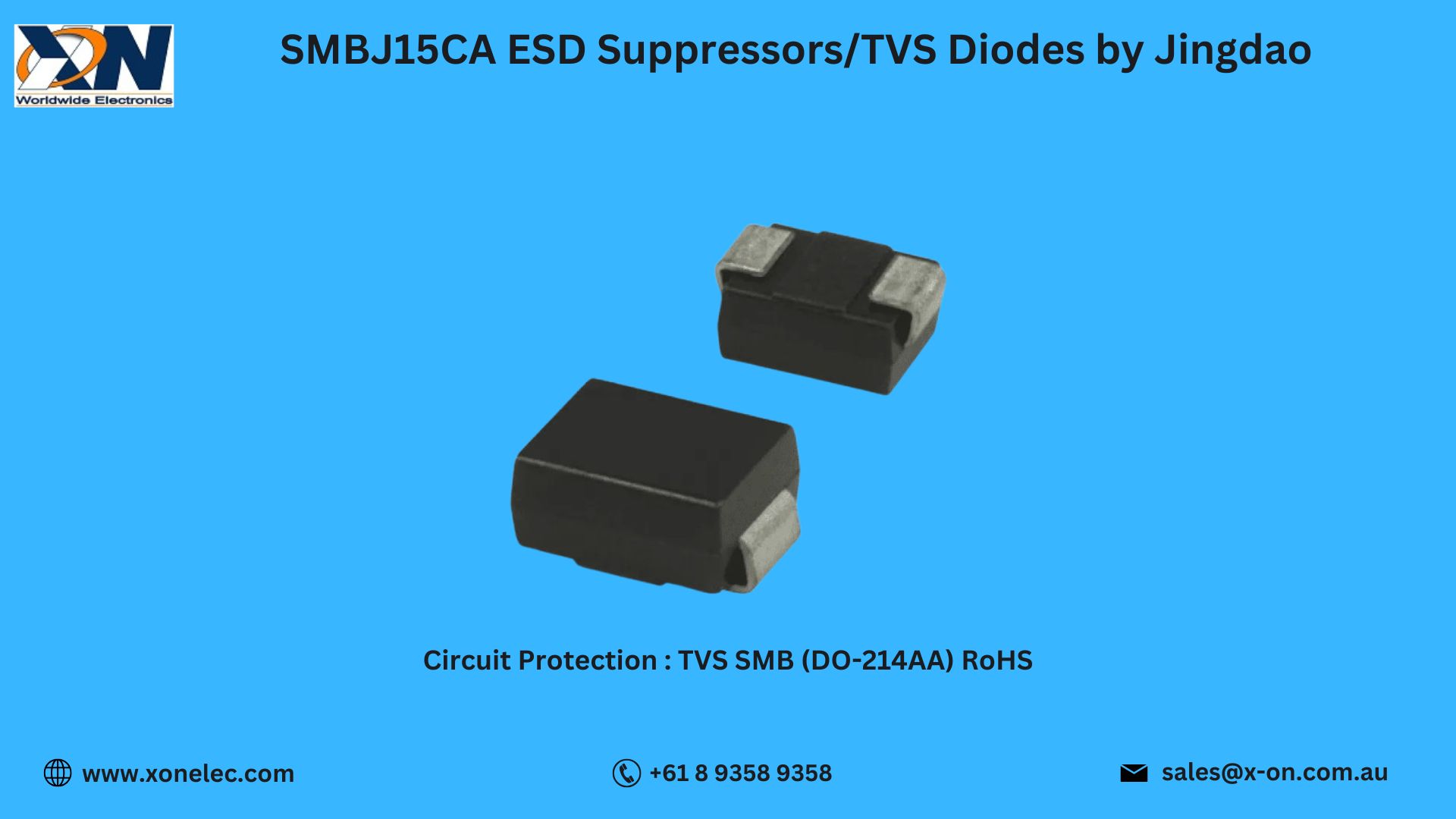

SMBJ15CA ESD Suppressors/TVS Diodes by Jingdao
The ESD Suppressors/TVS Diodes SMBJ15CA by Jingdao offer powerful and compact protection against transient voltage and electrostatic discharge (ESD). These TVS diodes are ideal for safeguarding sensitive components across various circuit designs, particularly where bidirectional protection is needed.
Technical Specifications of SMBJ15CA
-
Manufacturer: Jingdao
-
Part Number: SMBJ15CA
-
Stand-Off Voltage: 15V
-
Breakdown Voltage: 16.7V (Minimum)
-
Clamping Voltage: 24.4V (Typical)
-
Peak Pulse Power Dissipation: 600W
-
Polarity: Bidirectional
-
Package Type: DO-214AA (SMBJ)
-
Mounting Style: Surface Mount (SMD)
-
Operating Temperature: -55°C to +150°C
Key Features
-
High surge capability of 600W peak pulse power
-
Bidirectional configuration for AC/DC line protection
-
Compact SMD packaging compatible with modern PCB designs
-
Rapid response to ESD and transient surges
-
Fully compliant with RoHS and lead-free regulations
These features make the SMBJ15CA ESD Suppressors/TVS Diodes essential in today's demanding circuit protection environments.
Applications
-
USB and data communication ports
-
Power lines and DC power rails
-
Automotive and industrial electronics
-
Networking and telecom equipment
-
Consumer electronics
Designed for high-performance circuit protection, SMBJ15CA ESD Suppressors/TVS Diodes by Jingdao are trusted in both low- and high-voltage transient environments.
Wiring and Connection Overview
-
Use across voltage-sensitive nodes
-
Place close to the source of transient energy
-
Compatible with automated SMT processes
-
Supports bidirectional or unidirectional protection circuits
Use Case: ESD Protection in Network Routers
Challenge: A networking equipment maker faced repeated failures in Ethernet interfaces due to voltage surges.
Solution: Integrating SMBJ15CA ESD Suppressors/TVS Diodes by Jingdao into the I/O lines.
Result: Reduced ESD-related failures, improved product stability, and successful regulatory compliance.
Download Datasheet
Download the SMBJ15CA Datasheet to explore complete electrical, thermal, and mechanical specifications.
