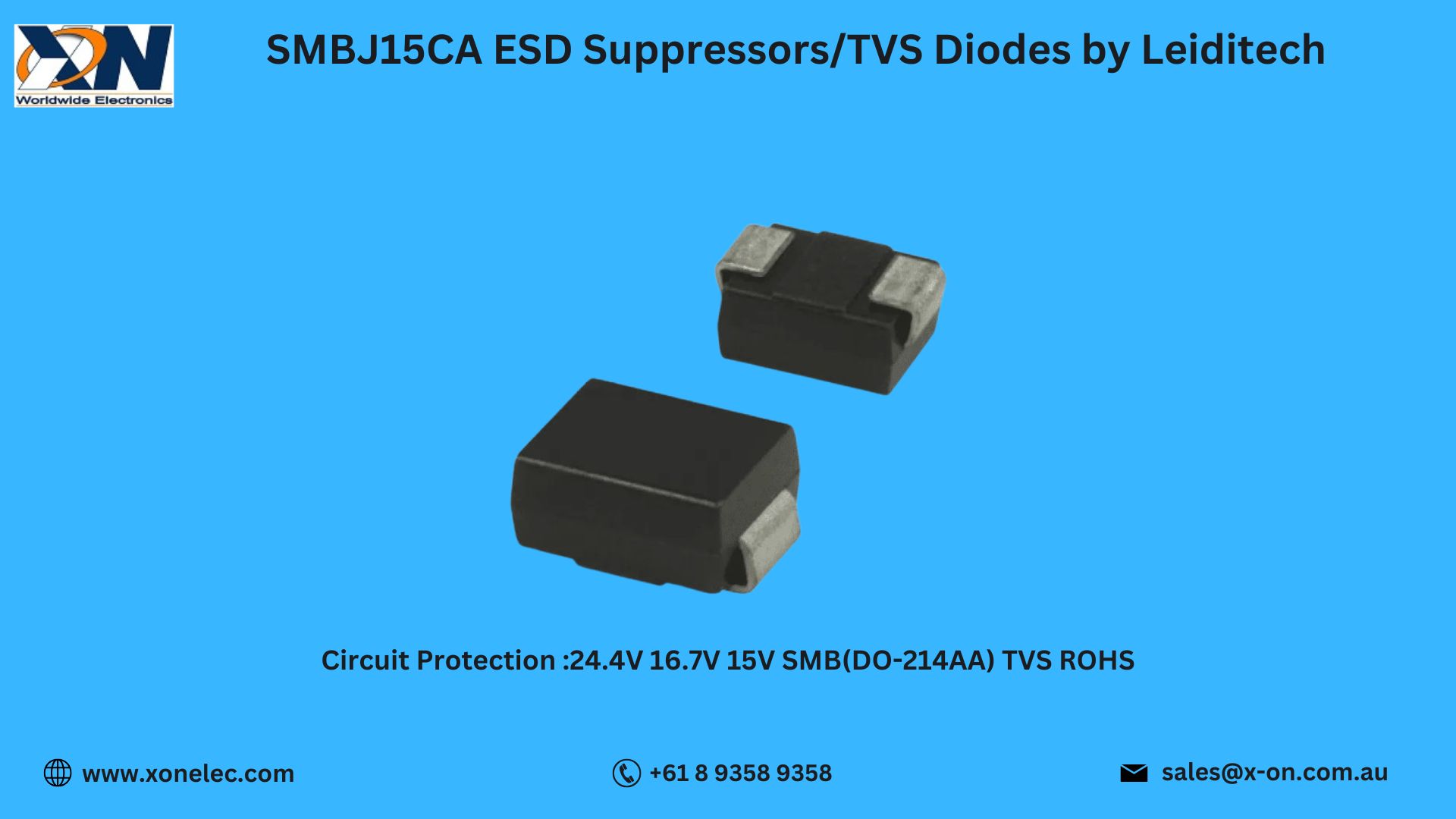

SMBJ15CA ESD Suppressors by Leiditech – Reliable Circuit Protection for Electronics

The ESD Suppressors/TVS Diodes SMBJ15CA by Leiditech are high-performance bidirectional TVS diodes designed to protect sensitive electronics from electrostatic discharge (ESD) and transient voltage surges. With a 600W peak pulse power rating and ultra-fast clamping response, the SMBJ15CA is ideal for industrial, telecom, automotive, and consumer devices requiring dependable circuit protection.

This blog provides details about technical specifications, key features, applications, wiring overview, and ordering information from Xon Electronics, which ships globally to the USA, India, Australia, Europe, and beyond.

1. Technical Specifications of SMBJ15CA

• Manufacturer: Leiditech

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

The SMBJ15CA offers robust surge protection in a compact package, ensuring efficient circuit protection.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power for strong surge handling

• Bidirectional Protection for both AC and DC circuits

• Ultra-Fast Response Time (<1 ps) for instant clamping

• Low Clamping Voltage to safeguard sensitive components

• Compact SMB Package for easy PCB integration

• RoHS and Lead-Free Compliant

The SMBJ15CA ESD Suppressors/TVS Diodes are perfect for reliable and efficient circuit protection.

3. Applications of SMBJ15CA

The SMBJ15CA is suitable for:

• Industrial Automation Systems

• Telecom and Networking Equipment

• LED Drivers and Display Panels

• Automotive Electronics and Infotainment Devices

• Power Supplies and Embedded Systems

• Consumer Electronics

It provides robust circuit protection across multiple industries.

4. Wiring and Connection Overview

Typical wiring layout for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

This configuration ensures instant voltage clamping to protect electronic components.

5. Use Case Scenario: Surge Protection in Industrial Systems

Scenario: A manufacturer of industrial controllers experienced repeated failures due to voltage spikes.

Problem: Existing diodes lacked sufficient surge handling capacity.

Solution: Using SMBJ15CA by Leiditech improved system reliability and reduced failures.

Result: Increased uptime, fewer maintenance issues, and better customer satisfaction.

6. Download Datasheet for SMBJ15CA

Download SMBJ15CA Datasheet from Xon Electronics

7. Why Buy from Xon Electronics?

Order SMBJ15CA ESD Suppressors/TVS Diodes by Leiditech from Xon Electronics and enjoy:

• 100% Genuine Leiditech Components
• Worldwide Shipping – USA, India, Australia, Europe & more
• Bulk Pricing for OEMs and Assemblers
• Expert Technical Support
• Secure and Hassle-Free Ordering

Your trusted partner for circuit protection components globally.

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What is SMBJ15CA used for?
It is a bidirectional TVS diode for surge and ESD suppression.

Q2. What is the power rating?
It can handle up to 600W peak pulse power.

Q3. Where can it be used?
It is ideal for telecom, industrial, LED, automotive, and power supply applications requiring circuit protection.

Q4. Is it RoHS compliant?
Yes, it is fully RoHS and lead-free compliant.

Q5. Can it be purchased globally?
Yes, Xon Electronics ships to USA, India, Australia, Europe, and other countries.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by Leiditech deliver high reliability, fast clamping response, and a compact design. They are ideal for robust circuit protection in industrial, telecom, automotive, and consumer electronics. Available now at Xon Electronics, with global shipping to the USA, India, Australia, Europe, and more.
