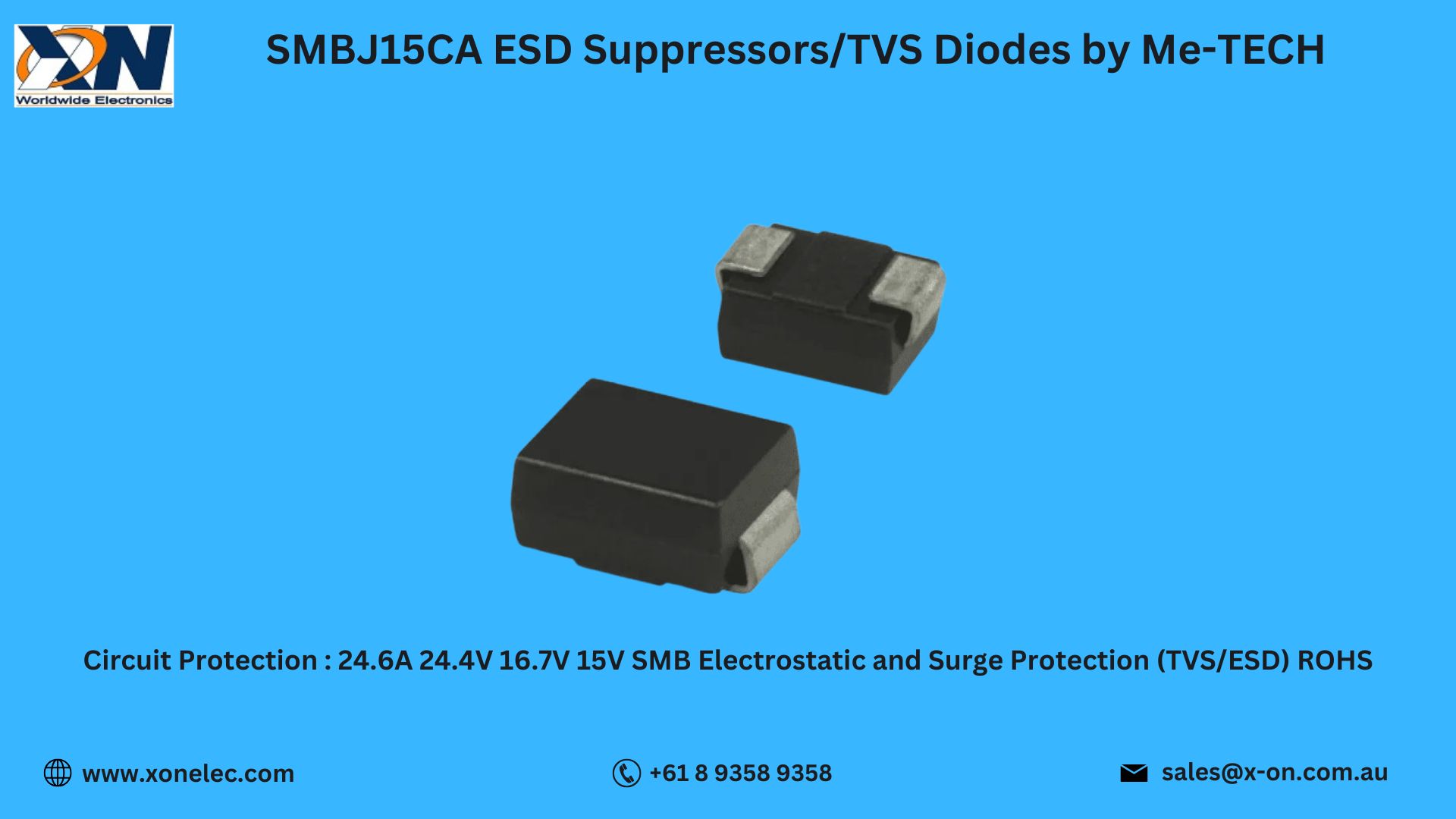

SMBJ15CA ESD Suppressors by Me-TECH – Reliable Circuit Protection for Electronics

The ESD Suppressors/TVS Diodes SMBJ15CA by Me-TECH are high-quality bidirectional TVS diodes designed to protect sensitive electronic devices from electrostatic discharge (ESD) and transient voltage surges. With a peak pulse power rating of 600W and ultra-fast response time, the SMBJ15CA is ideal for applications that require dependable circuit protection in industrial, telecom, automotive, and consumer electronics.

This blog provides details about technical specifications, key features, applications, wiring setup, and how to order worldwide from Xon Electronics, shipping to the USA, India, Australia, Europe, and other countries.

1. Technical Specifications of SMBJ15CA

• Manufacturer: Me-TECH

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

The SMBJ15CA combines a compact design with high performance for robust circuit protection.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power for high-energy surge absorption

• Bidirectional Design for AC and DC applications

• Ultra-Fast Response Time (<1 ps) for instant protection

• Low Clamping Voltage to safeguard sensitive components

• Compact SMB Package for space-efficient designs

• RoHS and Lead-Free Compliant

The SMBJ15CA ESD Suppressors/TVS Diodes ensure effective and reliable circuit protection.

3. Applications of SMBJ15CA

The SMBJ15CA is used in:

• Industrial Automation Systems

• Telecom and Networking Equipment

• LED Drivers and Display Panels

• Automotive Electronics and Infotainment Systems

• Power Supplies and Embedded Boards

• Consumer Electronics

It provides dependable circuit protection for various applications.

4. Wiring and Connection Overview

Typical wiring setup for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

This configuration allows for immediate clamping of voltage surges to protect electronic circuits.

5. Use Case Scenario: Surge Protection in Telecom Devices

Scenario: A telecom equipment manufacturer experienced failures due to transient surges.

Problem: Their existing protection components were unable to handle repeated high-energy surges.

Solution: Replacing them with SMBJ15CA by Me-TECH improved surge endurance and reliability.

Result: Reduced failures, improved product performance, and increased customer satisfaction.

6. Download Datasheet for SMBJ15CA

Download SMBJ15CA Datasheet from Xon Electronics

7. Why Buy from Xon Electronics?

Order SMBJ15CA ESD Suppressors/TVS Diodes by Me-TECH from Xon Electronics and enjoy:

• 100% Genuine Me-TECH Components
• Worldwide Shipping – USA, India, Australia, Europe & more
• Bulk Pricing for OEMs and Assemblers
• Expert Technical Support
• Secure and Hassle-Free Ordering

Your trusted global partner for circuit protection components.

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What is SMBJ15CA used for?
It is a bidirectional TVS diode for surge and ESD suppression.

Q2. What is its power rating?
It can handle up to 600W of peak pulse power.

Q3. Where can it be used?
It is ideal for telecom, industrial, automotive, LED, and power supply applications requiring circuit protection.

Q4. Is it RoHS compliant?
Yes, it is fully RoHS and lead-free compliant.

Q5. Can it be purchased globally?
Yes, Xon Electronics ships to USA, India, Australia, Europe, and more.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by Me-TECH deliver high-performance surge absorption, ultra-fast clamping, and a compact design. Perfect for robust circuit protection, they are available at Xon Electronics, shipping globally to the USA, India, Australia, Europe, and other countries.
