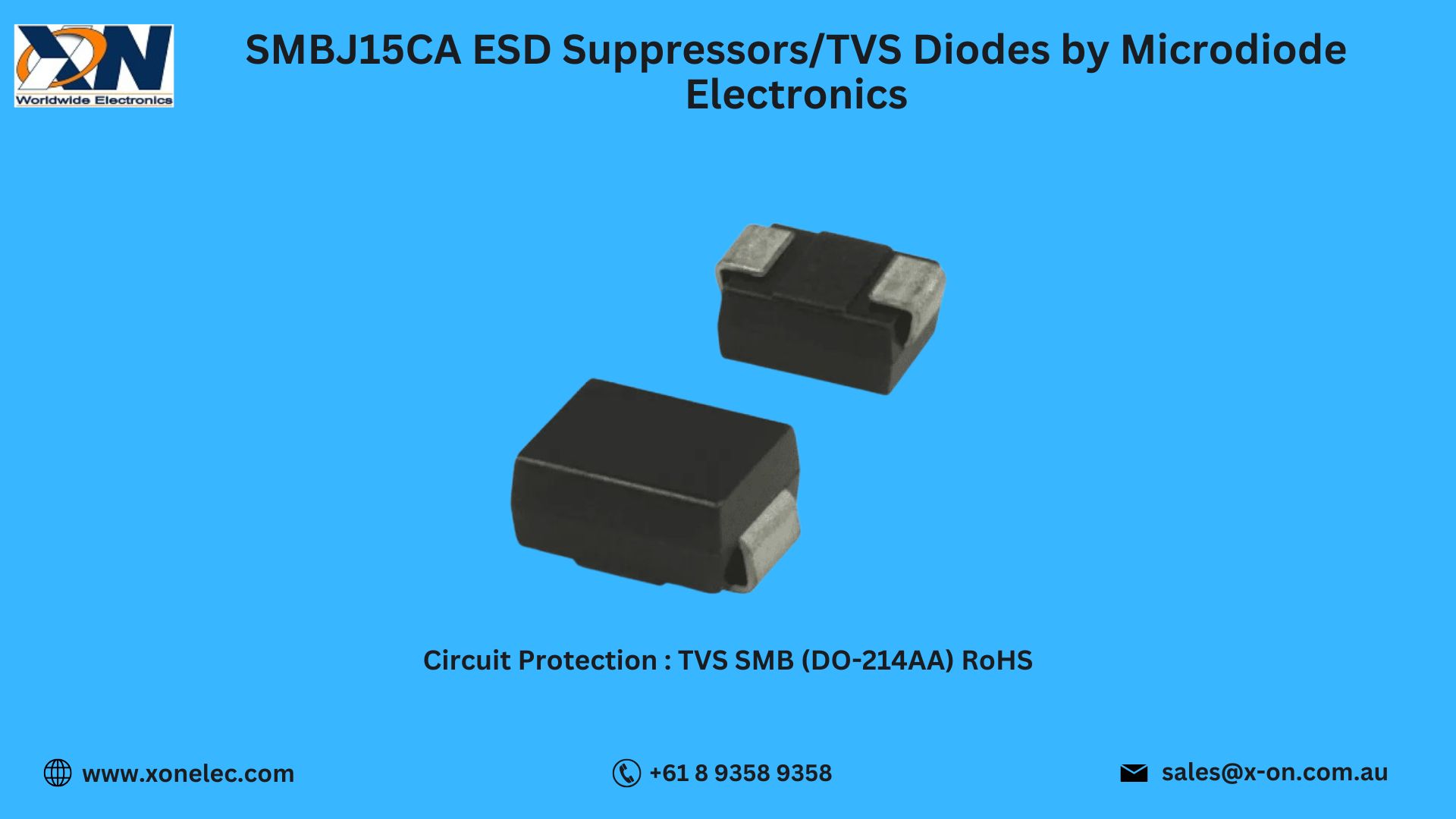

SMBJ15CA ESD Suppressors by Microdiode – Reliable Circuit Protection for Electronics

The ESD Suppressors/TVS Diodes SMBJ15CA by Microdiode Electronics are robust, bidirectional TVS diodes engineered to protect sensitive electronics from electrostatic discharge (ESD) and transient voltage spikes. Featuring a compact SMB package and high surge capability, the SMBJ15CA ensures reliable and efficient circuit protection for industrial, telecom, and consumer devices.

This blog covers the technical specifications, key features, applications, wiring details, real-world usage, and why you should buy from Xon Electronics, which ships worldwide to USA, India, Australia, Europe, and other regions.

1. Technical Specifications of SMBJ15CA

• Manufacturer: Microdiode Electronics

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

With fast response and high peak power handling, this diode is a preferred choice for modern circuit protection applications.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power for superior surge absorption

• Bidirectional Protection suitable for both AC and DC lines

• Ultra-fast Response Time (<1 ps) to clamp surges instantly

• Low Clamping Voltage protects downstream components

• Compact SMB Package for space-constrained PCBs

• RoHS Compliant and Lead-Free

The SMBJ15CA ESD Suppressors/TVS Diodes are trusted for high-performance circuit protection across industries.

3. Applications of SMBJ15CA

The SMBJ15CA can be used in:

• Industrial Automation Systems

• Network Equipment and Telecom Hardware

• LED Displays and Smart Lighting

• Power Supplies and Embedded Systems

• Automotive Electronics and Control Modules

• Consumer Devices and Smart Appliances

Its robust design ensures effective circuit protection in sensitive electronics.

4. Wiring and Connection Overview

Typical connection layout for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

Mounted between the signal line and ground, this diode clamps surges instantly, ensuring reliable ESD suppression.

5. Use Case Scenario: Surge Protection in LED Drivers

Scenario: A manufacturer of LED drivers experienced failures during power surges.

Problem: Their existing protection solution failed under high-energy transients.

Solution: Replacing with SMBJ15CA by Microdiode Electronics improved surge endurance and overall reliability.

Result: Reduced failures, improved customer satisfaction, and lower maintenance costs.

6. Download Datasheet for SMBJ15CA

Get complete details on electrical characteristics and compliance:

Download SMBJ15CA Datasheet from Xon Electronics

Includes clamping characteristics, ratings, and package details.

7. Why Buy from Xon Electronics?

When you order SMBJ15CA ESD Suppressors/TVS Diodes by Microdiode Electronics from Xon Electronics, you get:

• 100% Authentic Components
• Global Shipping to USA, India, Australia, Europe & more
• Bulk Pricing for OEMs and Assemblers
• Expert Technical Support
• Secure and Fast Online Ordering

Your one-stop destination for circuit protection components worldwide!

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What type of diode is SMBJ15CA?
A bidirectional TVS diode for surge and ESD suppression.

Q2. What is its power handling capability?
It supports 600W peak pulse power.

Q3. What applications is it suitable for?
Industrial, telecom, automotive, and LED systems needing circuit protection.

Q4. Is it RoHS compliant?
Yes, it meets RoHS and lead-free compliance.

Q5. Where can I buy it globally?
Order now at Xon Electronics with fast shipping to USA, India, Australia, Europe, and more.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by Microdiode Electronics deliver powerful surge absorption, ultra-fast response, and compact design. Perfect for circuit protection, these diodes ensure reliability across a wide range of applications. Available at Xon Electronics, with worldwide delivery to the USA, India, Australia, Europe, and beyond.
