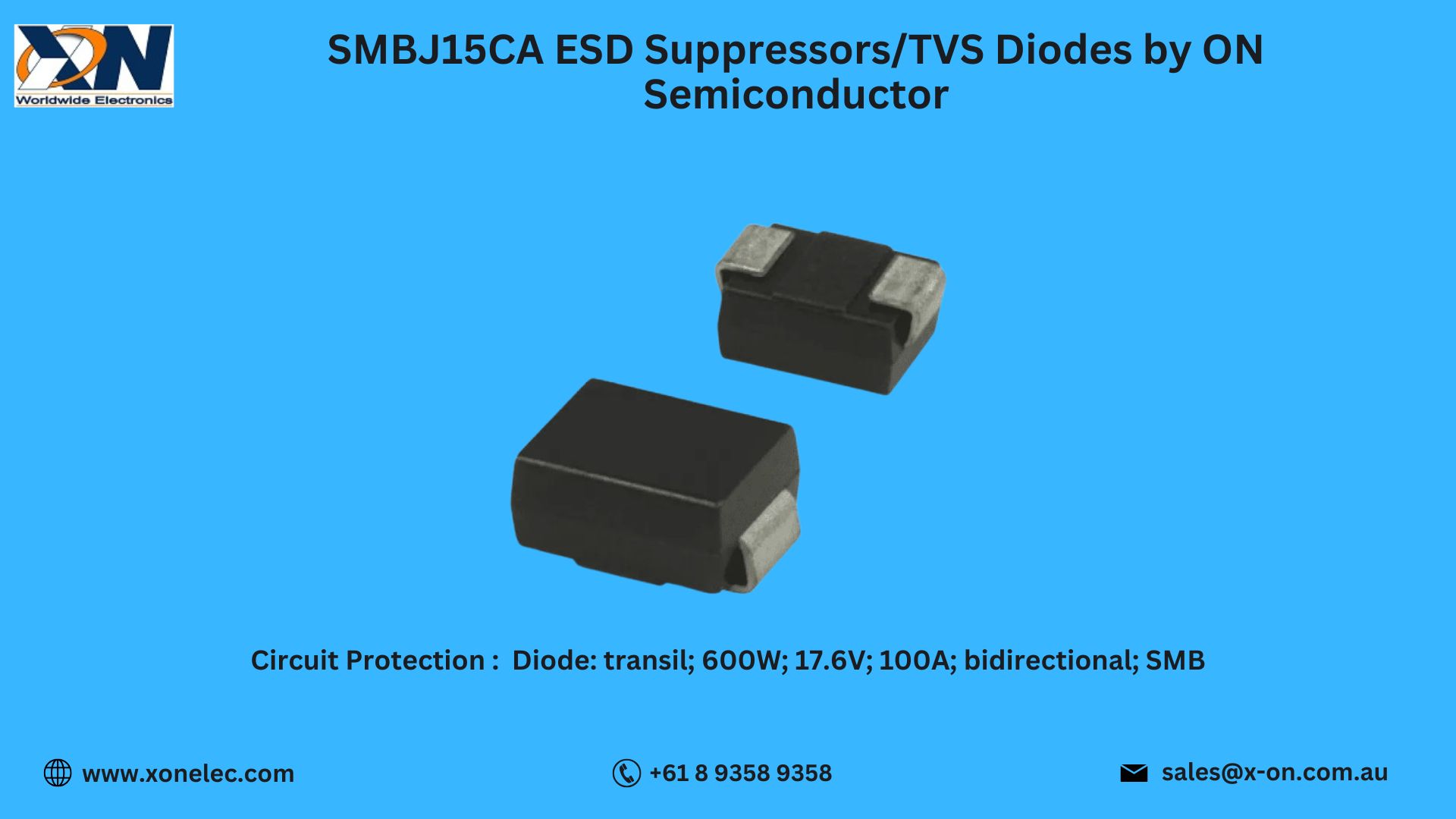

SMBJ15CA ESD Suppressors by ON Semiconductor – Reliable Circuit Protection

The ESD Suppressors/TVS Diodes SMBJ15CA by ON Semiconductor are high-quality bidirectional TVS diodes that protect sensitive electronics from electrostatic discharge (ESD) and transient voltage surges. With a 600W peak pulse power rating and ultra-fast clamping response, the SMBJ15CA is ideal for telecom, industrial, automotive, and consumer electronics requiring dependable circuit protection.

This blog provides the technical specifications, key features, applications, wiring details, and why you should buy from Xon Electronics, shipping to the USA, India, Australia, Europe, and worldwide.

1. Technical Specifications of SMBJ15CA

• Manufacturer: ON Semiconductor

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

The SMBJ15CA is compact, reliable, and provides robust circuit protection.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power for superior surge handling

• Bidirectional Design for AC and DC protection

• Ultra-Fast Response Time (<1 ps) for immediate clamping

• Low Clamping Voltage to protect sensitive electronics

• Compact SMB Package for PCB efficiency

• RoHS and Lead-Free Compliant

The SMBJ15CA ESD Suppressors/TVS Diodes provide dependable circuit protection for various applications.

3. Applications of SMBJ15CA

The SMBJ15CA is widely used in:

• Industrial Automation and Control Equipment

• Telecom and Networking Devices

• LED Drivers and Display Modules

• Automotive Electronics and Infotainment Systems

• Power Supplies and Embedded Boards

• Consumer Electronics

It is a reliable solution for circuit protection in multiple industries.

4. Wiring and Connection Overview

Typical wiring for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

This ensures instant clamping of voltage surges to protect devices.

5. Use Case Scenario: Surge Protection in Telecom Devices

Scenario: A telecom manufacturer experienced frequent failures due to power surges.

Problem: Existing diodes failed to provide consistent protection.

Solution: Replacing them with SMBJ15CA by ON Semiconductor enhanced system reliability.

Result: Reduced failures, improved performance, and lower maintenance costs.

6. Download Datasheet for SMBJ15CA

Download SMBJ15CA Datasheet from Xon Electronics

7. Why Buy from Xon Electronics?

Order SMBJ15CA ESD Suppressors/TVS Diodes by ON Semiconductor from Xon Electronics and get:

• 100% Genuine ON Semiconductor Components
• Worldwide Shipping – USA, India, Australia, Europe & more
• Bulk Pricing for OEMs and Assemblers
• Expert Technical Support
• Secure and Hassle-Free Ordering

Your trusted source for circuit protection components globally.

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What is SMBJ15CA used for?
It is a bidirectional TVS diode for surge and ESD suppression.

Q2. What is its power rating?
It can handle up to 600W of peak pulse power.

Q3. Where can it be used?
It is ideal for telecom, industrial, automotive, LED, and power supply applications requiring circuit protection.

Q4. Is it RoHS compliant?
Yes, it is fully RoHS and lead-free compliant.

Q5. Can it be purchased globally?
Yes, Xon Electronics ships to USA, India, Australia, Europe, and more.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by ON Semiconductor deliver reliable surge protection, fast clamping response, and compact packaging. Perfect for telecom, industrial, automotive, and consumer electronics, they are available now at Xon Electronics, shipping worldwide to the USA, India, Australia, Europe, and beyond.
