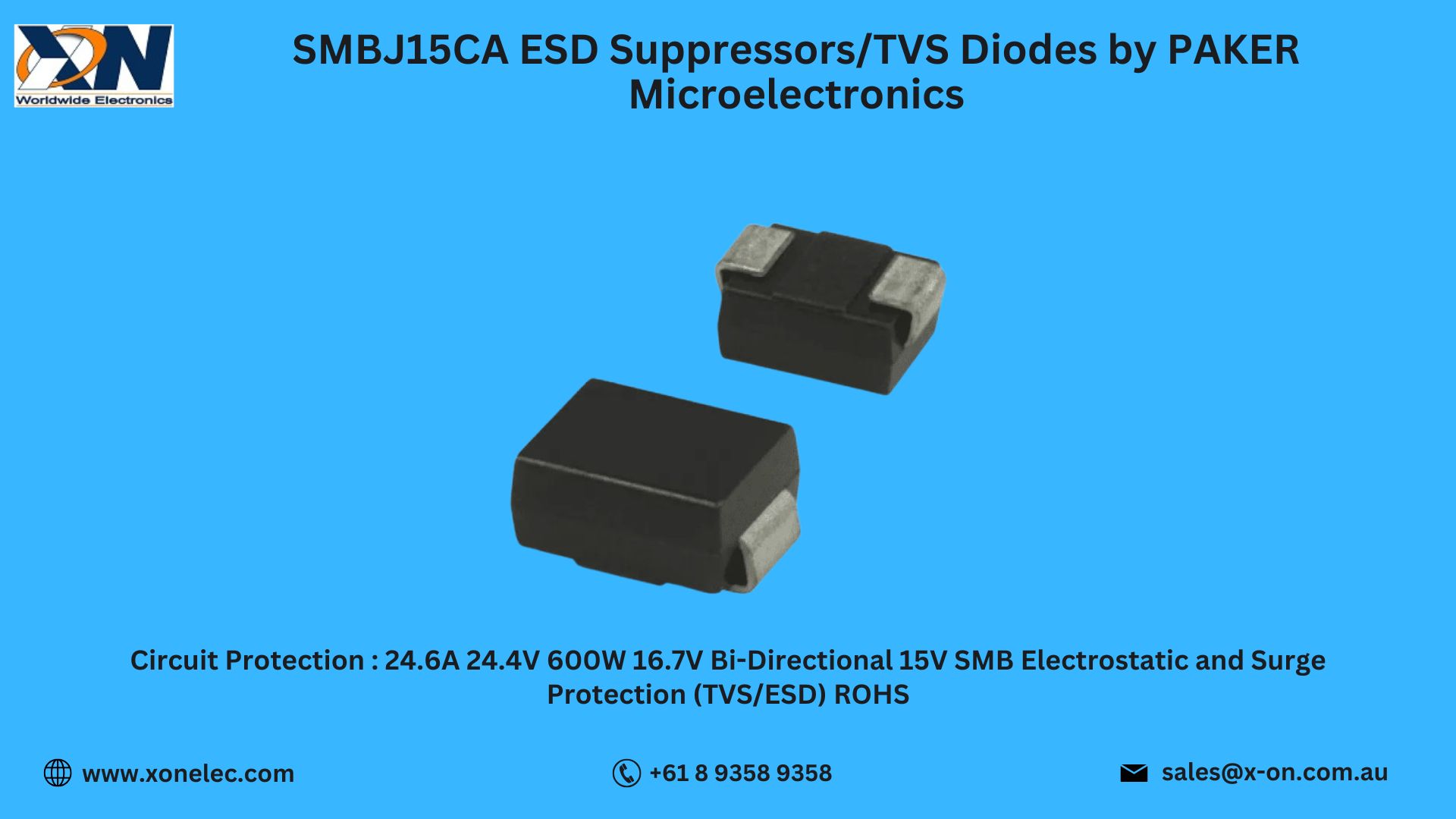

SMBJ15CA ESD Suppressors/TVS Diodes by PAKER Microelectronics
The ESD Suppressors/TVS Diodes SMBJ15CA by PAKER Microelectronics are engineered to provide robust circuit protection against high-voltage transients such as electrostatic discharge (ESD), EFT, and lightning surges. These ESD Suppressors/TVS Diodes are ideal for a wide range of electronics applications, including consumer devices, telecom systems, and industrial equipment.
Technical Specifications of SMBJ15CA
-
Manufacturer: PAKER Microelectronics
-
Product Code: SMBJ15CA
-
Category: ESD Suppressors/TVS Diodes
-
Reverse Standoff Voltage (VR): 15V
-
Breakdown Voltage: 16.7V Min
-
Clamping Voltage: 24.4V Max
-
Peak Pulse Power Dissipation: 600W (10/1000µs waveform)
-
Polarity: Bidirectional
-
Package: DO-214AA (SMB)
-
Mounting: Surface Mount (SMD)
-
RoHS Compliant: Yes
Key Features
-
600W peak pulse power for high-level surge protection
-
Bidirectional polarity for symmetrical operation
-
Low clamping voltage for superior protection
-
Compact SMB package for space-saving PCB design
-
Surface mountable TVS Diode ideal for automated assembly
Applications
-
Circuit Protection for communication ports (USB, RS-232, RS-485)
-
Power line protection in telecom base stations
-
Industrial controllers and PLCs
-
Consumer electronics including TVs and gaming consoles
-
Medical electronics and instrumentation
In each of these applications, ESD Suppressors/TVS Diodes play a crucial role in ensuring longevity and functionality.
Wiring and Connection Overview
-
Two-pin SMD connection for rapid integration
-
Connect across data or power lines to ground
-
No additional components required
-
Easily integrates into multilayer PCB designs
Use Case Example
A European telecom provider implemented SMBJ15CA ESD Suppressors/TVS Diodes by PAKER Microelectronics into their outdoor communication units. The units showed significant improvement in ESD resilience, reducing equipment failure during lightning storms.
Datasheet Download
Download SMBJ15CA Datasheet by PAKER Microelectronics
Explore electrical characteristics, layout dimensions, and performance curves.
