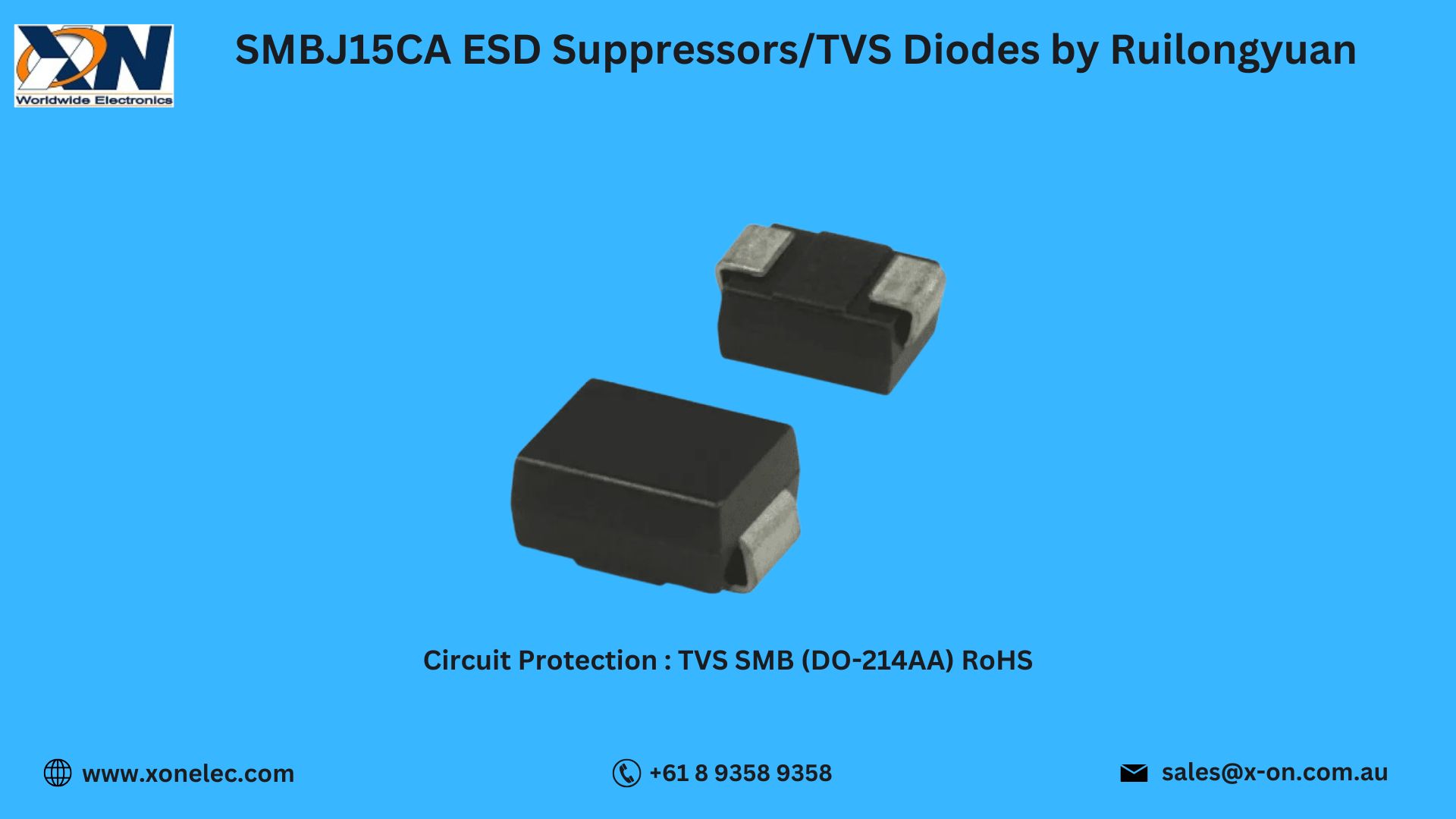

SMBJ15CA ESD Suppressors by Ruilongyuan – Reliable Circuit Protection Solution

The ESD Suppressors/TVS Diodes SMBJ15CA by Ruilongyuan are high-performance bidirectional diodes that protect sensitive electronics from electrostatic discharge (ESD) and transient voltage surges. With a 600W peak pulse power rating and ultra-fast response time, the SMBJ15CA is an excellent choice for industrial, telecom, automotive, and consumer applications requiring strong circuit protection.

This blog provides details about the technical specifications, key features, applications, wiring overview, real-world use case, and ordering options from Xon Electronics, shipping globally to the USA, India, Australia, Europe, and other countries.

1. Technical Specifications of SMBJ15CA

• Manufacturer: Ruilongyuan

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

The SMBJ15CA is compact, efficient, and ideal for long-lasting circuit protection in modern electronics.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power for robust surge absorption

• Bidirectional Design for AC and DC line protection

• Ultra-Fast Response Time (<1 ps) for instant clamping

• Low Clamping Voltage safeguards sensitive devices

• Compact SMB Package for easy PCB mounting

• RoHS and Lead-Free Compliant

The SMBJ15CA ESD Suppressors/TVS Diodes are a trusted solution for effective circuit protection.

3. Applications of SMBJ15CA

The SMBJ15CA is widely used in:

• Industrial Control and Automation Equipment

• Telecom and Networking Devices

• LED Drivers and Display Boards

• Power Supplies and Embedded Electronics

• Automotive Control Systems

• Consumer Electronics

It ensures high-quality circuit protection across multiple sectors.

4. Wiring and Connection Overview

Typical wiring for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

This simple configuration provides instant clamping to protect sensitive circuits.

5. Use Case Scenario: Surge Protection in Industrial Systems

Scenario: An industrial control manufacturer faced frequent component failures due to surge events.

Problem: Existing diodes failed under repeated high-energy transients.

Solution: Replacing them with SMBJ15CA by Ruilongyuan enhanced surge protection and long-term reliability.

Result: Reduced failures, better uptime, and improved customer satisfaction.

6. Download Datasheet for SMBJ15CA

Get the complete specifications and compliance details here:

Download SMBJ15CA Datasheet from Xon Electronics

7. Why Buy from Xon Electronics?

Buy SMBJ15CA ESD Suppressors/TVS Diodes by Ruilongyuan from Xon Electronics and get:

• 100% Genuine Components
• Worldwide Shipping – USA, India, Australia, Europe & more
• Bulk Pricing for OEMs and Assemblers
• Technical Support for Integration
• Secure and Hassle-Free Ordering

Your trusted source for circuit protection components globally.

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What type of device is SMBJ15CA?
It is a bidirectional TVS diode for surge and ESD suppression.

Q2. What is its power rating?
It can handle up to 600W peak pulse power.

Q3. Where can it be used?
It is ideal for telecom, industrial, automotive, LED drivers, and power supplies requiring circuit protection.

Q4. Is it RoHS compliant?
Yes, it is fully RoHS and lead-free certified.

Q5. Can I purchase it globally?
Yes, Xon Electronics ships worldwide to the USA, India, Australia, Europe, and other regions.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by Ruilongyuan are compact, fast-acting, and durable components that provide reliable circuit protection. They are perfect for a variety of industrial, telecom, and consumer applications. Available now at Xon Electronics, shipping globally to the USA, India, Australia, Europe, and beyond.
