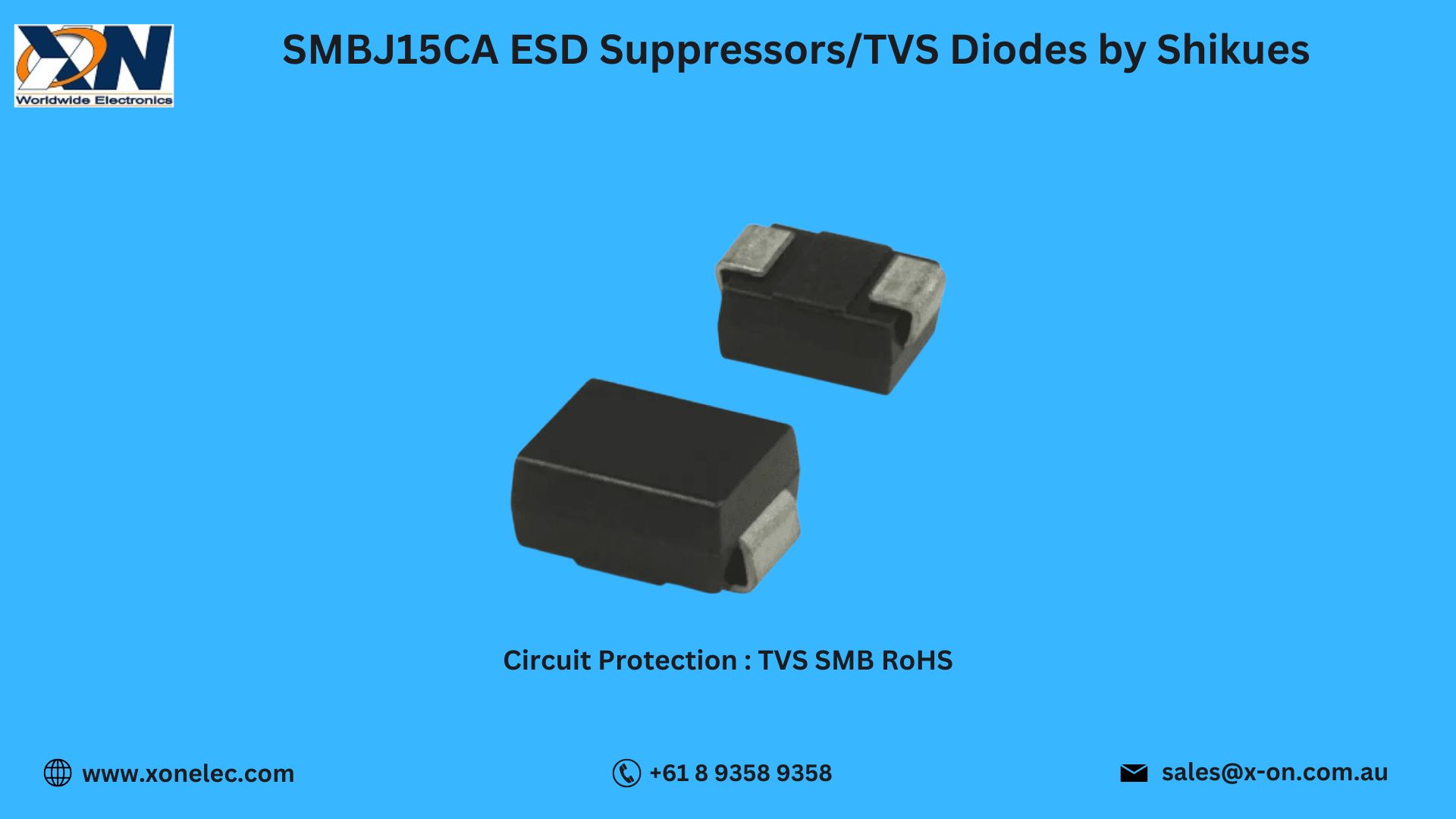

SMBJ15CA ESD Suppressors/TVS Diodes by Shikues
The ESD Suppressors/TVS Diodes SMBJ15CA by Shikues are high-performance transient voltage suppression devices designed to protect sensitive electronic circuits from electrostatic discharge (ESD), lightning, and other transient voltage events. With robust power handling and a compact form factor, they are ideal for modern electronic designs requiring dependable circuit protection.
Technical Specifications of SMBJ15CA
-
Manufacturer: Shikues
-
Part Number: SMBJ15CA
-
Category: ESD Suppressors/TVS Diodes
-
Peak Pulse Power (10/1000µs): 600W
-
Standoff Voltage (VR): 15V
-
Breakdown Voltage: 16.7V
-
Clamping Voltage: 24.4V
-
Polarity: Bidirectional
-
Mounting Type: Surface Mount (SMB Package)
-
Compliance: RoHS
Key Features
-
High surge capability up to 600W
-
Bidirectional polarity for symmetrical protection
-
Low clamping voltage ensures sensitive component safety
-
Compact SMB package for efficient PCB layout
-
Excellent choice for high-speed data and power line protection
Applications
-
Circuit Protection in telecom and industrial equipment
-
Safeguarding USB, HDMI, and other data interfaces
-
Automotive electronic modules
-
Consumer electronics and home automation systems
-
Power line protection in harsh environments
These ESD Suppressors/TVS Diodes are essential for safeguarding devices against transient voltage spikes, ensuring consistent operation.
Wiring and Connection Overview
-
Two-terminal SMD device
-
Mounted across data or power lines to suppress surges
-
Compatible with reflow and wave soldering processes
-
No external components needed for operation
Use Case Example
A manufacturer in Europe integrated the SMBJ15CA ESD Suppressors/TVS Diodes by Shikues into their industrial automation controllers. As a result, they experienced reduced ESD-related failures, leading to better uptime and lower maintenance costs.
Datasheet Download
Download SMBJ15CA Datasheet by Shikues
Find complete technical parameters, dimensions, and thermal characteristics.
Why Buy from X-ON Electronics?
-
Global delivery to USA, India, Australia, Europe, and more
-
100% authentic components with manufacturer warranty
-
Trusted by engineers, OEMs, and design houses
-
Cost-effective pricing for bulk and project needs
FAQs – SMBJ15CA by Shikues
Q1: What is the main use of SMBJ15CA TVS Diodes?
They protect circuits from ESD, EFT, and other voltage transients.
Q2: Is SMBJ15CA suitable for bidirectional protection?
Yes, this model provides bidirectional suppression.
Q3: Can it be used in automotive applications?
Yes, it's suitable for automotive modules and power lines.
Q4: What’s the package type of this diode?
SMB (DO-214AA), ideal for compact PCB designs.
Conclusion
The SMBJ15CA ESD Suppressors/TVS Diodes by Shikues are an excellent choice for engineers seeking effective circuit protection in space-constrained, high-performance applications. Their compact design, bidirectional functionality, and high surge capacity make them a must-have for telecom, automotive, and consumer electronics sectors.
