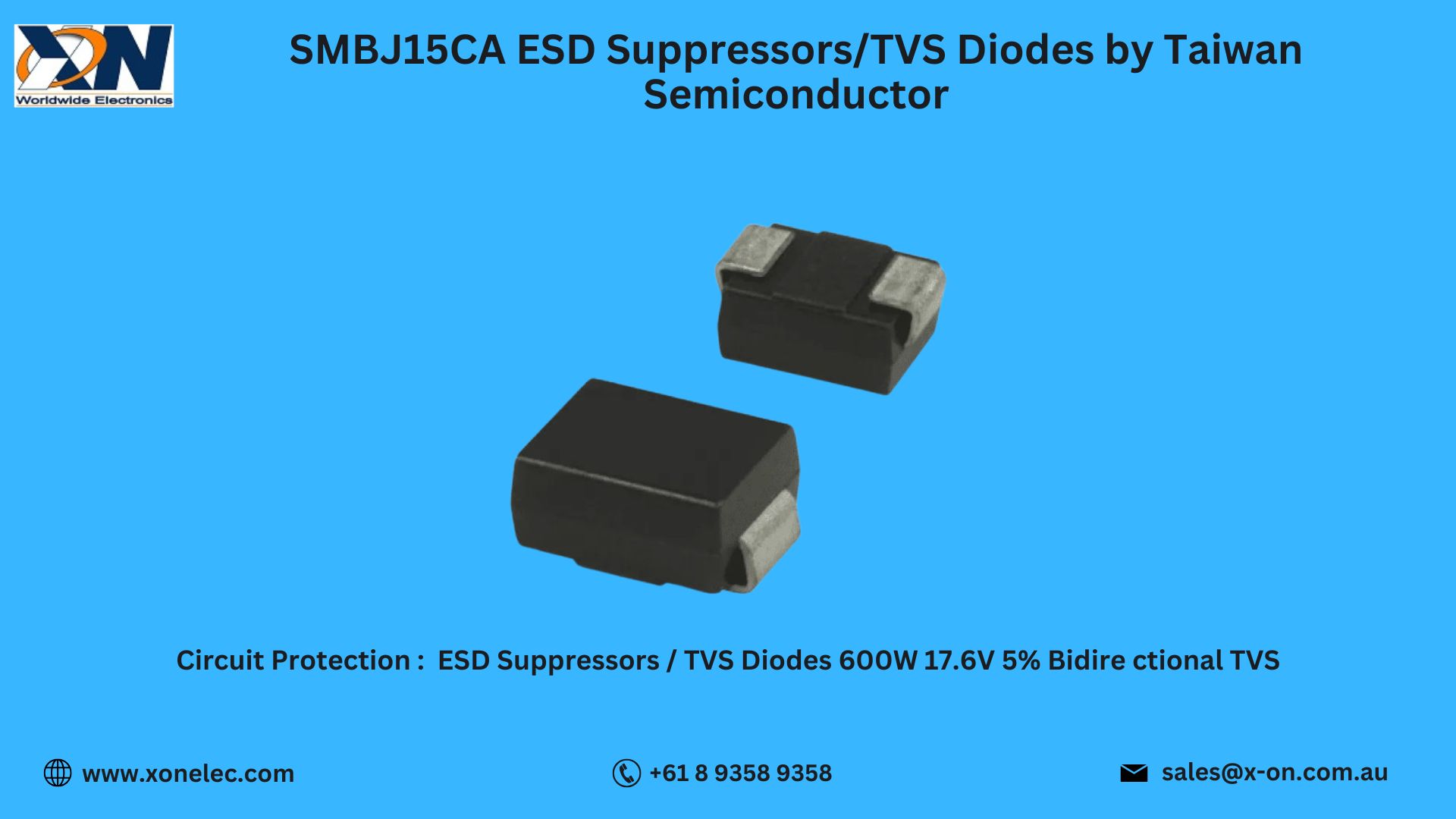

SMBJ15CA ESD Suppressors by Taiwan Semiconductor – Reliable Circuit Protection

The ESD Suppressors/TVS Diodes SMBJ15CA by Taiwan Semiconductor are high-performance bidirectional TVS diodes designed to protect sensitive electronics from electrostatic discharge (ESD) and transient voltage surges. With a 600W peak pulse power rating and ultra-fast response, the SMBJ15CA is ideal for telecom, industrial, automotive, and consumer applications needing reliable circuit protection.

This blog explains the technical specifications, key features, applications, wiring overview, and ordering details from Xon Electronics, which ships to the USA, India, Australia, Europe, and more.

1. Technical Specifications of SMBJ15CA

• Manufacturer: Taiwan Semiconductor

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

The SMBJ15CA is compact and durable, providing long-lasting circuit protection.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power for strong surge handling

• Bidirectional Design for both AC and DC circuits

• Ultra-Fast Response Time (<1 ps) for instant clamping

• Low Clamping Voltage to protect sensitive components

• Compact SMB Package for PCB space efficiency

• RoHS and Lead-Free Compliant

The SMBJ15CA ESD Suppressors/TVS Diodes provide dependable and efficient circuit protection.

3. Applications of SMBJ15CA

The SMBJ15CA is ideal for:

• Industrial Automation and Control Systems

• Telecom and Networking Equipment

• LED Drivers and Display Boards

• Automotive Electronics and Infotainment Systems

• Power Supplies and Embedded Boards

• Consumer Electronics

It is a preferred choice for high-quality circuit protection.

4. Wiring and Connection Overview

Typical wiring for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

This ensures instant voltage clamping to protect sensitive devices.

5. Use Case Scenario: Surge Protection in Telecom Devices

Scenario: A telecom device manufacturer faced frequent failures due to voltage surges.

Problem: Existing protection components failed to handle repeated transient events.

Solution: Replacing them with SMBJ15CA by Taiwan Semiconductor enhanced reliability and protection.

Result: Reduced failures, better system uptime, and improved product durability.

6. Download Datasheet for SMBJ15CA

Download SMBJ15CA Datasheet from Xon Electronics

7. Why Buy from Xon Electronics?

Order SMBJ15CA ESD Suppressors/TVS Diodes by Taiwan Semiconductor from Xon Electronics and get:

• 100% Genuine Components
• Worldwide Shipping – USA, India, Australia, Europe & more
• Competitive Bulk Pricing for OEMs
• Expert Technical Support
• Secure & Hassle-Free Ordering

Your trusted source for circuit protection components globally.

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What is SMBJ15CA used for?
It is a bidirectional TVS diode for surge and ESD suppression.

Q2. What is the power rating?
It can handle up to 600W peak pulse power.

Q3. Where is it applied?
It is ideal for telecom, industrial, LED, automotive, and power supply applications requiring circuit protection.

Q4. Is it RoHS compliant?
Yes, it is fully RoHS and lead-free compliant.

Q5. Can I buy it globally?
Yes, Xon Electronics ships to USA, India, Australia, Europe, and more.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by Taiwan Semiconductor provide fast clamping, high surge capability, and compact packaging. They are an excellent solution for reliable circuit protection in telecom, industrial, automotive, and consumer electronics. Order now from Xon Electronics, shipping worldwide to the USA, India, Australia, Europe, and beyond.
