SMBJ15CA TVS Diodes by TWGMC – ESD Circuit Protection

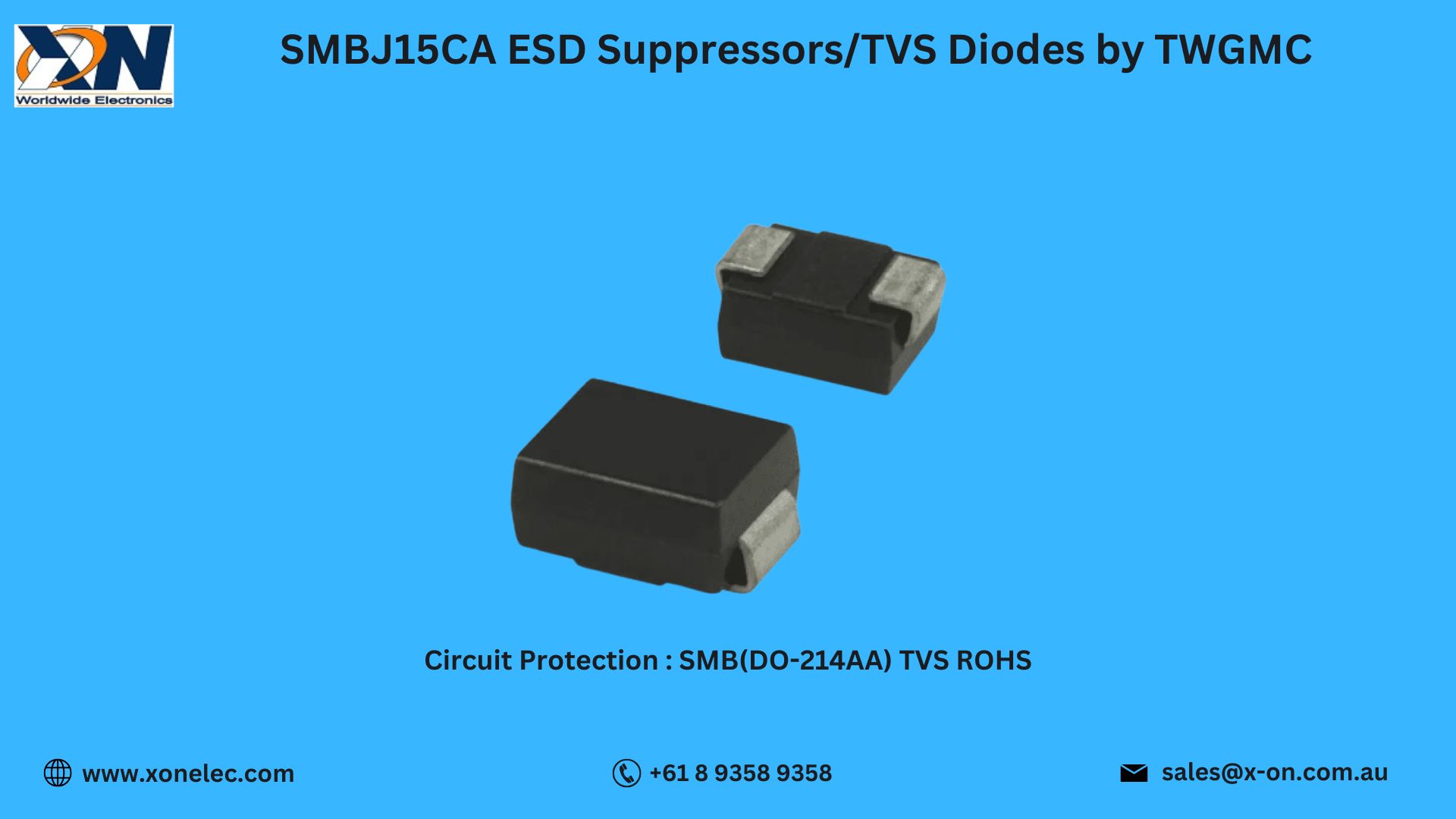

SMBJ15CA ESD Suppressors/TVS Diodes by TWGMC

In today’s high-speed electronics, protecting circuits from electrostatic discharge (ESD) and voltage transients is essential. The ESD Suppressors/TVS Diodes SMBJ15CA by TWGMC offer a reliable and efficient solution for safeguarding sensitive components. Engineered for durability and fast response, these ESD Suppressors/TVS Diodes ensure robust protection in diverse applications.

Technical Specifications of SMBJ15CA

• Manufacturer: TWGMC

• Part Number: SMBJ15CA

• Series: SMBJ

• Technology: TVS Diode (Transient Voltage Suppression)

• Reverse Standoff Voltage: 15V

• Breakdown Voltage: 16.7V (Min)

• Clamping Voltage: 24.4V

• Peak Pulse Power: 600W (10/1000µs waveform)

• Polarity: Bidirectional

• Package: DO-214AA (SMB)

• Mounting Type: Surface Mount

• RoHS Compliant: Yes

Key Features

• 600W peak pulse power capability

• Fast clamping response for optimal ESD suppression

• Compact SMB package for space-constrained designs

• Bidirectional protection suitable for AC and DC applications

• Ideal for circuit protection in telecom, consumer, and automotive sectors

These SMBJ15CA ESD Suppressors/TVS Diodes provide a strong first line of defense in a compact and economical form.

Applications

• USB and HDMI interface protection

• Power supply lines

• Consumer electronics

• Industrial control equipment

• Data and signal lines

Engineered for versatility, the SMBJ15CA ESD Suppressors/TVS Diodes by TWGMC are perfect for high-performance circuit protection in various domains.

Wiring and Connection Overview

• Soldered directly onto PCB

• Connects across protected lines

• Bidirectional protection means flexible installation

• No external components required for basic use

Use Case Example

A global electronics company used the SMBJ15CA ESD Suppressors/TVS Diodes in their new IoT sensor line. The result? Reduced RMA cases and significantly improved product longevity, especially in harsh environments.

Datasheet Download

Download the SMBJ15CA Datasheet to explore full electrical characteristics and packaging details.

Why Buy from X-ON Electronics?

• Ships globally to USA, India, Australia, Europe, and other regions

• 100% authentic ESD Suppressors/TVS Diodes

• Competitive pricing and bulk availability

• Fast dispatch and responsive customer service

FAQs – SMBJ15CA by TWGMC

Q1: Is the SMBJ15CA RoHS compliant?
Yes, it meets RoHS and REACH environmental standards.

Q2: Can I use this for automotive electronics?
Absolutely. It is suitable for automotive-grade circuit protection.

Q3: What’s the main advantage of bidirectional TVS?
It provides symmetrical protection, ideal for AC signals and reversible polarity lines.

Q4: Is it available in bulk quantities?
Yes, bulk orders can be placed via xonelec.com.

Conclusion

For engineers looking for a compact, high-performance solution for transient protection, the SMBJ15CA ESD Suppressors/TVS Diodes by TWGMC offer exceptional performance at an economical price point. With global compliance and widespread usability, these components are essential for any robust circuit protection strategy.
