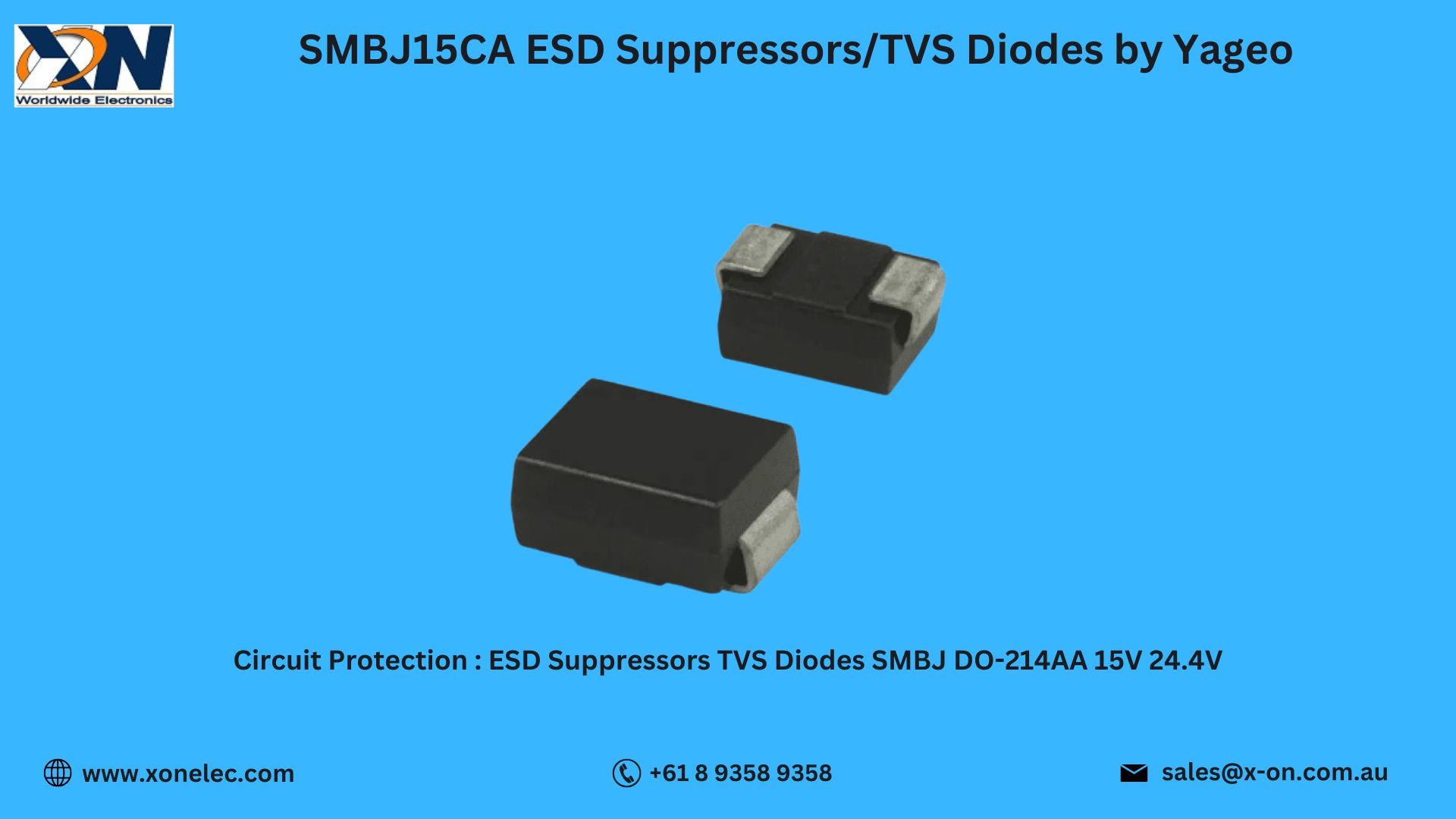

SMBJ15CA ESD Suppressors/TVS Diodes by Yageo
The ESD Suppressors/TVS Diodes SMBJ15CA by Yageo deliver robust and efficient protection for sensitive electronics against voltage spikes and transient surges. Designed to meet high-performance standards, these ESD Suppressors/TVS Diodes are a go-to solution for global manufacturers seeking advanced circuit protection.
Technical Specifications
-
Manufacturer: Yageo
-
Part Number: SMBJ15CA
-
Device Type: ESD Suppressors/TVS Diodes
-
Peak Pulse Power (10/1000µs): 600W
-
Breakdown Voltage: Min 16.7V
-
Clamping Voltage: Max 24.4V
-
Stand-off Voltage: 15V
-
Polarity: Bidirectional
-
Mounting Type: Surface Mount (SMB Package)
-
Compliance: RoHS
Key Features
-
600W peak pulse power capability
-
Bidirectional circuit protection
-
Fast response time against transient surges
-
Space-saving SMB package
-
Compliant with RoHS and environmentally safe standards
Applications
-
Ethernet and USB port protection
-
Automotive control units and infotainment systems
-
Telecom devices
-
Industrial control panels
-
Consumer electronics like TVs, tablets, and smart devices
The SMBJ15CA ESD Suppressors/TVS Diodes are reliable and widely used across industrial and consumer sectors in regions like the USA, India, Australia, Europe, and beyond.
Wiring and Connection Overview
-
Surface-mounted, two-terminal design
-
Easily incorporated into high-density PCBs
-
Ideal for reflow soldering processes
-
Minimal additional circuitry required
Use Case Example
An electronics manufacturer in Australia integrated SMBJ15CA ESD Suppressors/TVS Diodes by Yageo into its industrial communication modules to protect from voltage surges caused by nearby machinery. This significantly reduced device failure rates and extended product life in rugged environments, including field deployments across Europe and India.
Datasheet Download
Download SMBJ15CA Datasheet by Yageo
Includes complete specifications, performance graphs, and integration tips.
Why Choose X-ON Electronics?
-
Global shipping: USA, India, Australia, Europe, and more
-
Guaranteed original components
-
Fast and secure delivery
-
Comprehensive support for engineers and procurement teams
FAQs
Q1: Can SMBJ15CA be used for automotive-grade designs?
Yes, its performance and reliability make it suitable for automotive use.
Q2: What makes this diode ideal for bidirectional applications?
Its symmetrical clamping voltage and polarity protection.
Q3: Is this TVS diode RoHS-compliant?
Yes, it complies with RoHS environmental standards.
Q4: What's the main use of this diode?
Protecting electronic circuits from ESD and voltage surges.
Conclusion
The SMBJ15CA ESD Suppressors/TVS Diodes by Yageo stand as a trusted solution in the realm of circuit protection, delivering superior surge immunity, compact design, and long-term reliability. With growing adoption in industrial and consumer devices across USA, India, Australia, Europe, and other regions, this component is essential for modern electronics.
